KX Mexico Models

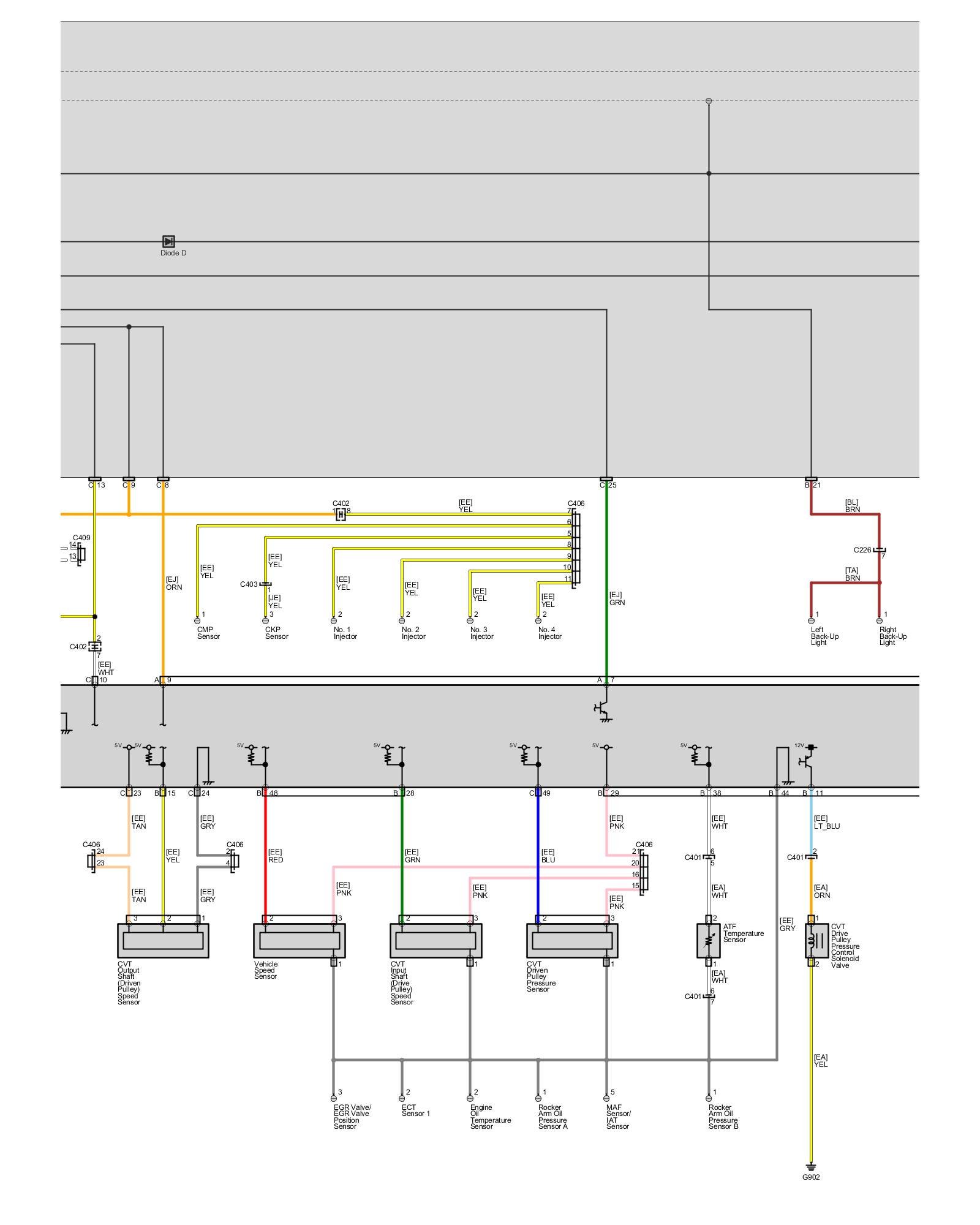

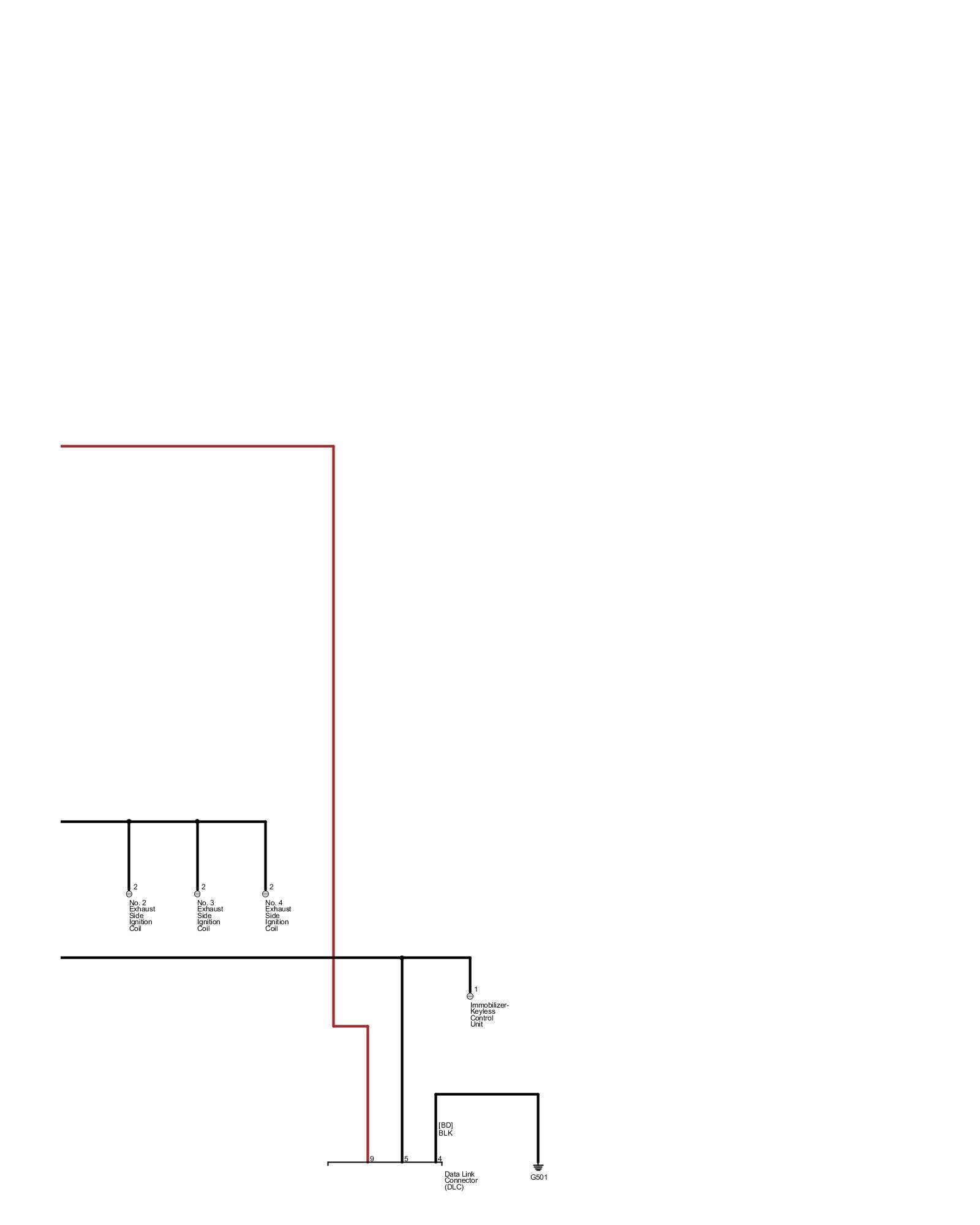

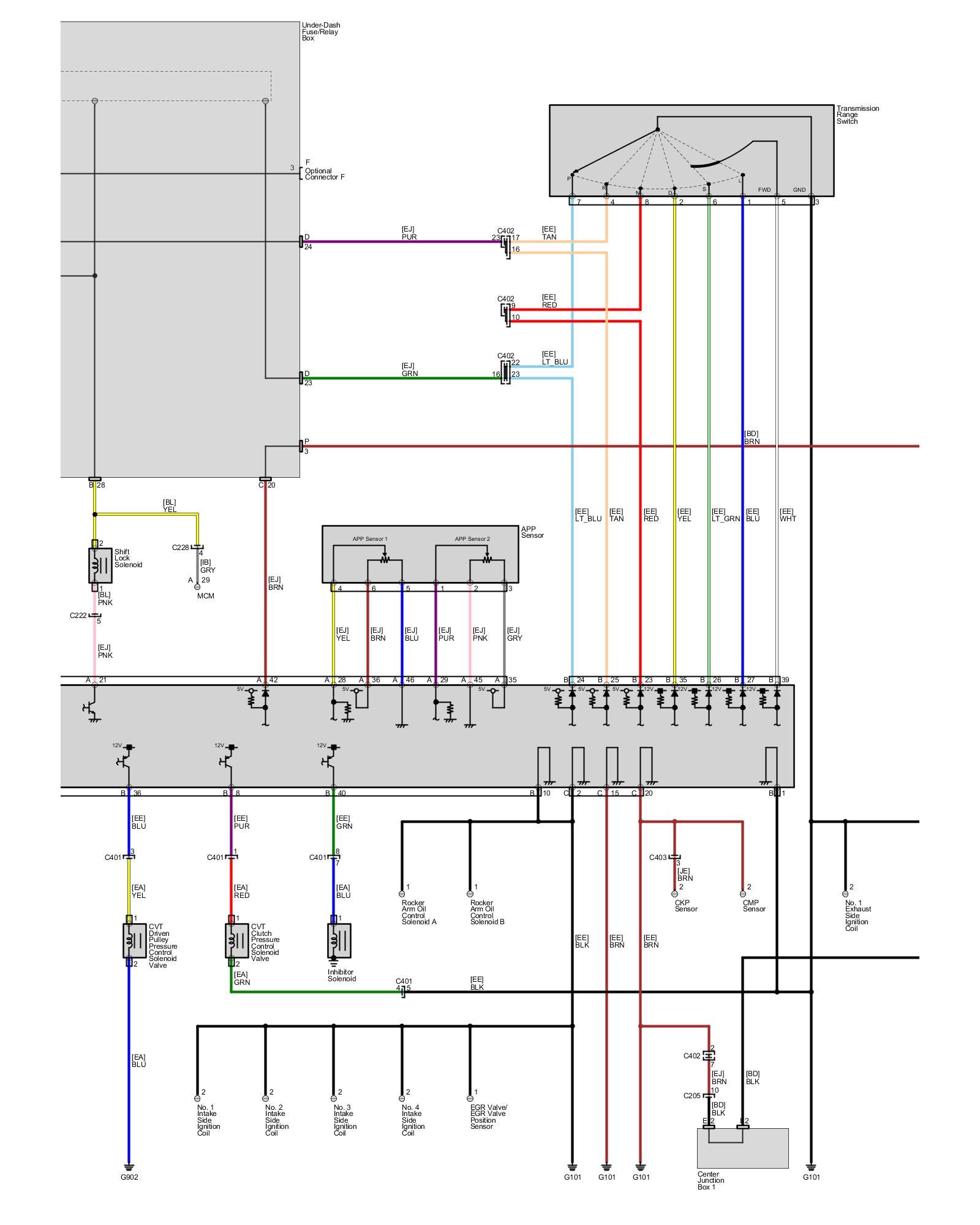

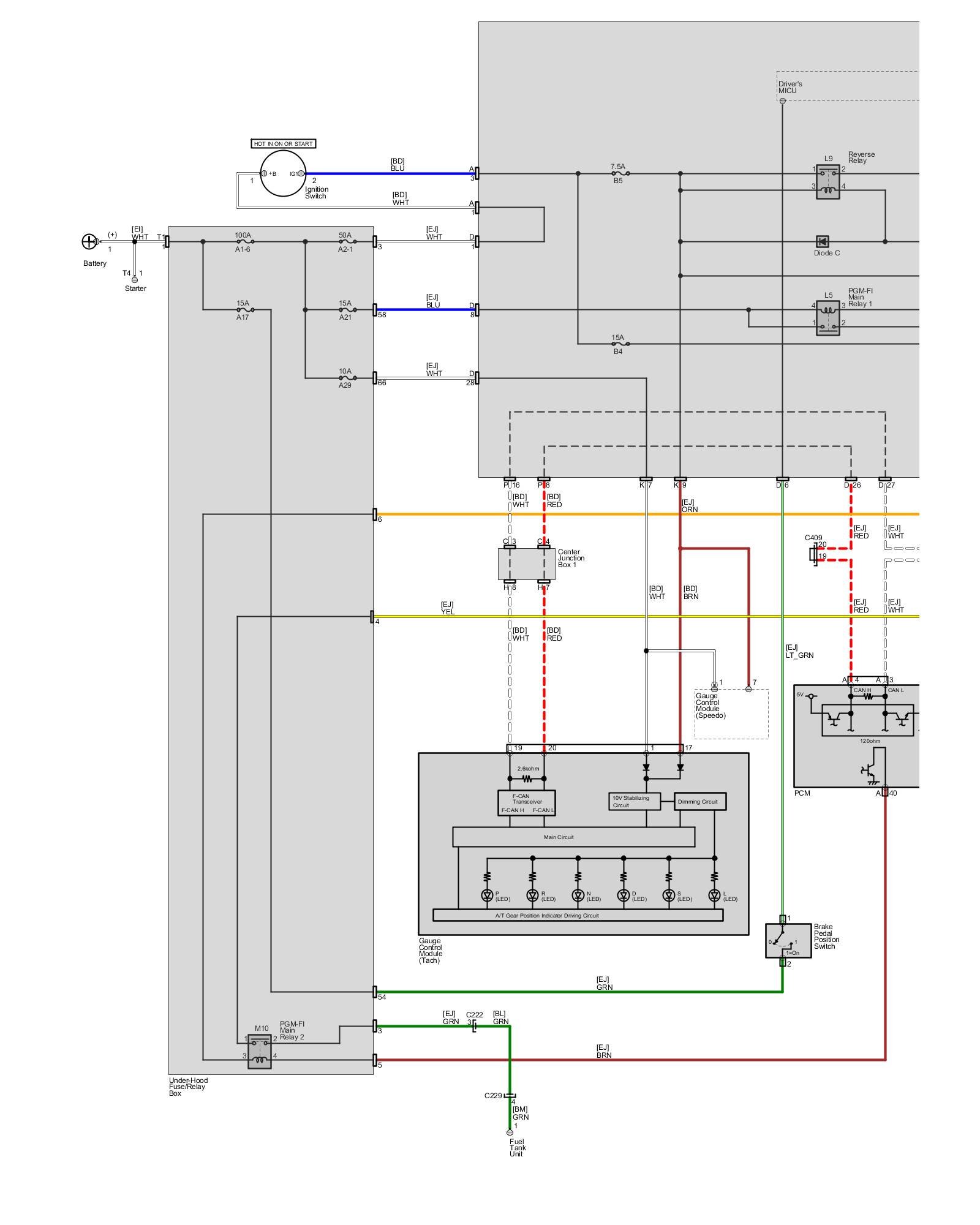

Transaxle - CVT Control System

KX Mexico Emissions, 4-door MX, FB4, CVT Transmission
