Connecting Rod Nut/Bolt Torque

Torque the connecting rod bolts to 10 Nm (1.0 kgfm, 7 lbft).

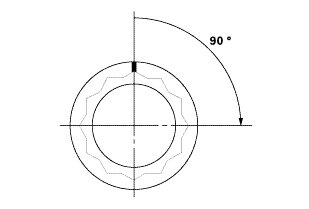

Tighten the connecting rod bolts an additional 90 °.

NOTE: Remove the connecting rod bolt if you tightened it beyond the specified angle, inspect the connecting rod bolts. Do not loosen it back to the specified angle.
