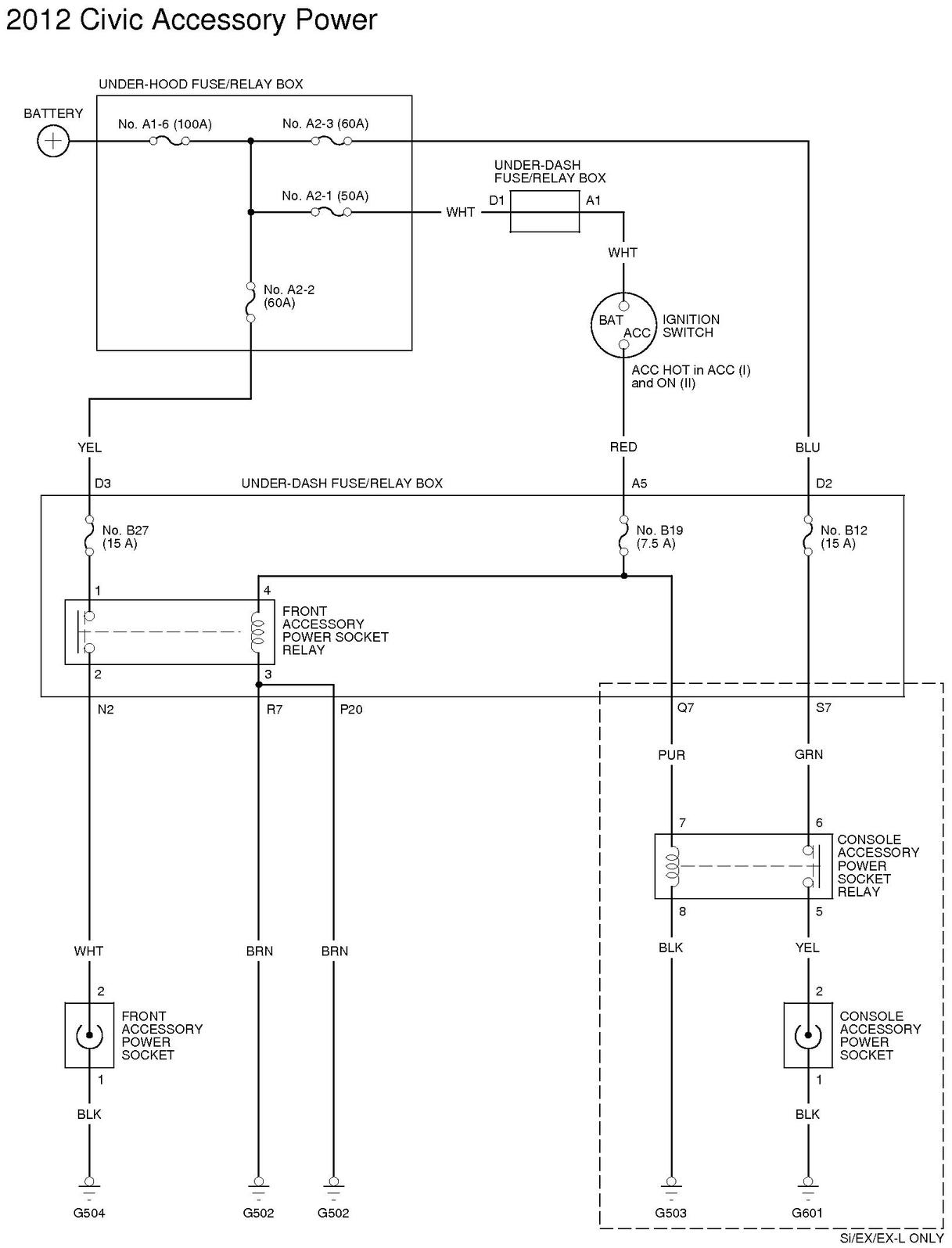

Home >> Honda >> 2012 >> Civic Si L4-2.4L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Auxiliary Power Outlet >> Diagrams >> Electrical Diagrams >> Accessory Power Sockets Circuit Diagram
