KX Mexico Models

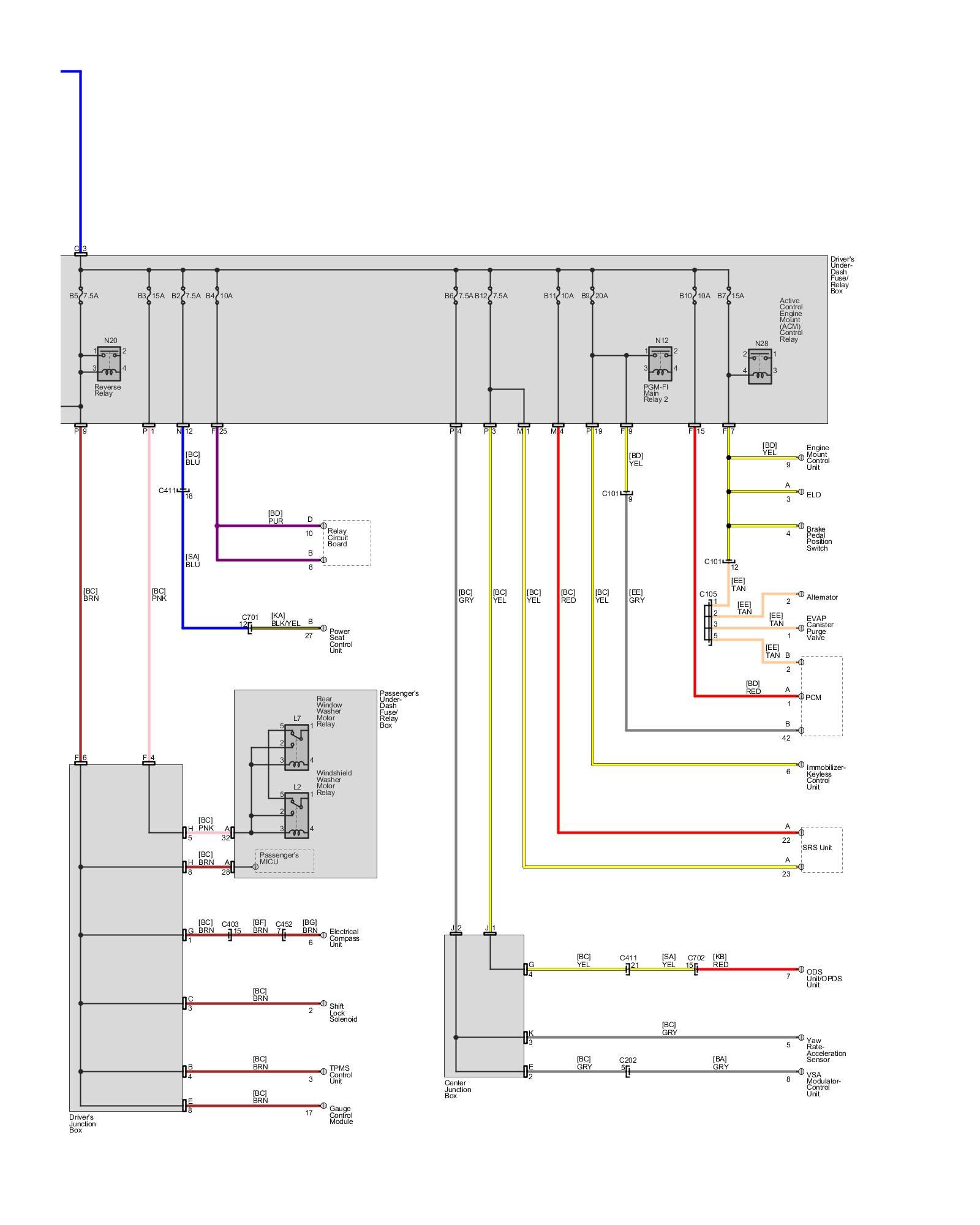

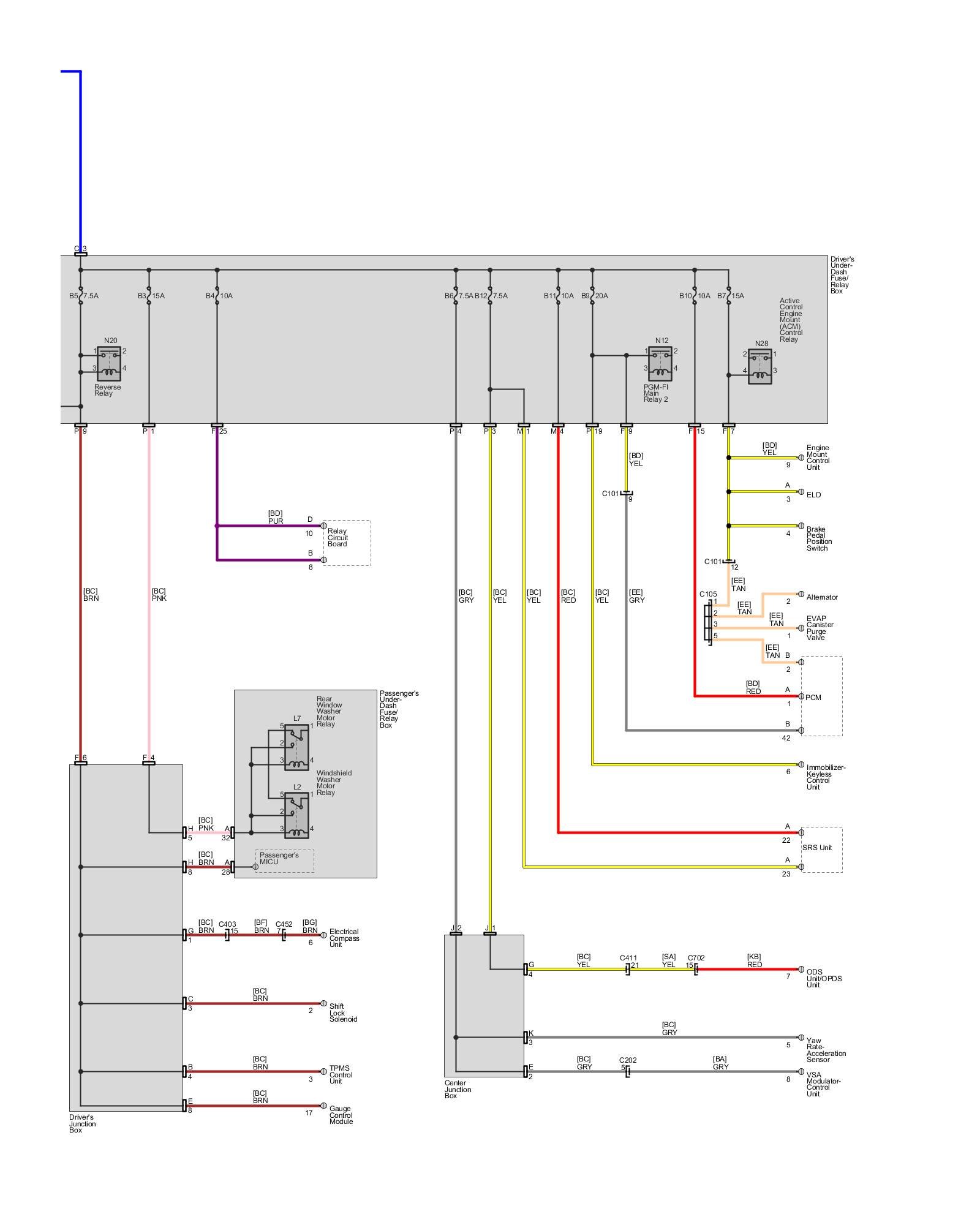

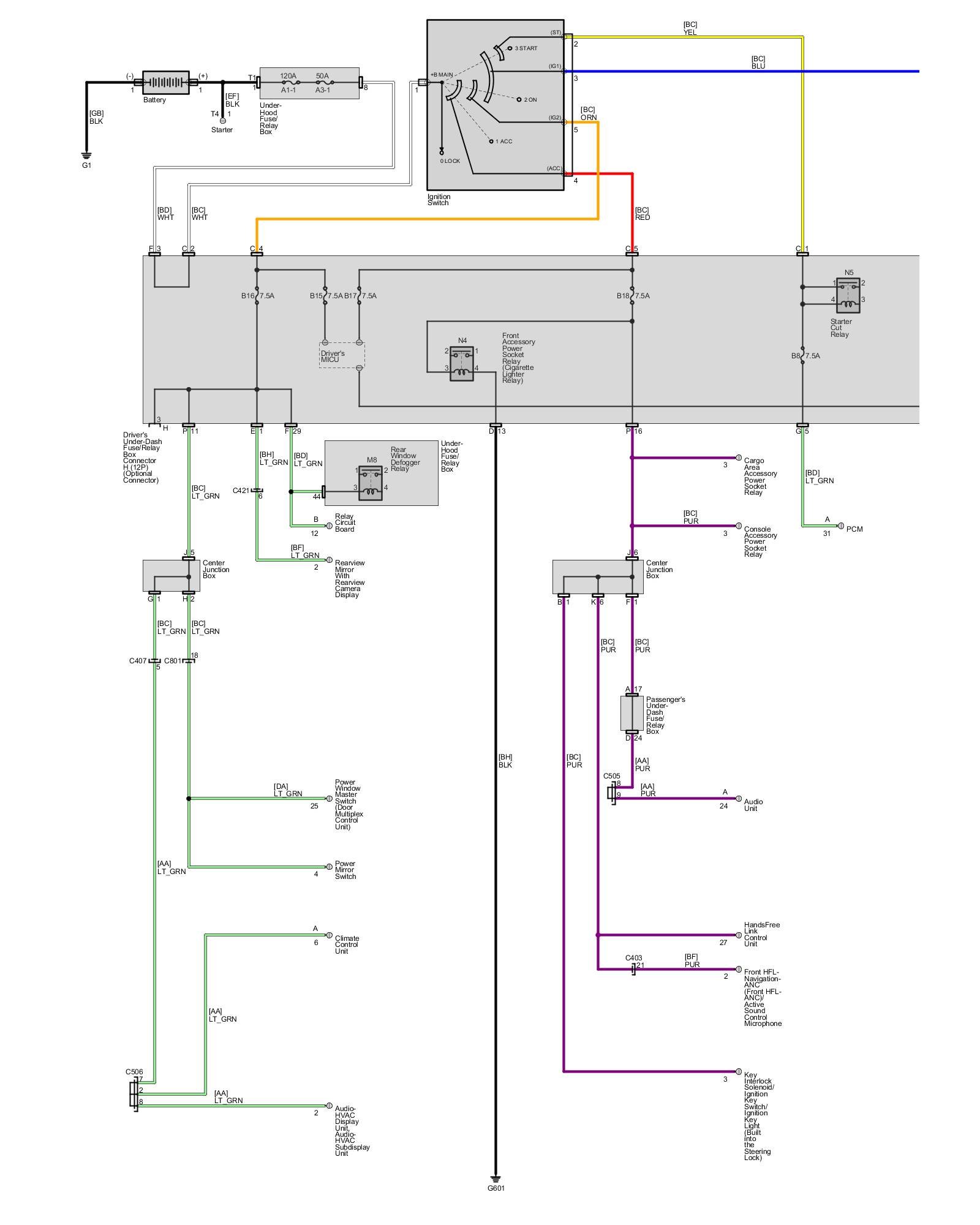

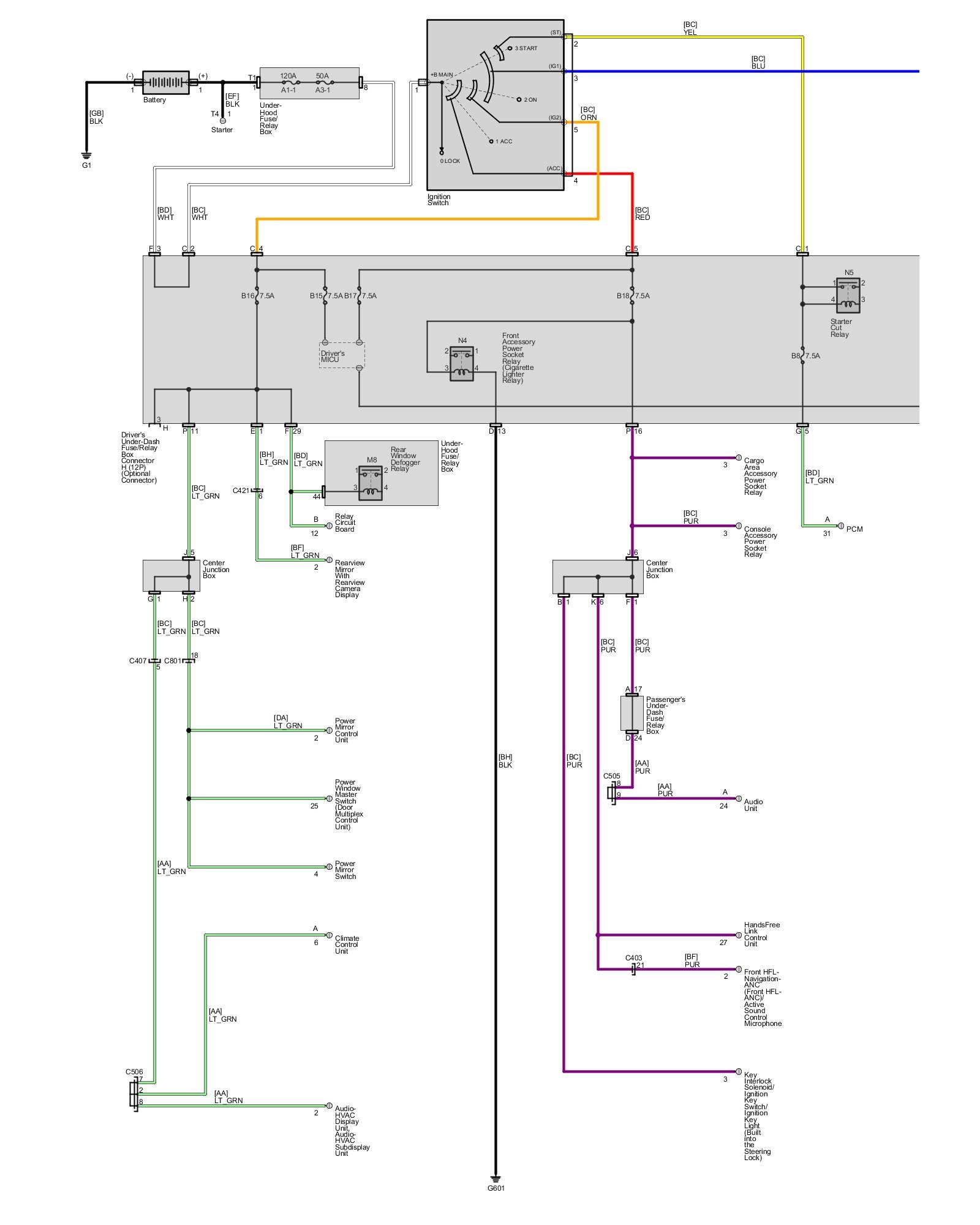

Engine - Power Supply

KX Mexico Emissions, 5-door EX, TF1(2WD), 5AT Transmission









KX Mexico Emissions, 5-door EX-L, TF1(2WD), 5AT Transmission
KX Mexico Emissions, 5-door EX-L, TF2(4WD), 5AT Transmission
