Rear Fender Liner: Service and Repair

Rear Inner Fender Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the body.

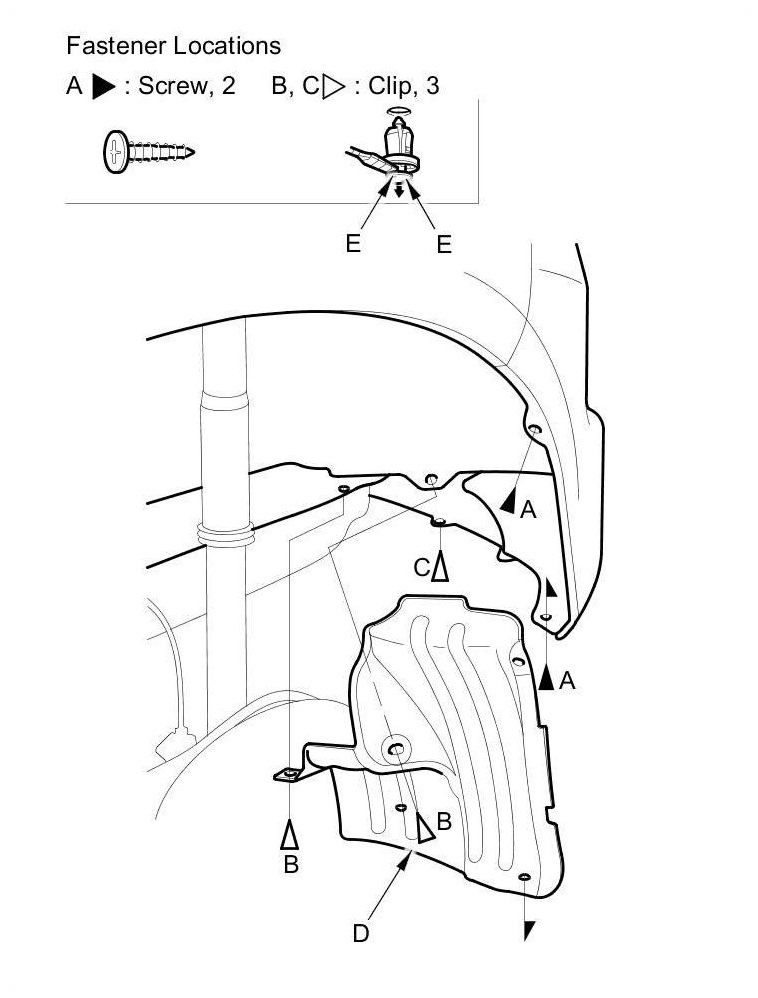

1. Remove the screws (A) and the clips (B, C), then remove the rear inner fender (D).

NOTE: To release the clips, pry up on the center pin at the notch (E).

Left side





Right side





2. Install the cover in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
