Front Crossmember Brace Replacement




Front Crossmember Brace Replacement

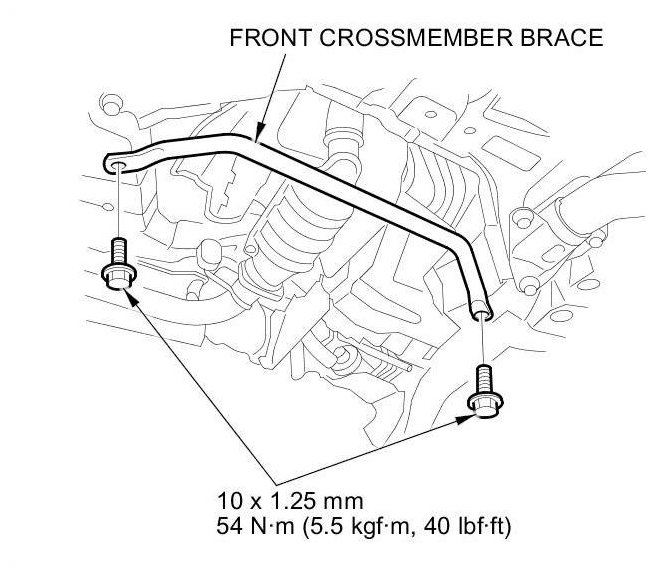

Front Crossmember Brace Torque

NOTE: Take care not to scratch the body.
