Brake Pedal Assy: Service and Repair

Brake Pedal Replacement

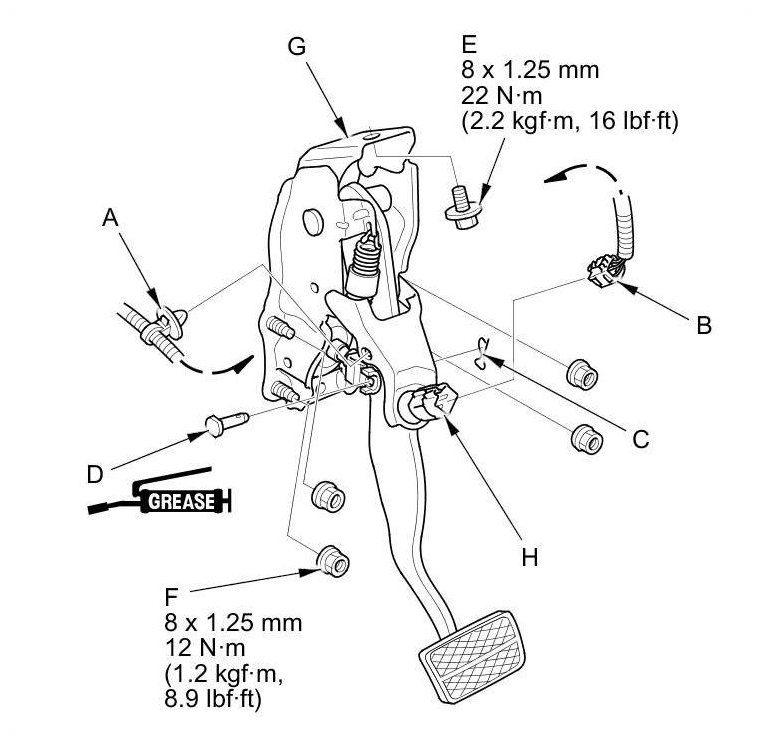

1. Remove the driver's dashboard undercover Driver's Dashboard Undercover Removal/Installation.

2. Remove the harness clip (A).





3. Disconnect the brake pedal position switch connector (B).

4. Remove the lock pin (C) and clevis pin (D).

NOTE: During installation, apply multipurpose grease to the clevis pin in the brake pedal.

5. Remove the brake pedal bracket mounting bolt (E) and nuts (F).

6. Remove the brake pedal with bracket (G).

7. Remove the brake pedal position switch (H) by turning it counter clockwise.

8. Install in the reverse order of removal.

9. Do the brake pedal and brake pedal position switch adjustment Adjustments.
