Air Bag Deactivation Switch
Air Bag Deactivation Switch

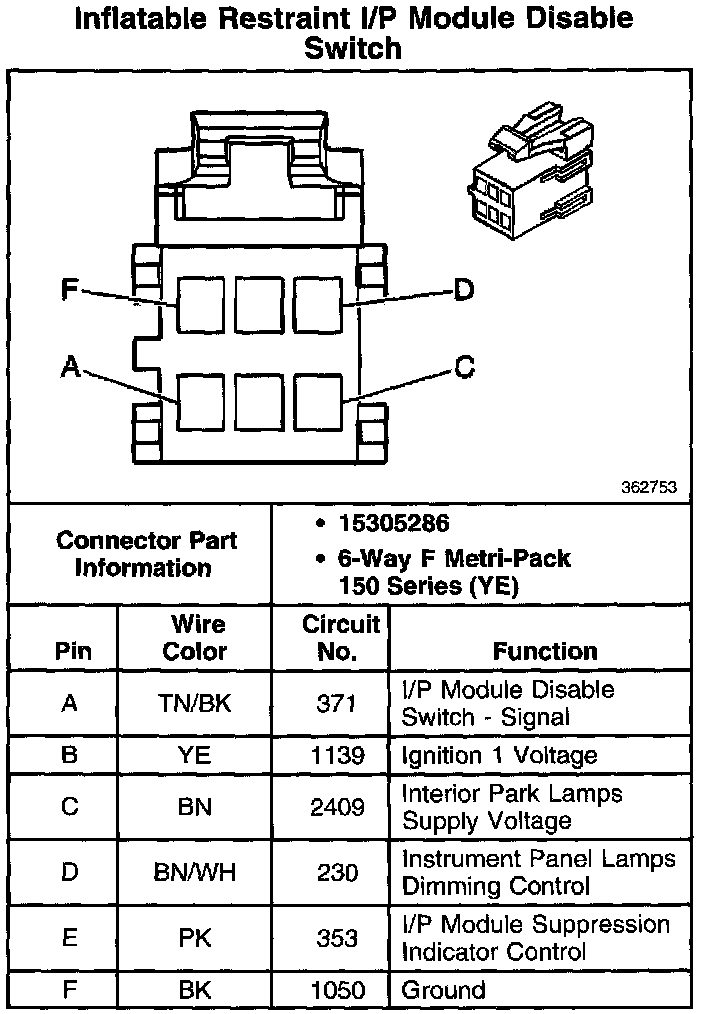

Inflatable Restraint Instrument Panel Module Disable Switch:
