Clearance Lamp

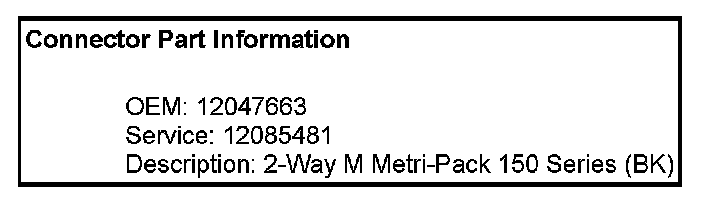

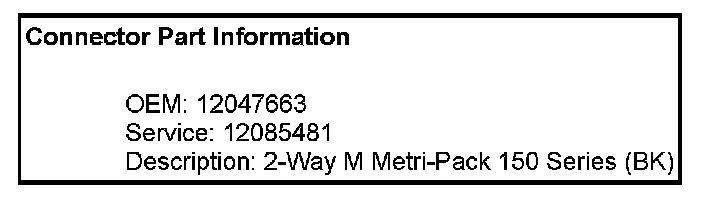

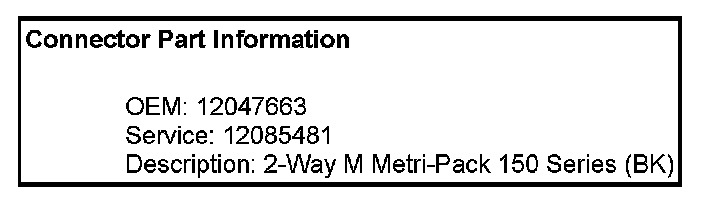

Lighting Systems Connector End Views

Clearance Lamp - LF

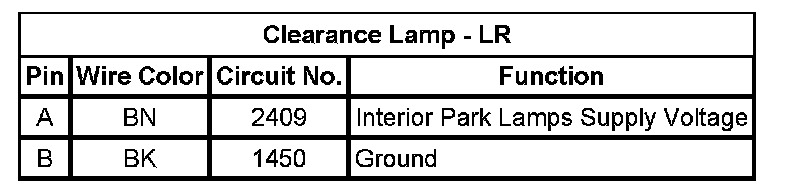

Clearance Lamp - LR

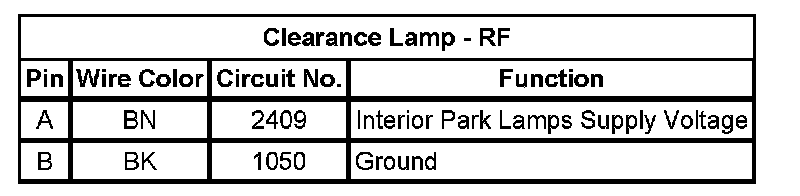

Clearance Lamp - RF

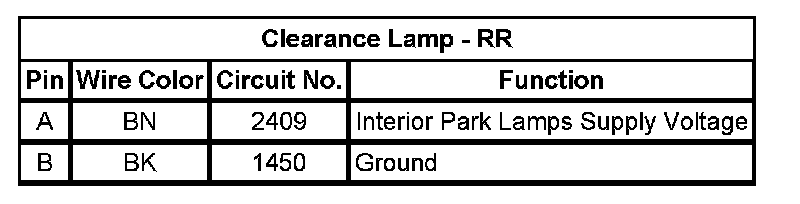

Clearance Lamp - RR
