Engine Controls Schematic 9



Engine Controls Schematics

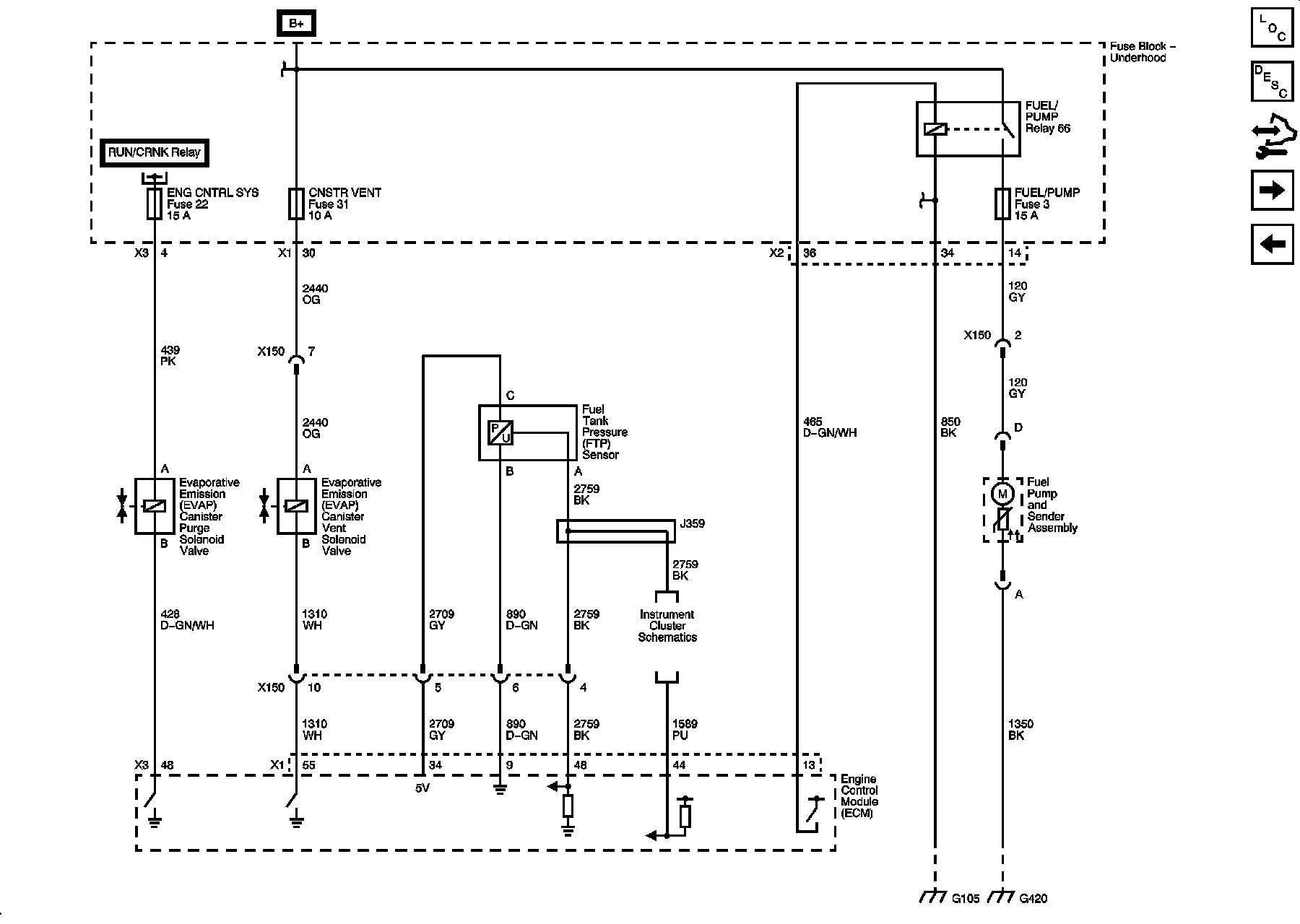

Fuel Controls - Fuel Pump and EVAP Controls
