Home
>>
Hummer
>>
2009
>>
H2 V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heated Glass Element
>>
Rear Window Defogger Grid X2 (SUT)
Rear Window Defogger Grid X2 (SUT)

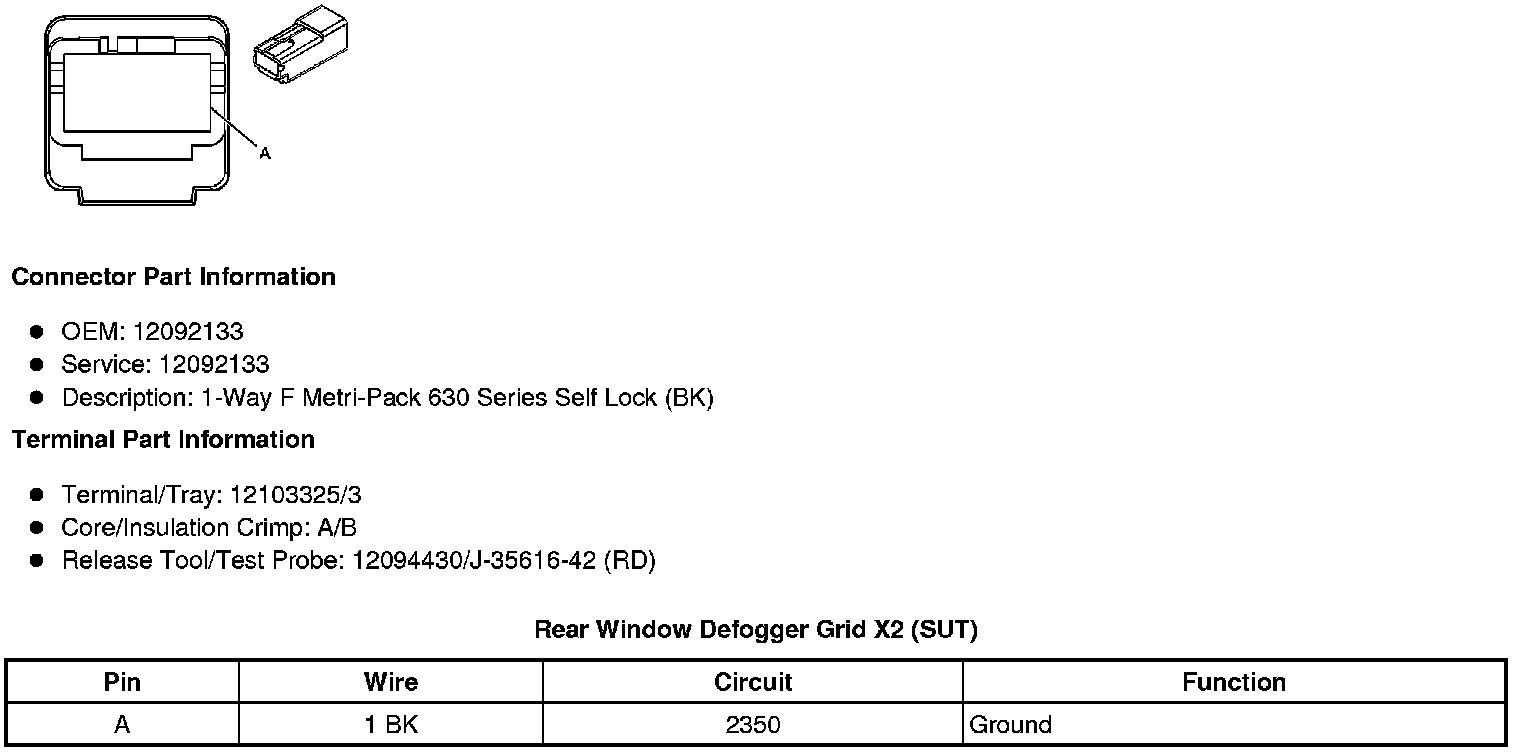

Component Connector End Views
Rear Window Defogger Grid X2 (SUT)
