Power Seat Motor Position Sensor
>>
Seat Front Vertical Motor Position Sensor - Driver
Seat Front Vertical Motor Position Sensor - Driver

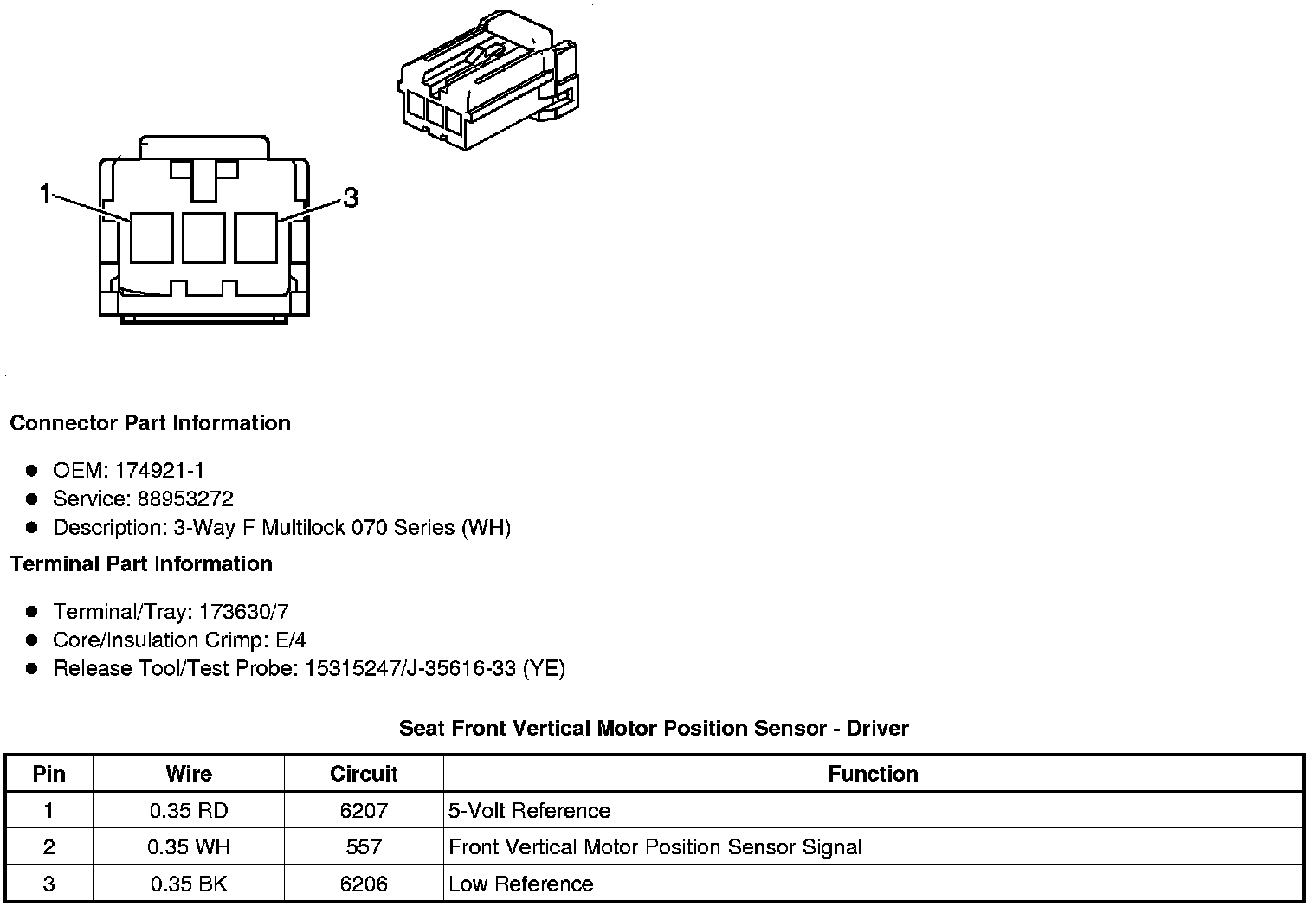

Component Connector End Views
Seat Front Vertical Motor Position Sensor - Driver
