Power Seat Motor Position Sensor
>>
Seat Lumbar Horizontal Motor Position Sensor - Driver
Seat Lumbar Horizontal Motor Position Sensor - Driver

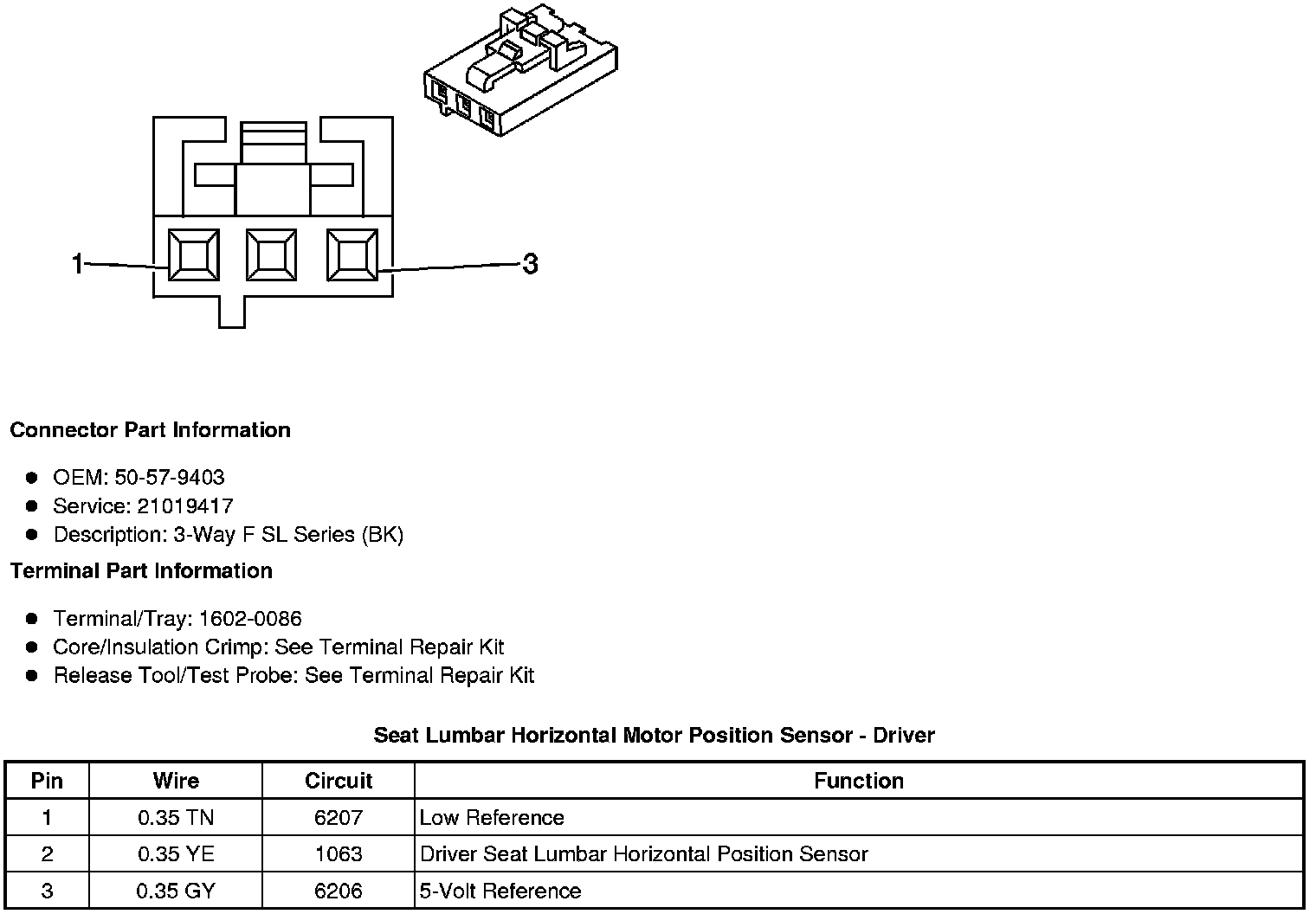

Component Connector End Views
Seat Lumbar Horizontal Motor Position Sensor - Driver
