Power Seat Motor Position Sensor
>>
Seat Recline Position Sensor - Driver
Seat Recline Position Sensor - Driver

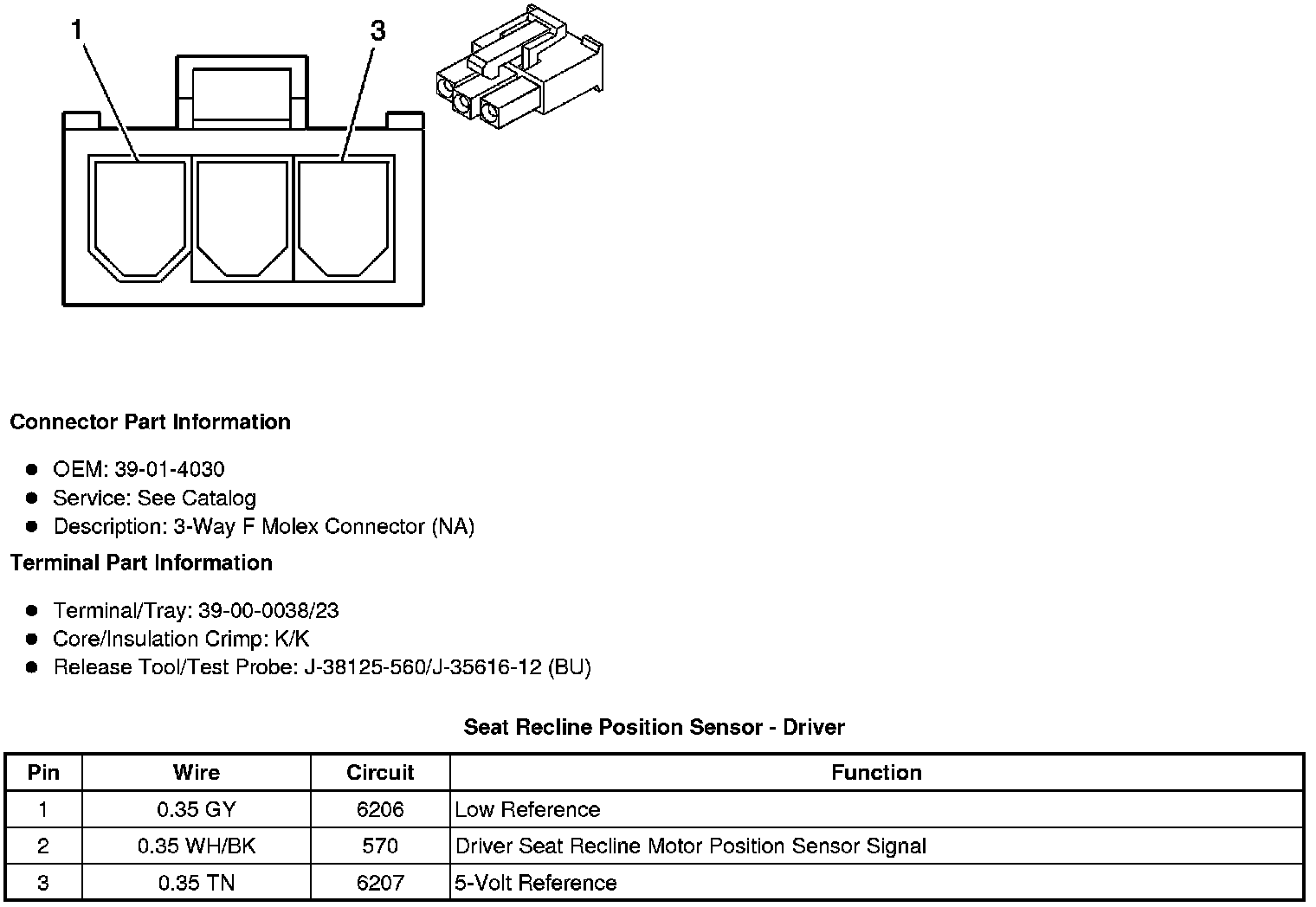

Component Connector End Views
Seat Recline Position Sensor - Driver
