Air Register: Service and Repair

Rear Floor Air Outlet Replacement

Removal Procedure

1. Remove the console. Refer to Front Floor Console Replacement (Front Floor Console Replacement).

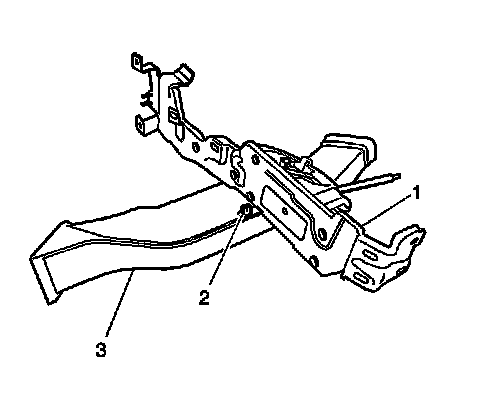

2. Remove the push pin (1).




3. Remove the air outlet duct-rear (3) from the console support bracket (1).

Installation Procedure




1. Install the air outlet duct-rear (3) to the console support bracket (1).




2. Install the push pin (1).
3. Install the console. Refer to Front Floor Console Replacement (Front Floor Console Replacement).
