Power Distribution Schematic 2




Power Distribution Schematics

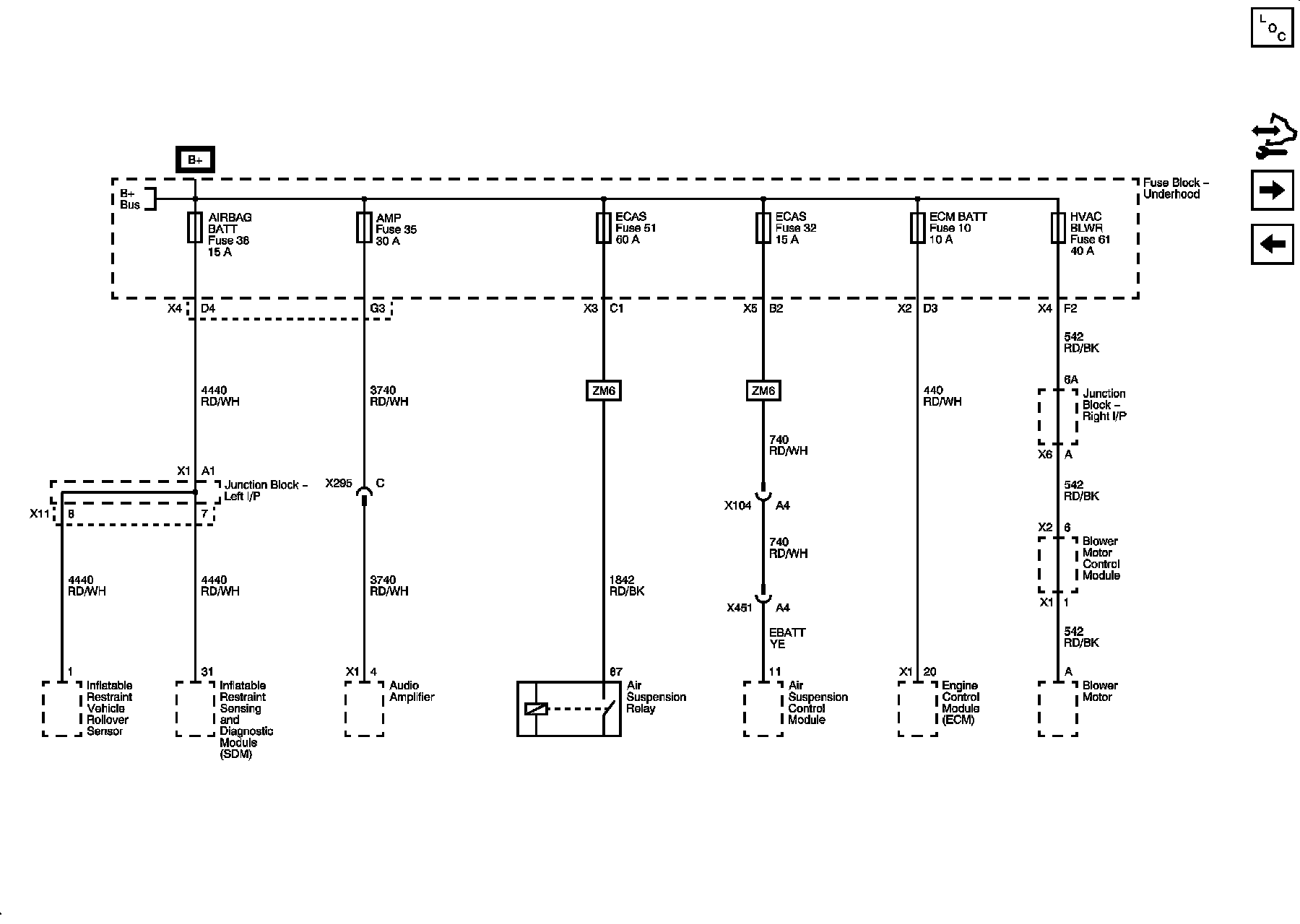

B+ Bus 1 of 5

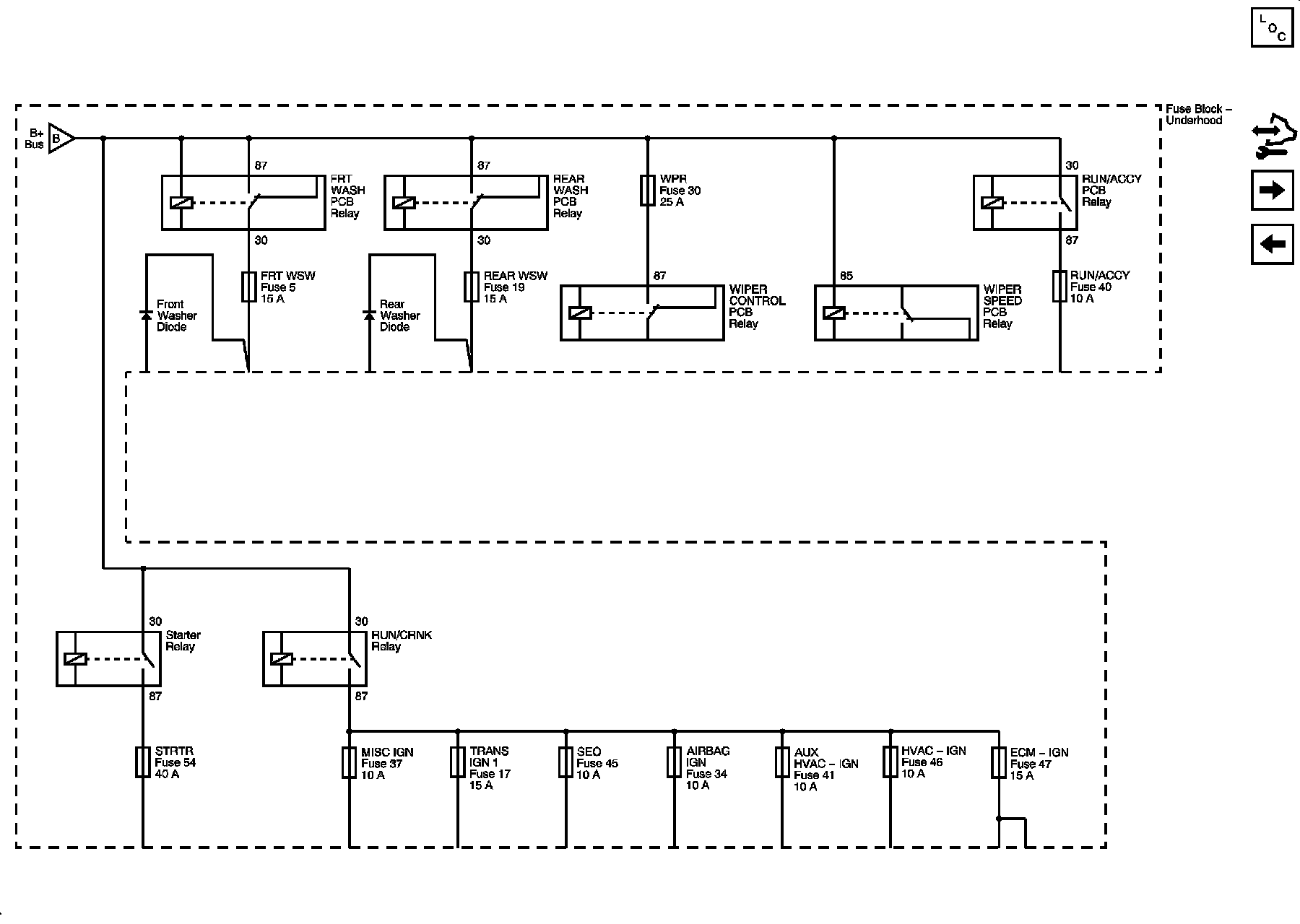

B+ Bus 2 of 5

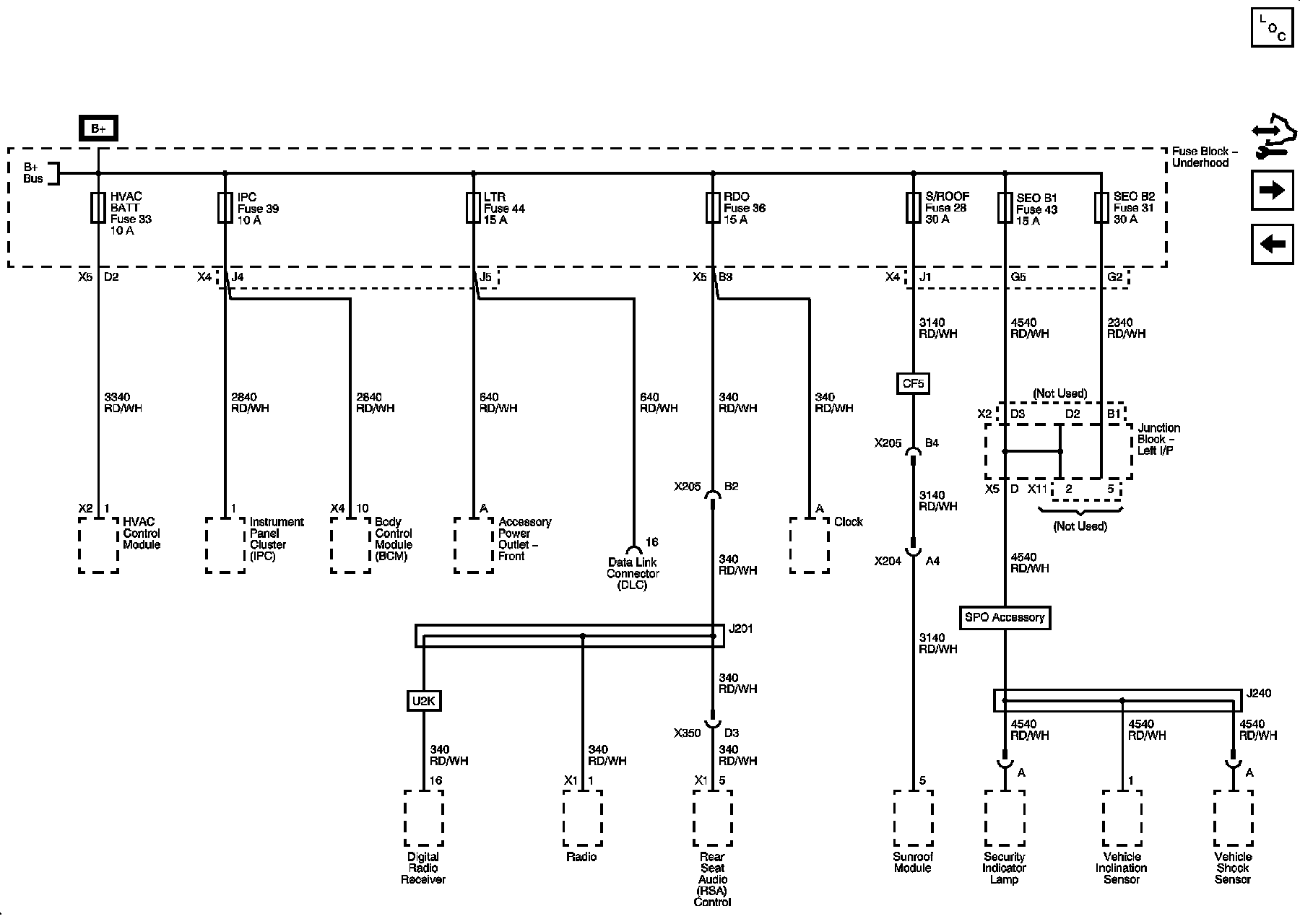

B+ Bus 3 of 5

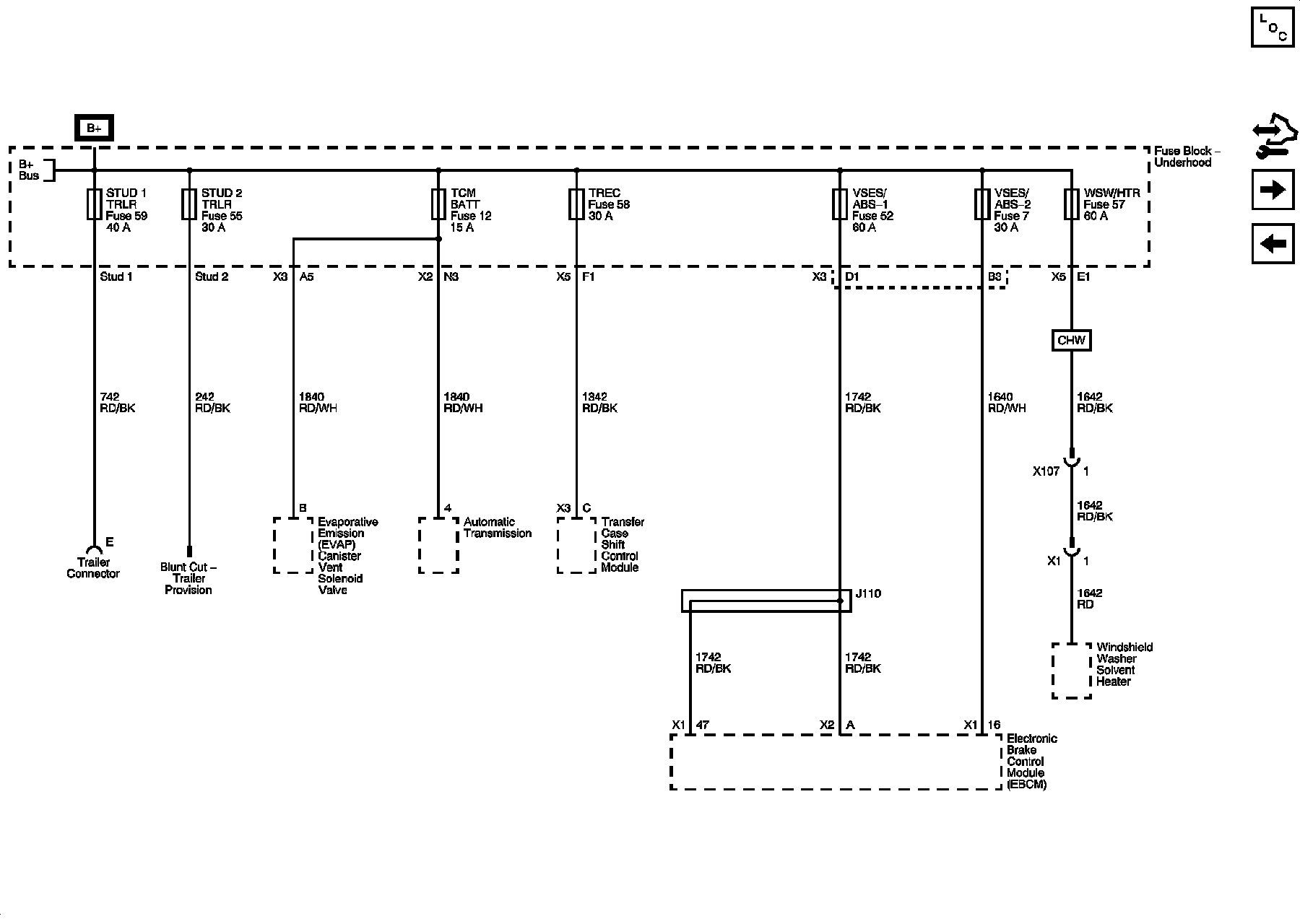

B+ Bus 4 of 5





B+ Bus 5 of 5
