Home >> Hummer >> 2009 >> H2 V8-6.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Schematics >> Power Distribution Schematic 9

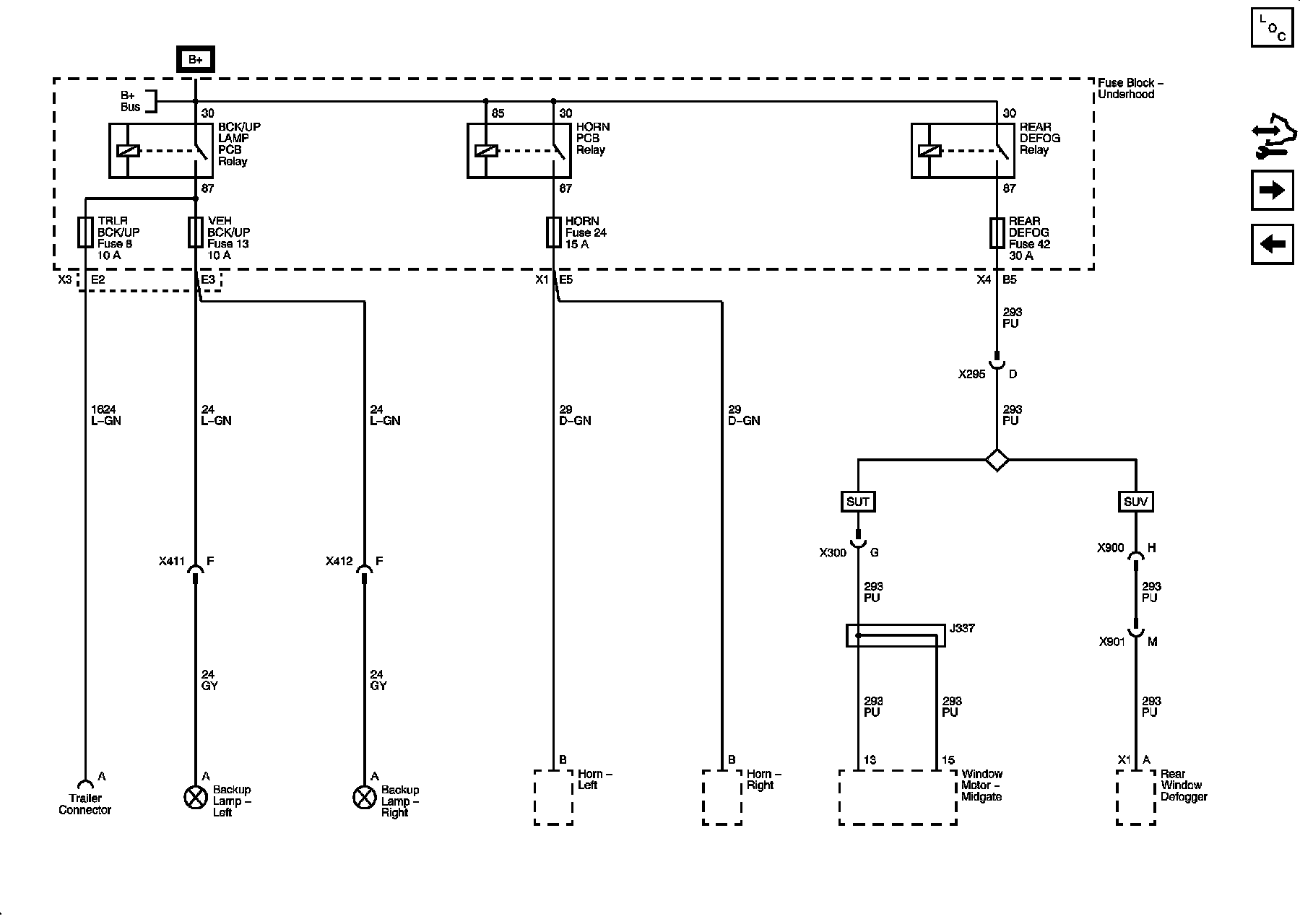

Power Distribution Schematic 9




Power Distribution Schematics

VEH BCK/UP, HORN and REAR DEFOG Fuses
