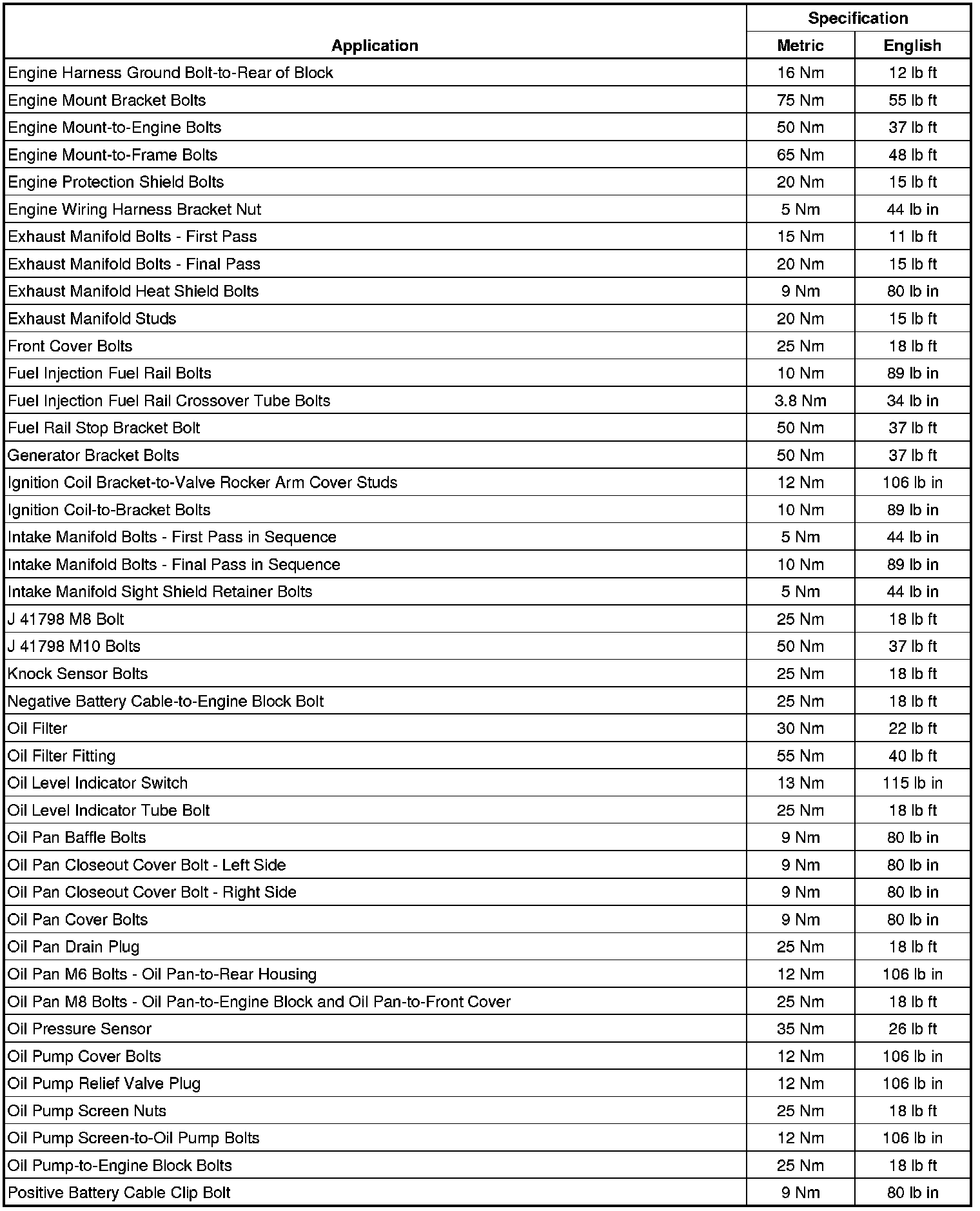

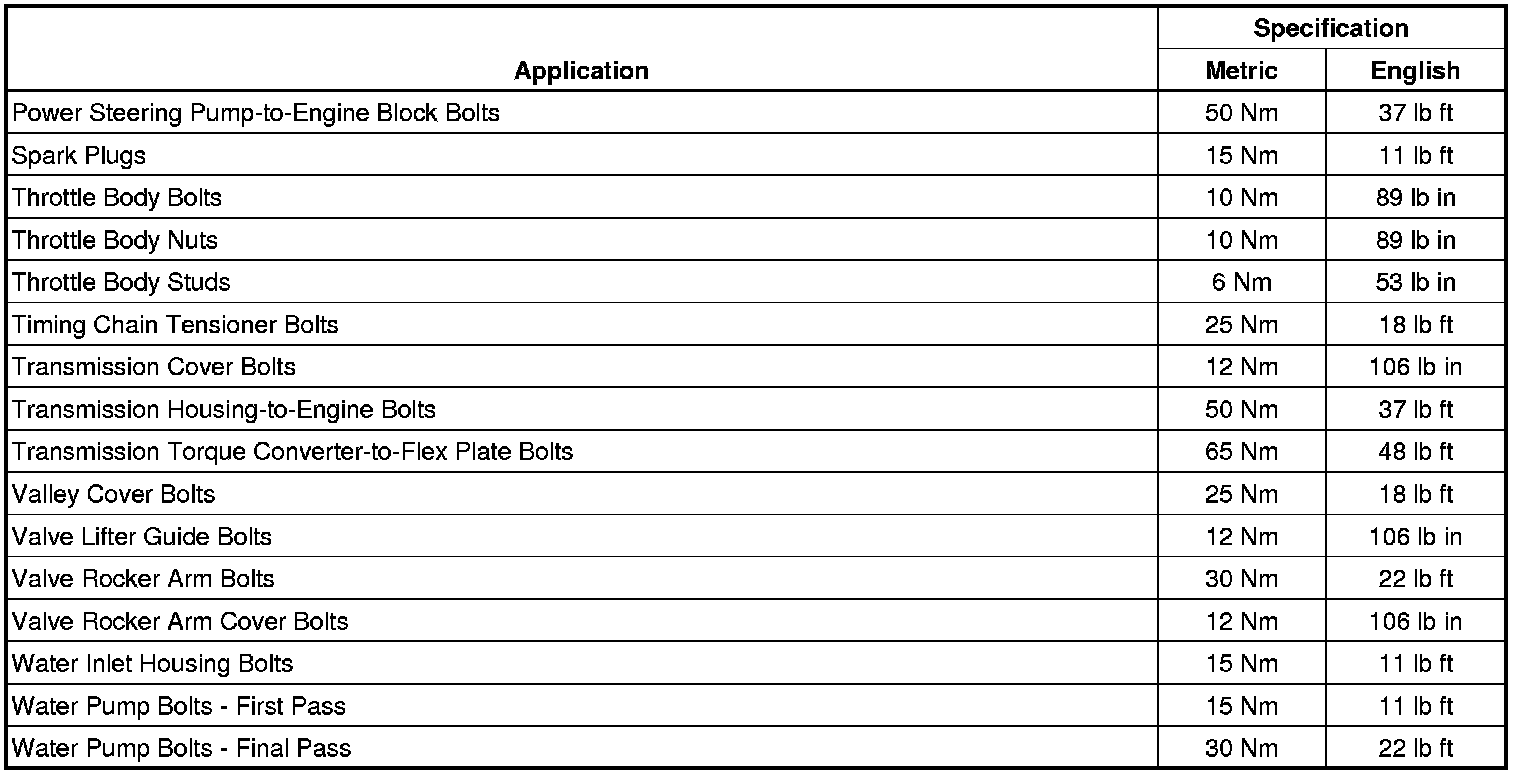

Fastener Tightening Specifications




Fastener Tightening Specifications













The cylinder head bolts are of a torque-to-yield design and are NOT to be reused.
