Wheel Alignment Specification - Manual Correction

9230hyundai01

Group
CHASSIS

Number
92-50-001

Date
MARCH, 1992

Model
ELANTRA


Subject

ELANTRA WHEEL ALIGNMENT SPECIFICATION TOLERANCES


The front wheel alignment specifications on page 54-3 and the rear wheel alignment specifications on page 55-6 of the 1992 Elantra Shop Manual, part number JS-901102, and pages 54-2 & 55-1 in the 1992 Elantra Service Data Book, part number JA-900901, do not contain the proper tolerances.

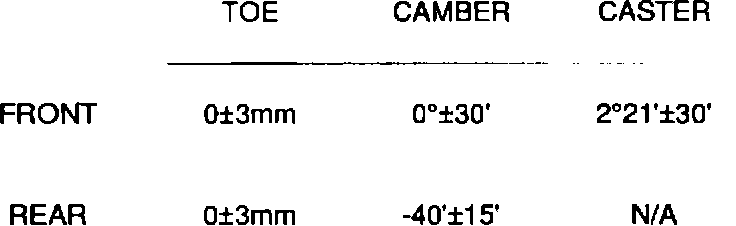

1992 ELANTRA WHEEL ALIGNMENT SPECIFICATIONS WITH TOLERANCES


NOTE:
The rear wheel alignment is set at the factory and cannot be adjusted. If the toe or camber is not within specification, inspect for damaged parts and replace as necessary.
