Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
1994
>>
Elantra L4-1.8L
>>
Parts and Labor
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Images
Images

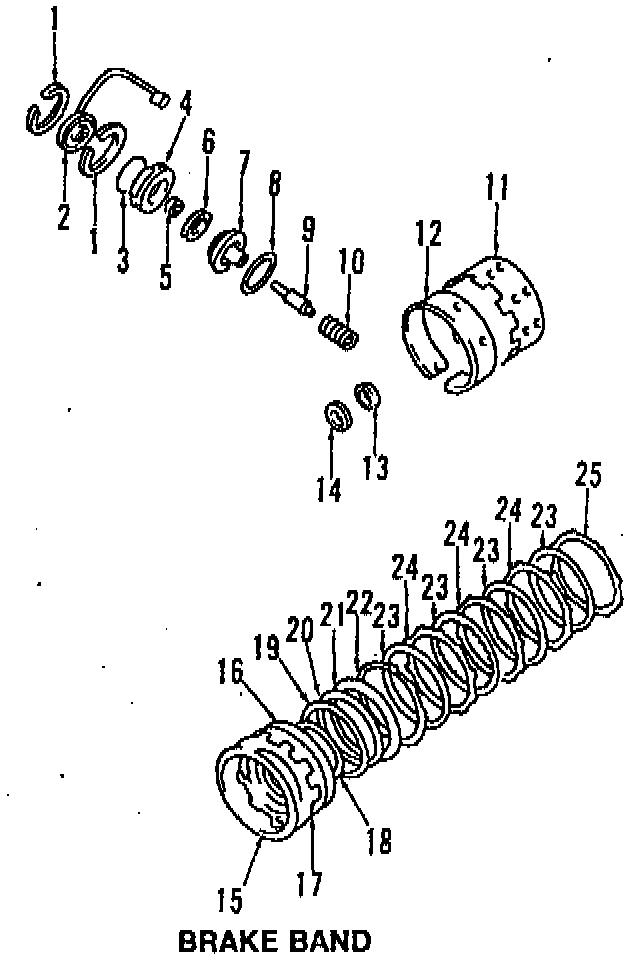

Brake Band:

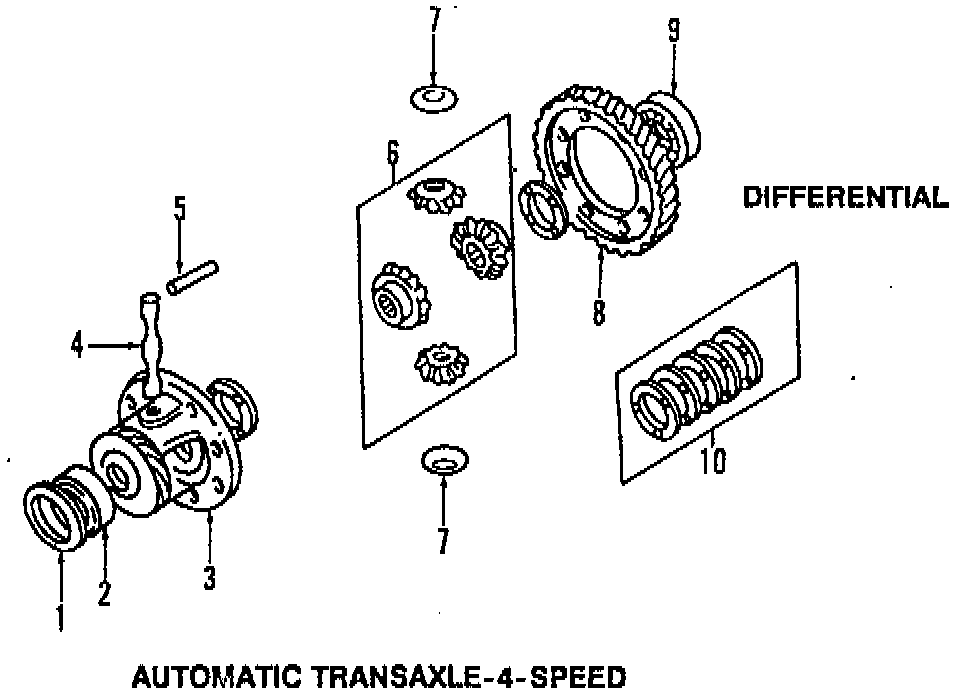

Differential:

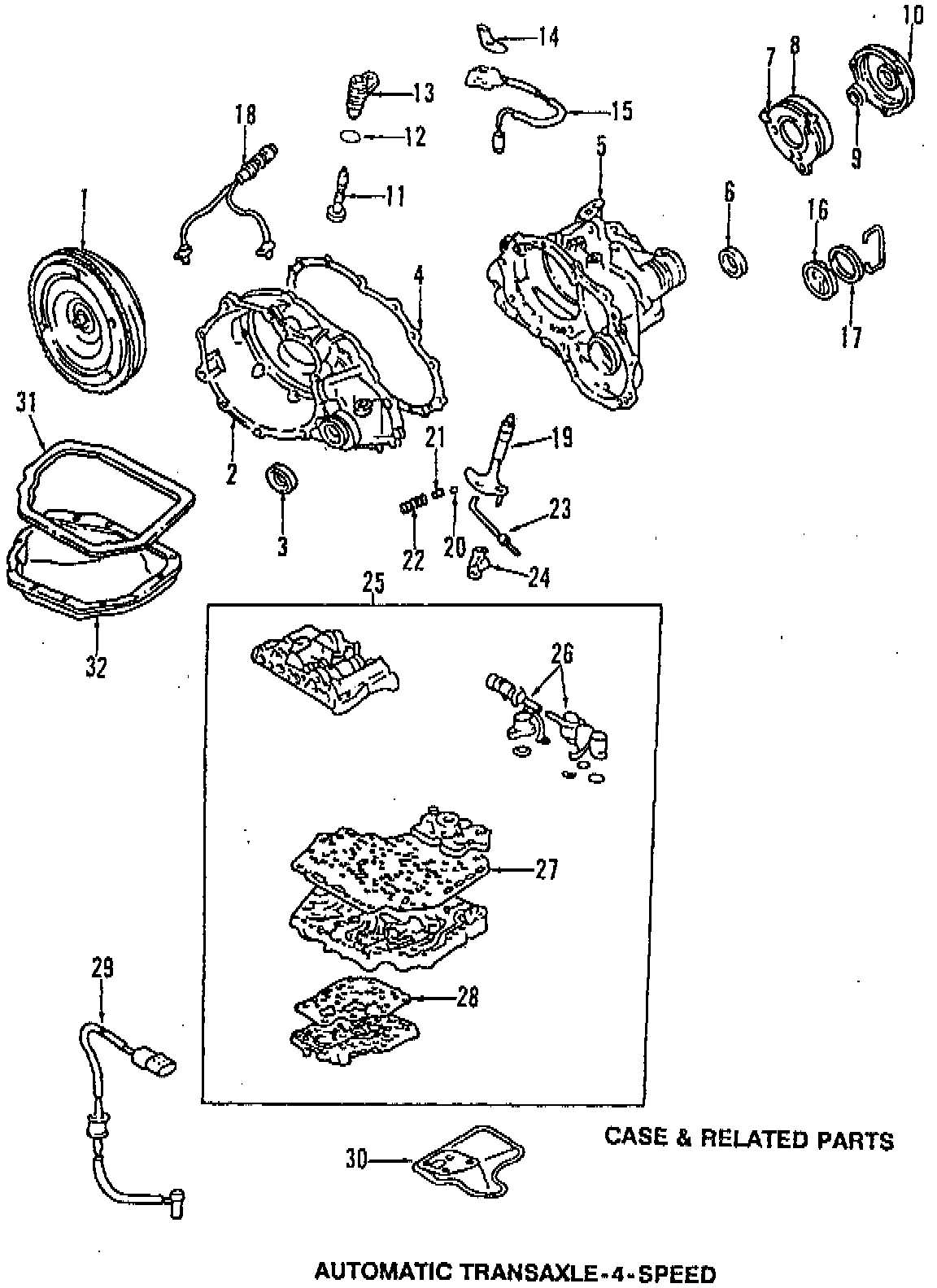

Case & Related Parts:

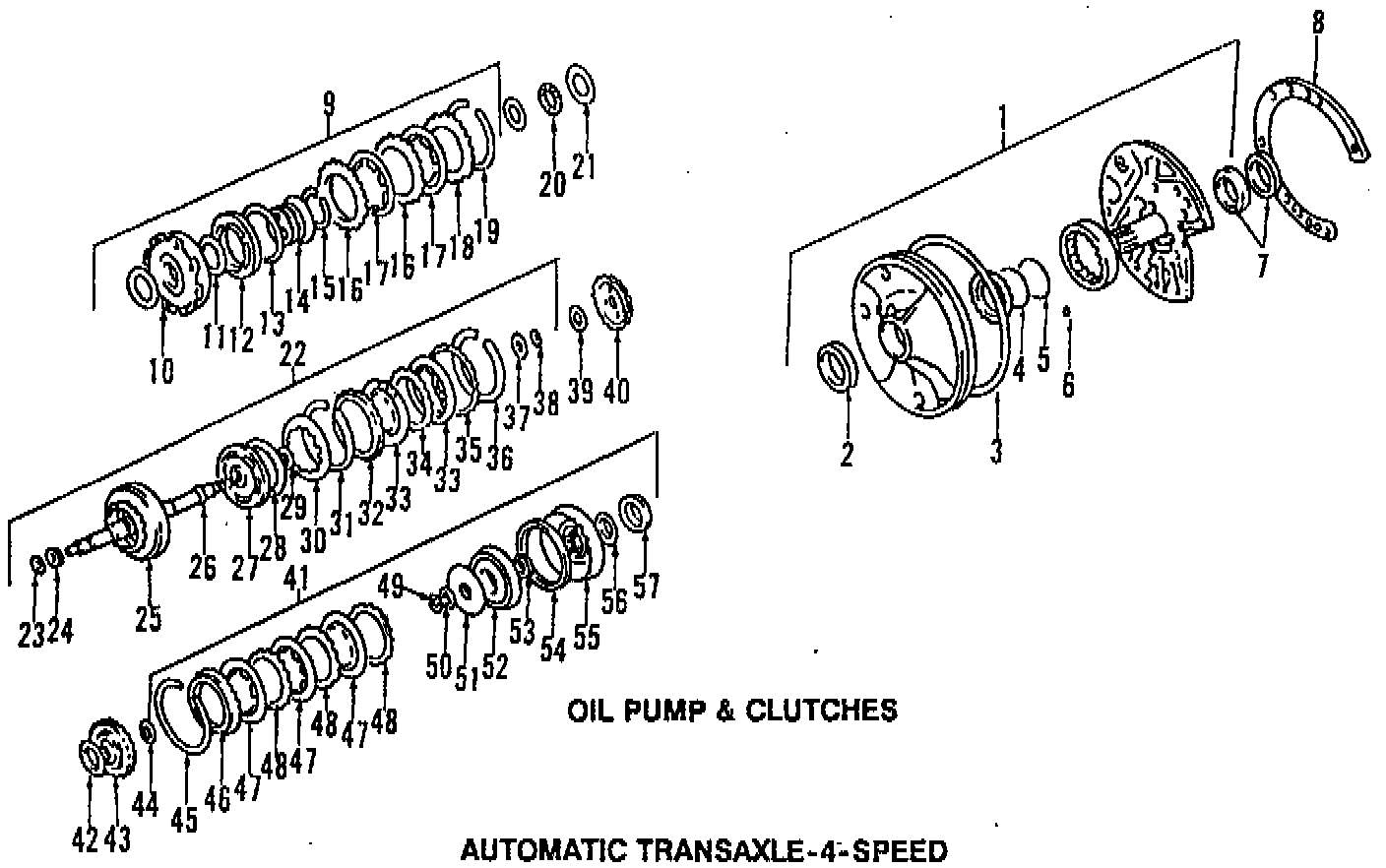

Oil Pump & Clutches:

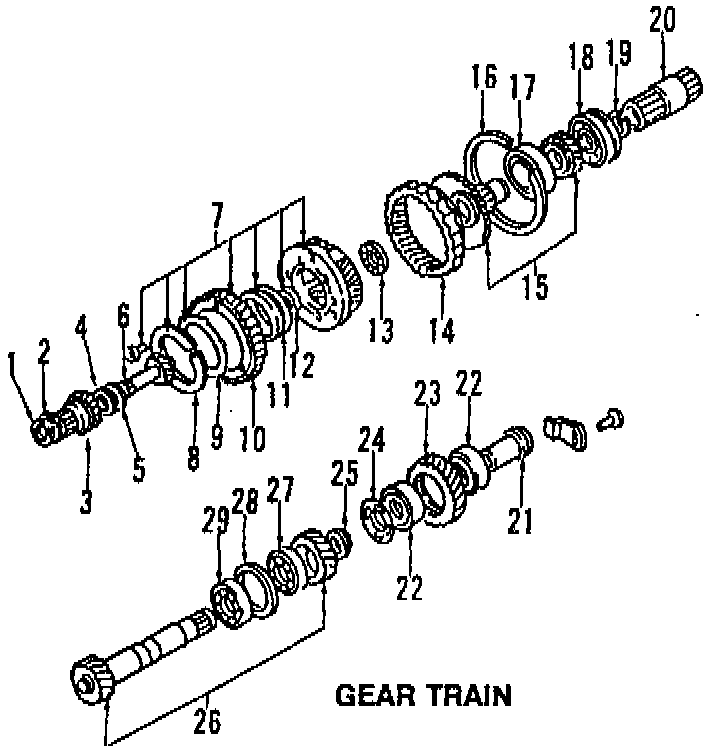

Gear Train:
