Exhaust Manifold: Service and Repair

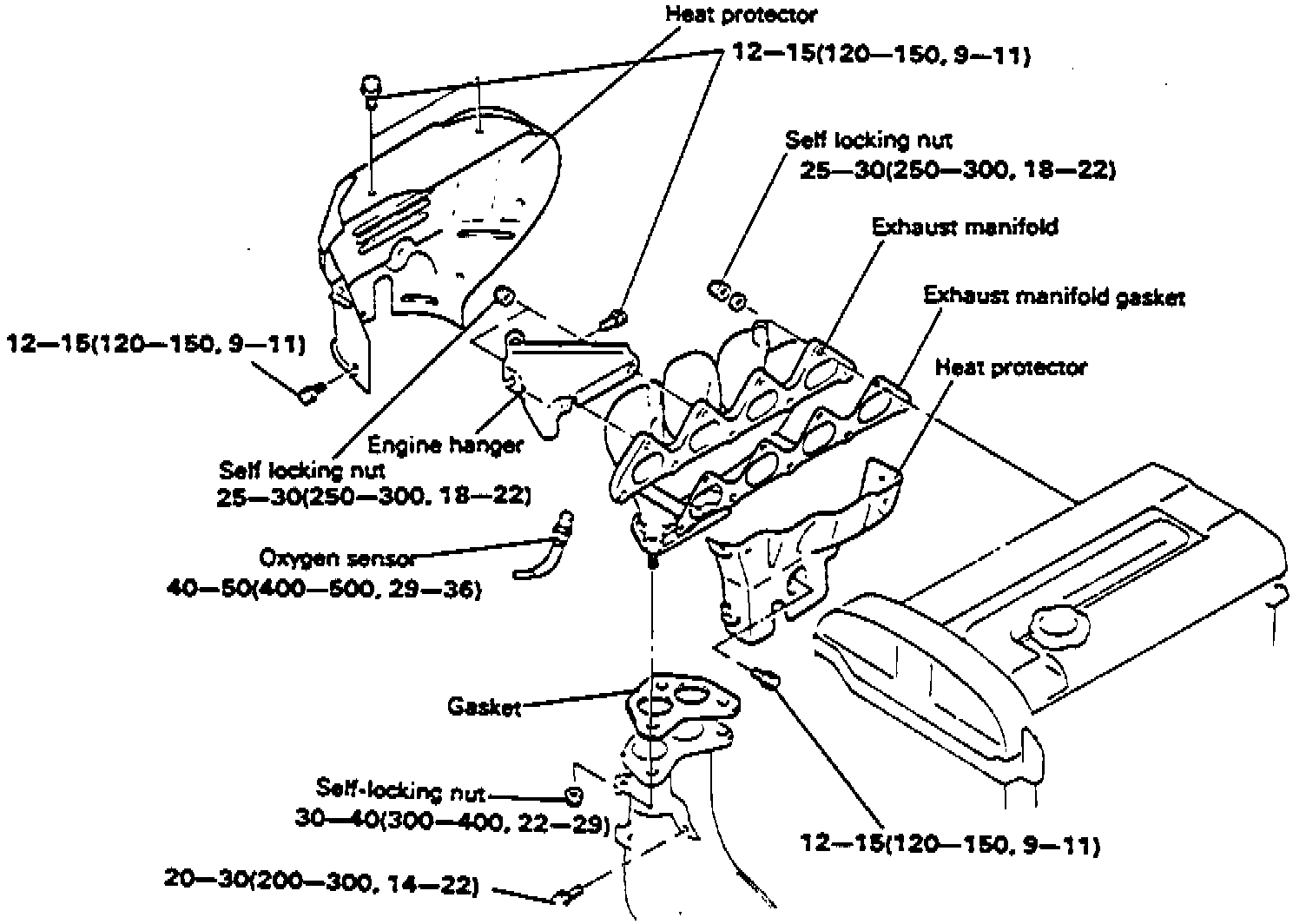

Fig. 5 Exhaust Manifold:





Refer to Fig. 5 for replacement procedures.
