Evaporative Emission Canister Purge Solenoid Valve




EVAP CANISTER PURGE SOLENOID VALVE

Description
The EVAP Canister Purge Solenoid Valve solenoid valve is an ON/OFF type, which controls introduction of purge air from the EVAP canister.





Circuit Diagram





Using scan Tool

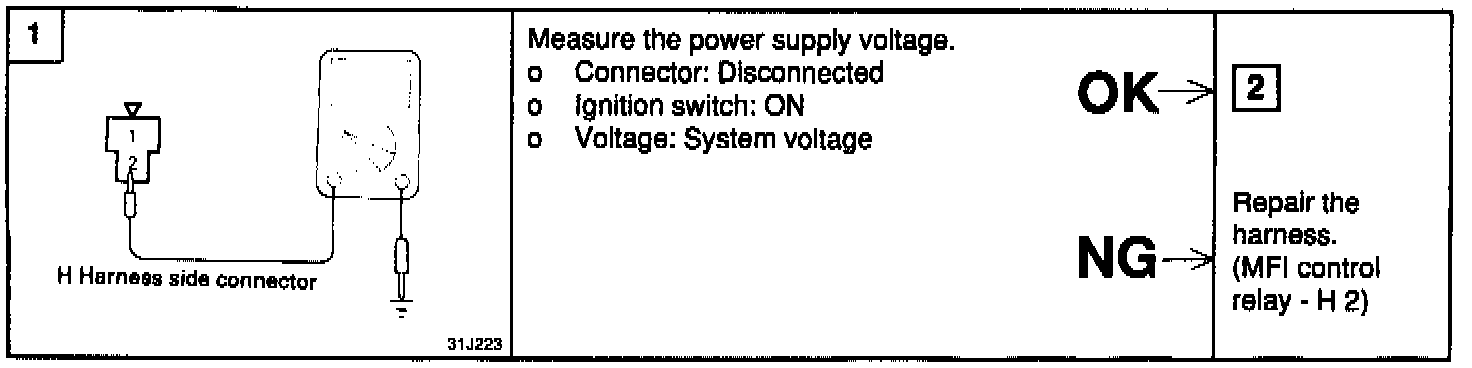

Harness Inspection Procedure
