Automatic Transmission Fluid (ATF) Inspection

TRANSAXLE FLUID LEVEL INSPECTION
1. Drive the vehicle until the fluid temperature reaches normal operating temperature (70-80°C (158-176°F).
2. Place the vehicle on a level floor.
3. Move the selector lever sequentially to every position. This will fill the torque converter and hydraulic system with fluid, then place lever in "N" (Neutral) position.

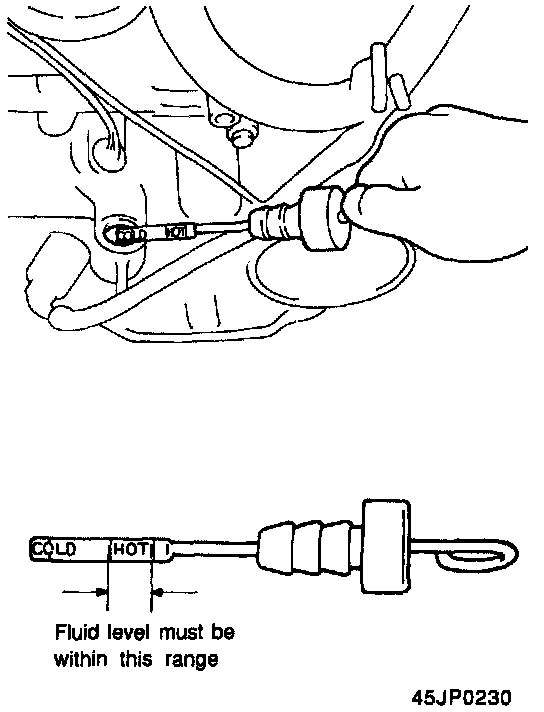

4. Before removing the dipstick, wipe all contaminant from area around the dipstick. Then take out the dipstick and check the condition of the fluid.
5. Check to see if the fluid level is in the "HOT" range on dipstick. If fluid level is low, add automatic transaxle fluid until the level reaches the "HOT" range.
