Home >> Hyundai >> 1994 >> Scoupe L4-1468cc 1.5L SOHC VIN J MFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Blower Motor

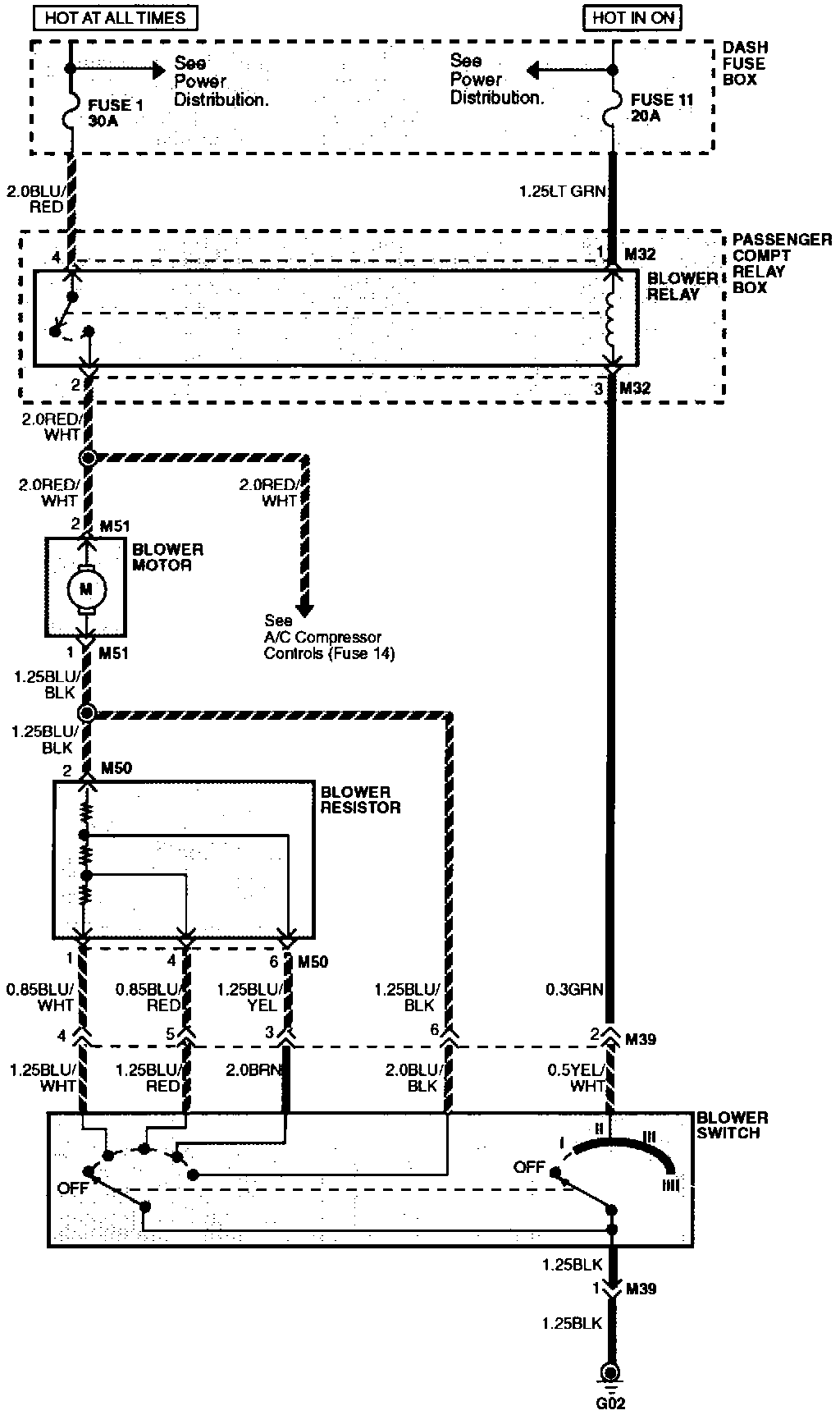

Blower Motor

Blower Controls:
