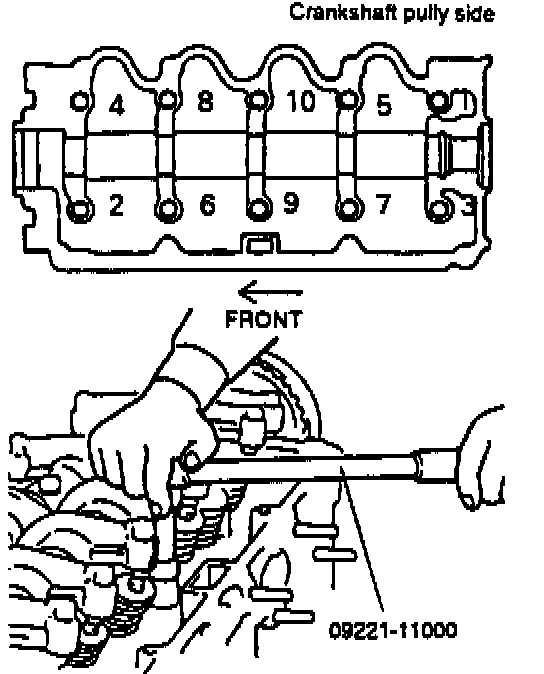

Cylinder Head Torque Specifications





Cold Engine 70-75 Nm (51-54 ft lb)
Warm Engine 80-85 Nm (58-61 ft lb)
