Home >> Hyundai >> 1994 >> Scoupe L4-1468cc 1.5L SOHC VIN J MFI >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G02

G02

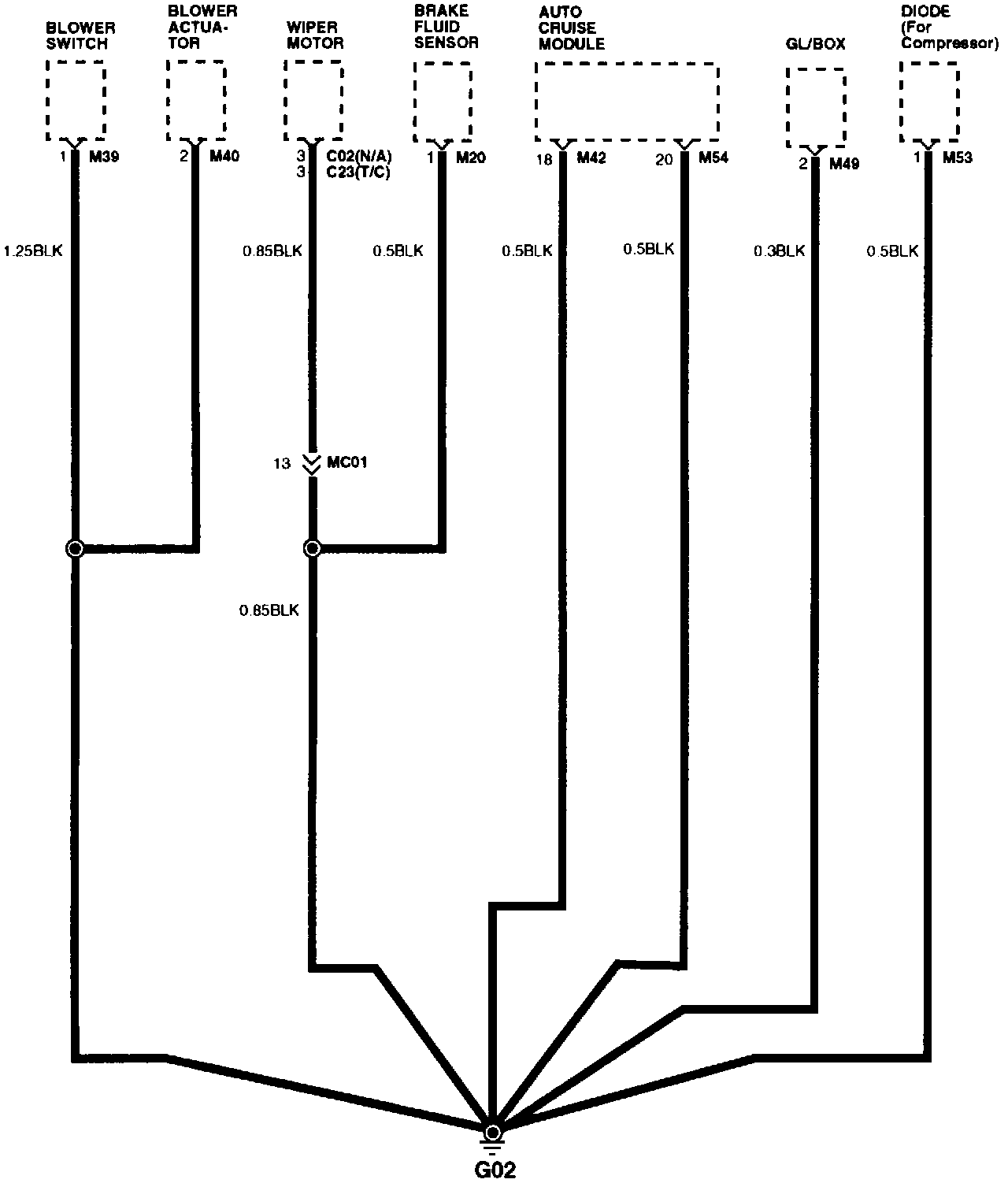

Ground Distribution (G02):
