Engine Mount: Service and Repair

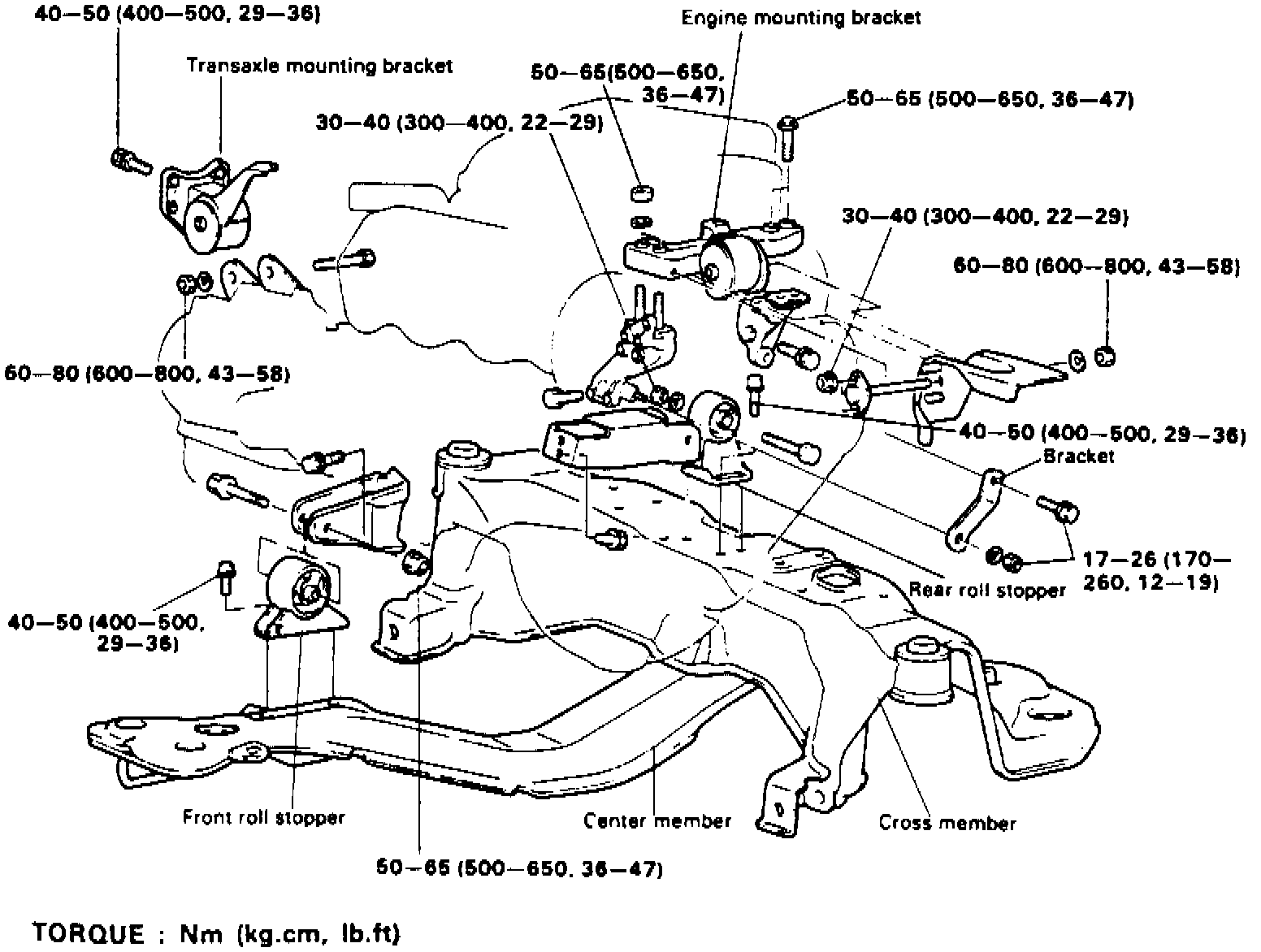

Fig. 2 Engine Mounting:





Refer to Fig. 2 for engine mount replacement.
