Home >> Hyundai >> 1994 >> Sonata L4-2.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G16

G16

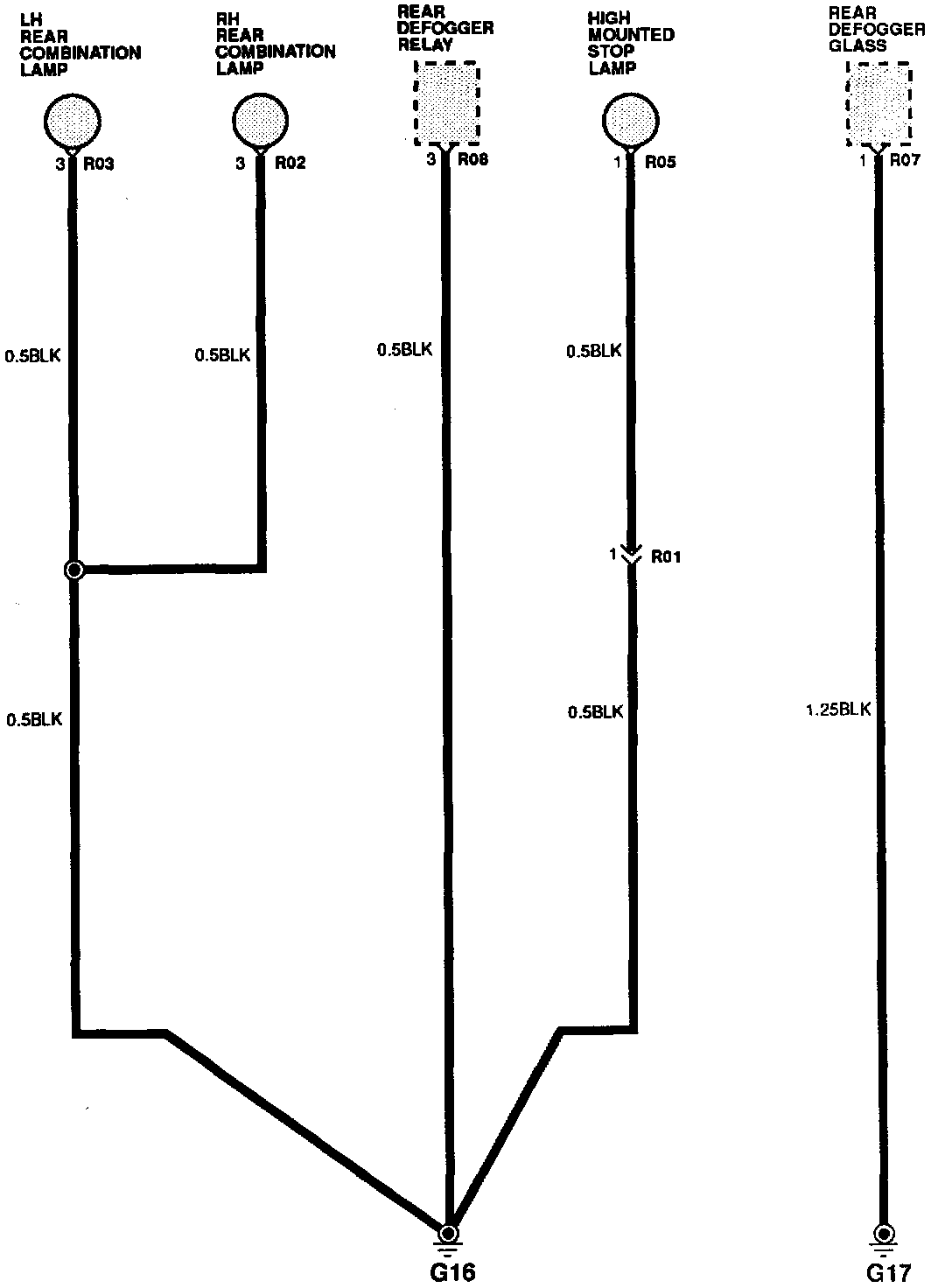

Ground Distribution (G16/G17):
