Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

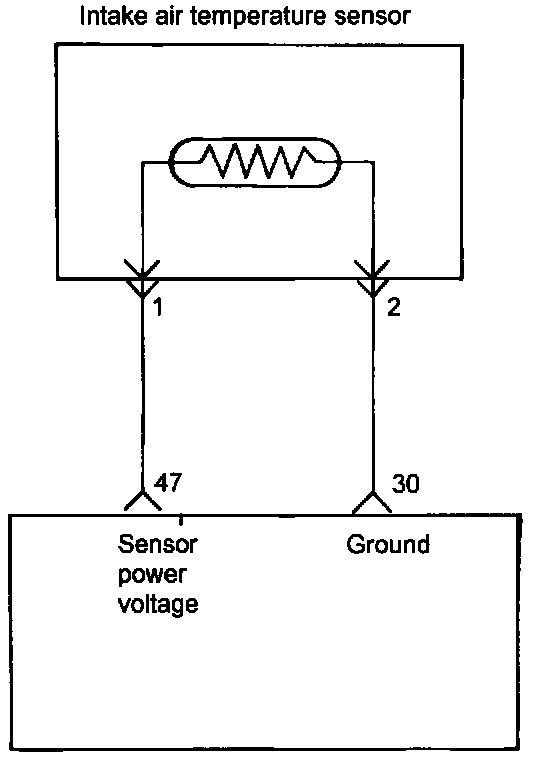

CIRCUIT DIAGRAM

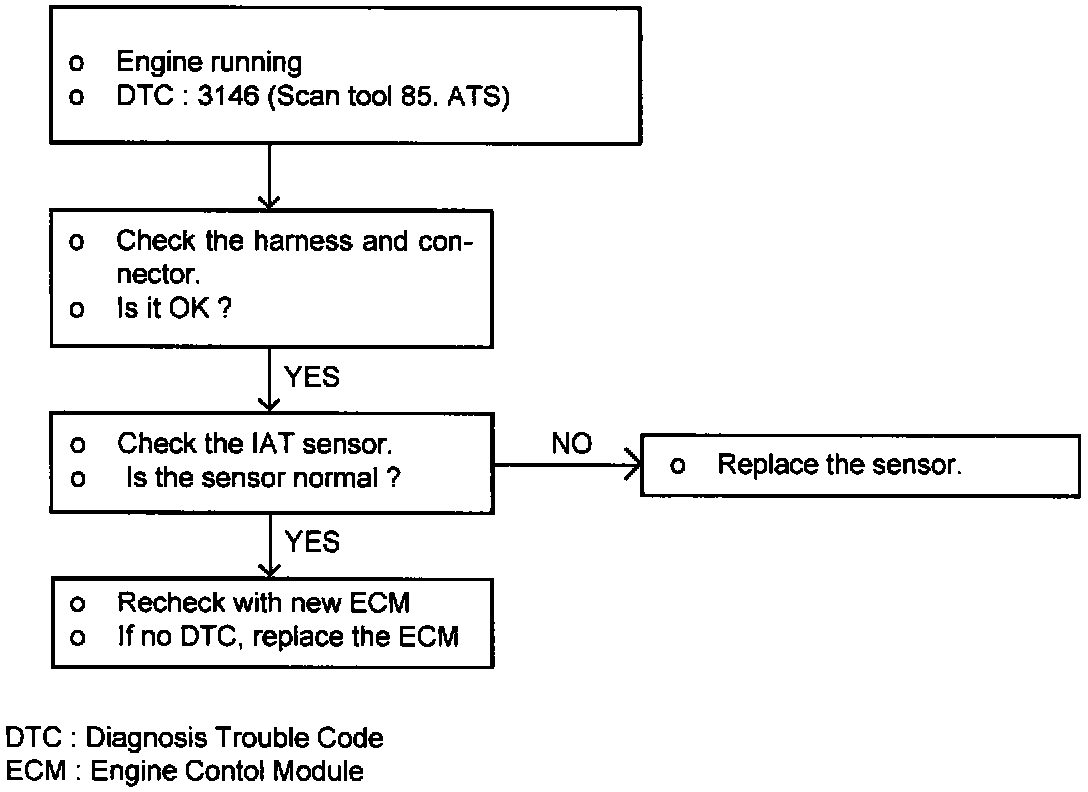

TROUBLESHOOTING PROCEDURES

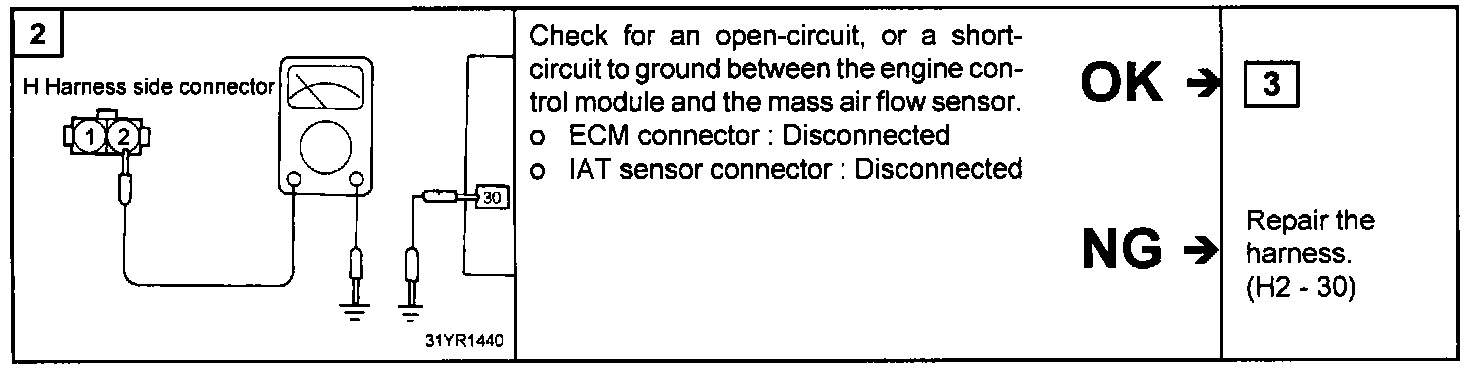

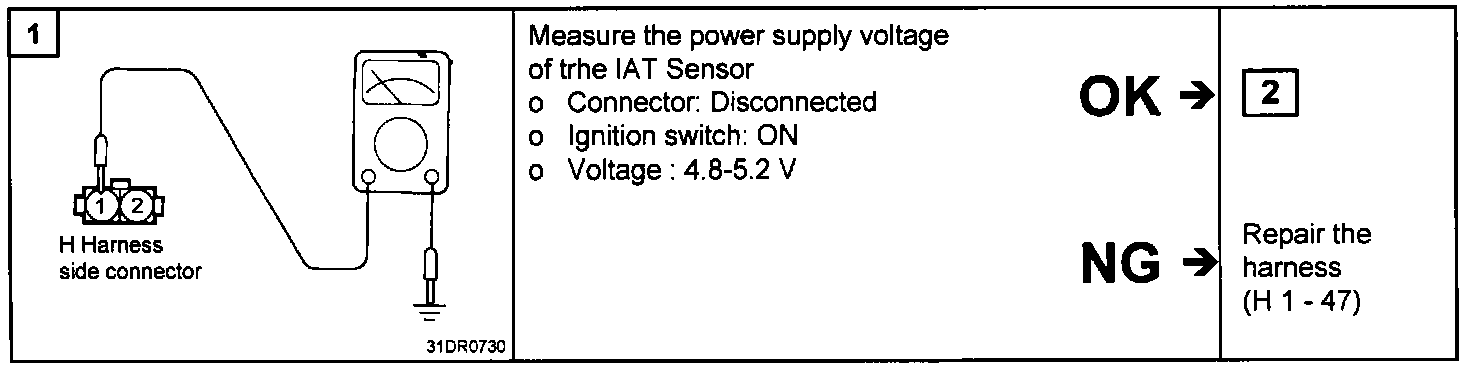

HARNESS INSPECTION PROCEDURES

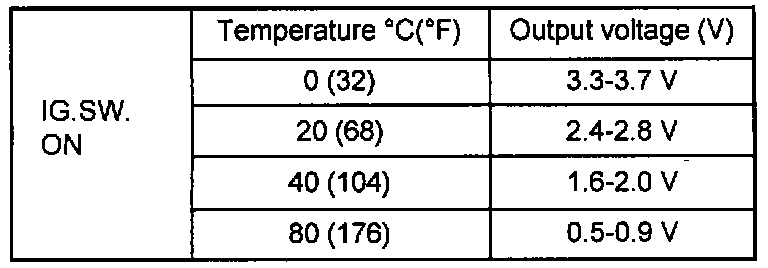

SENSOR INSPECTION
1. Use the voltmeter, measure the sensor voltage.





2. Measure the voltage between the Intake Air Temperature (IAT) sensor terminal 1 and 2
3. If the voltage deviates from the standard value, replace the IAT assembly
