Ignition Cable: Testing and Inspection

1. Check the cap and outer shell for cracks.

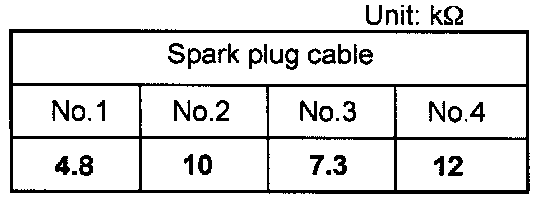

2. Measure the resistance.





NOTE: Resistance should not be higher than 10.0 K Ohms per foot of cable. If resistance is higher, replace the cable.
