Disassemble

1. Remove dust cover with screwdriver.

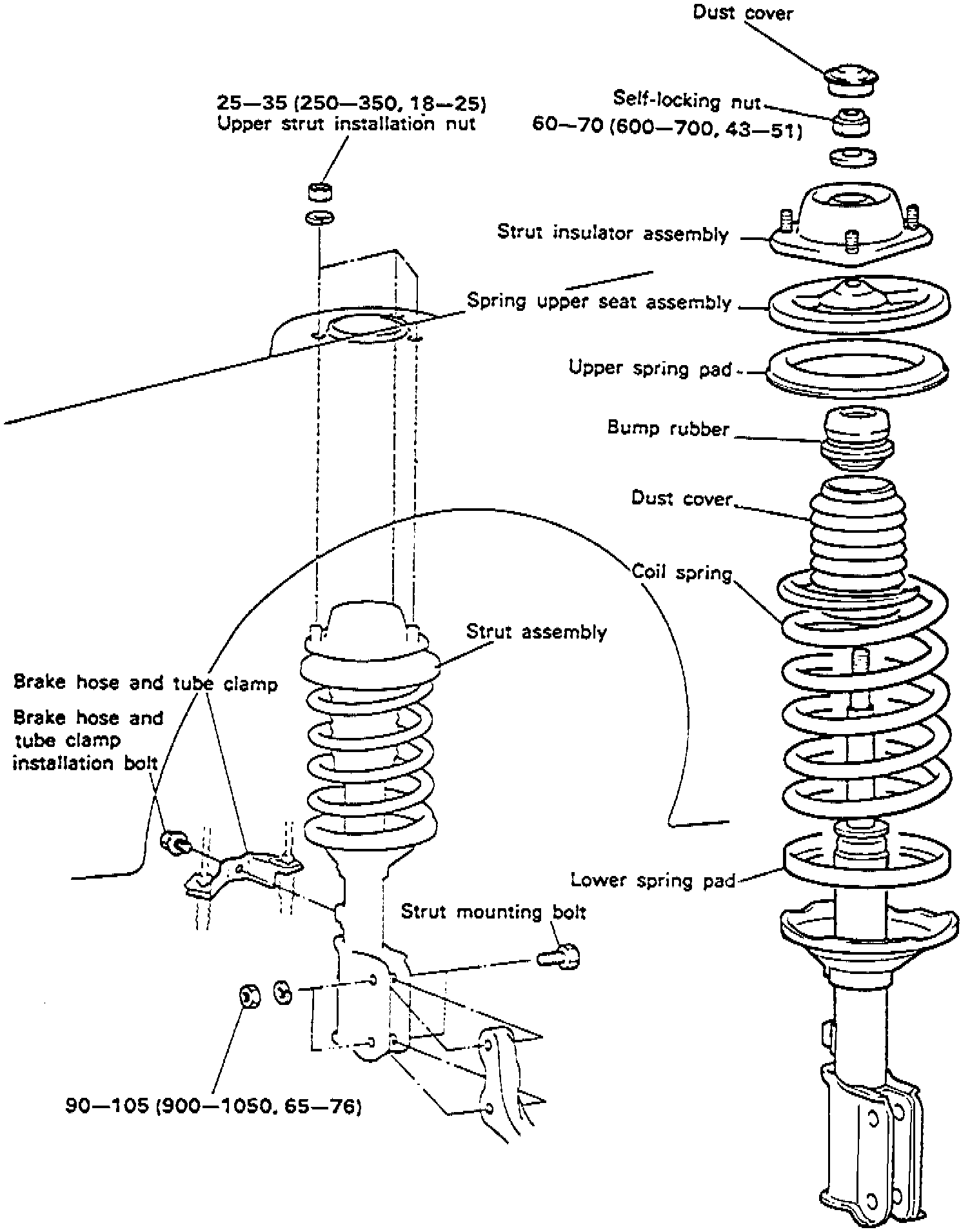

Fig. 9 Exploded View Of Strut Assembly:

2. Using special spanner tool No. 09546-33000, or equivalent, hold spring upper seat and loosen self-locking nut, Fig. 9.
3. Using spring compressor tool No. 09546-1100, or equivalent, compress spring.
4. Remove self-locking nut from strut assembly.
