Rear

1. Raise and support vehicle.

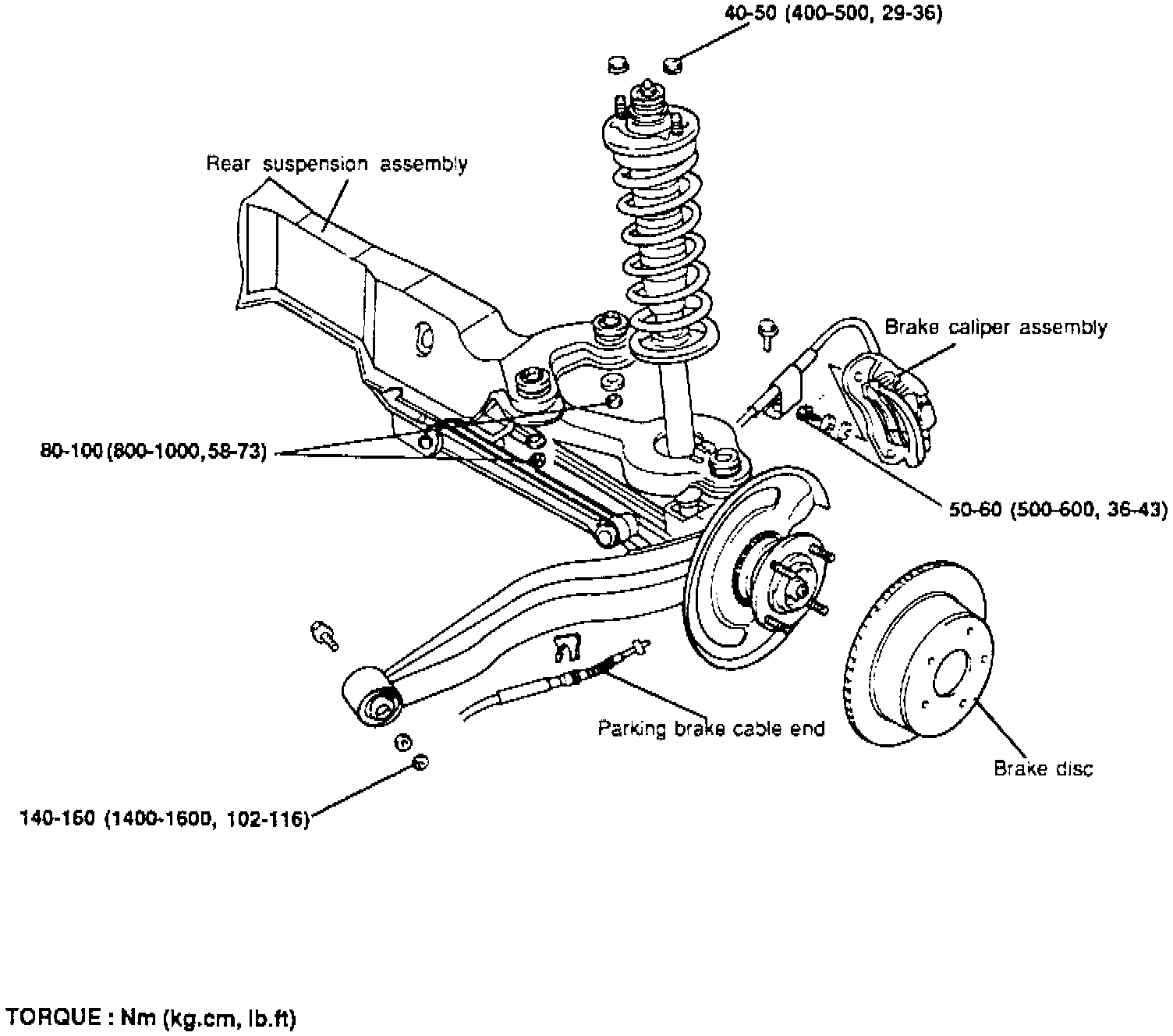

Fig. 6 Exploded View Of Rear Axle & Suspension:

2. Remove lateral rod mounting bolt, Fig. 6.
3. Raise torsion axle and arm assembly with a suitable jack, then remove shock absorber lower mounting nuts.
4. Lower vehicle, then remove shock absorber upper mounting nuts, then the shock absorber assembly from vehicle.
5. Reverse procedure to install. Tighten nuts and bolts to specifications.all.
