A/T - Pressure Table, Manual Correction
Group: TRANSAXLENumber: 94-90-009
Date: JULY, 1994
Model: 1995 SONATA V6
Subject:
ATM PRESSURE TABLE SHOP MANUAL CORRECTION
The Automatic Transaxle Standard Oil Pressure Table located in the 1995 Sonata Shop Manual on page 45A-33 contains incorrect end clutch data in column 6. Line 2 (2nd gear) should have no end clutch pressure. Line 4 (3rd gear) should have end clutch pressure.

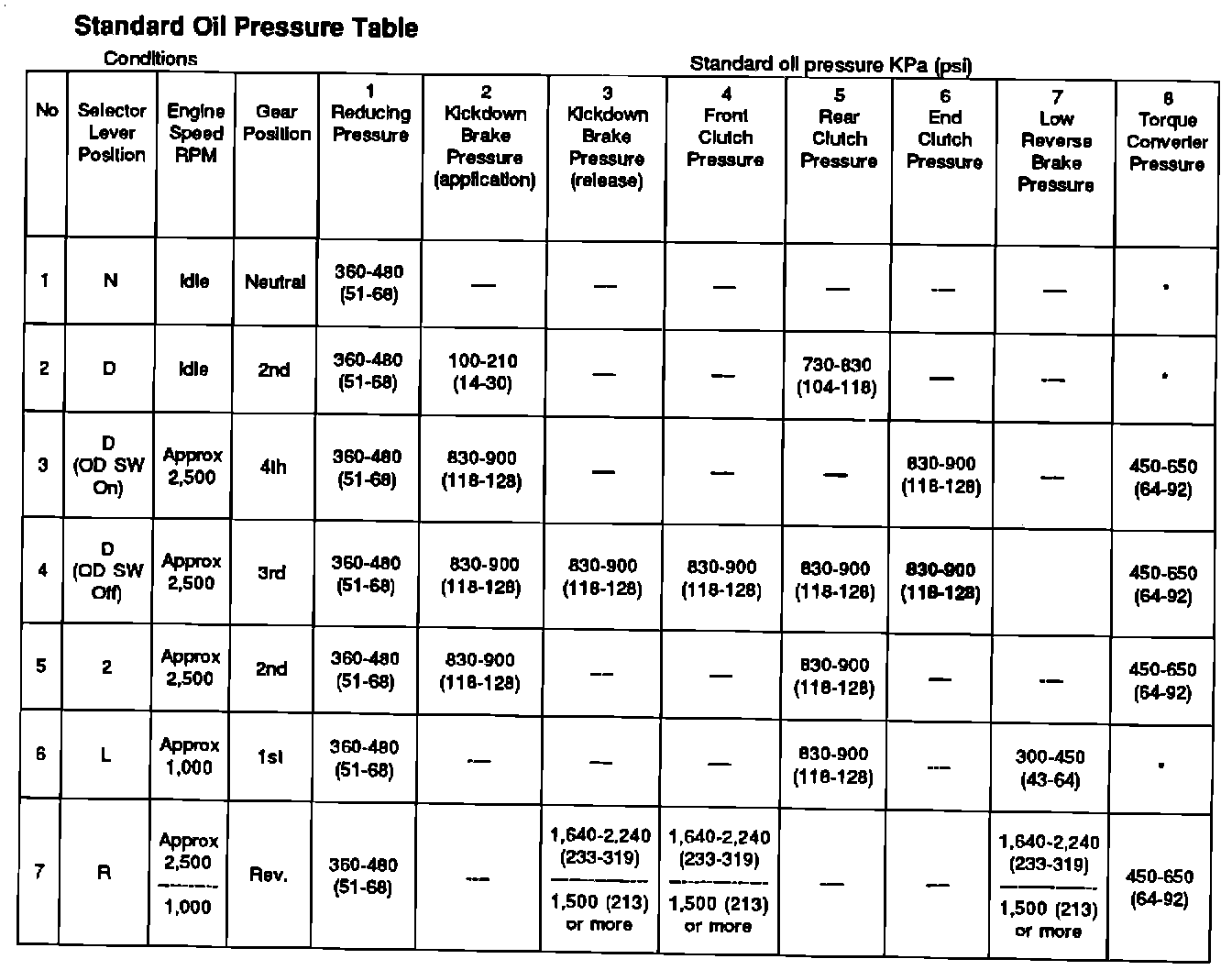

Correct the Standard Oil Pressure Table, column No. 6 (End clutch pressure), as shown:
