Front Roller Stopper

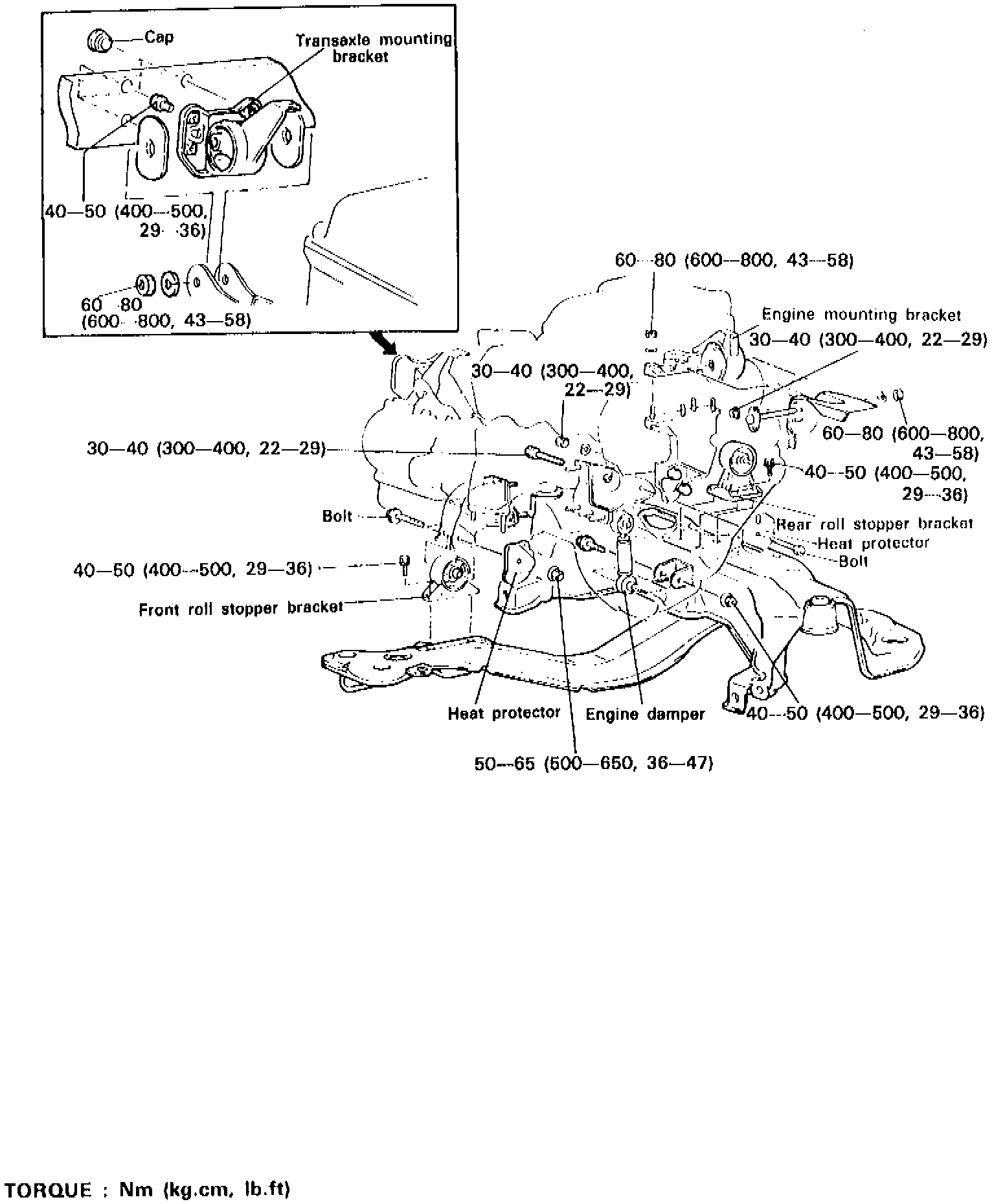

Fig. 1 Engine & Transaxle Mounts:

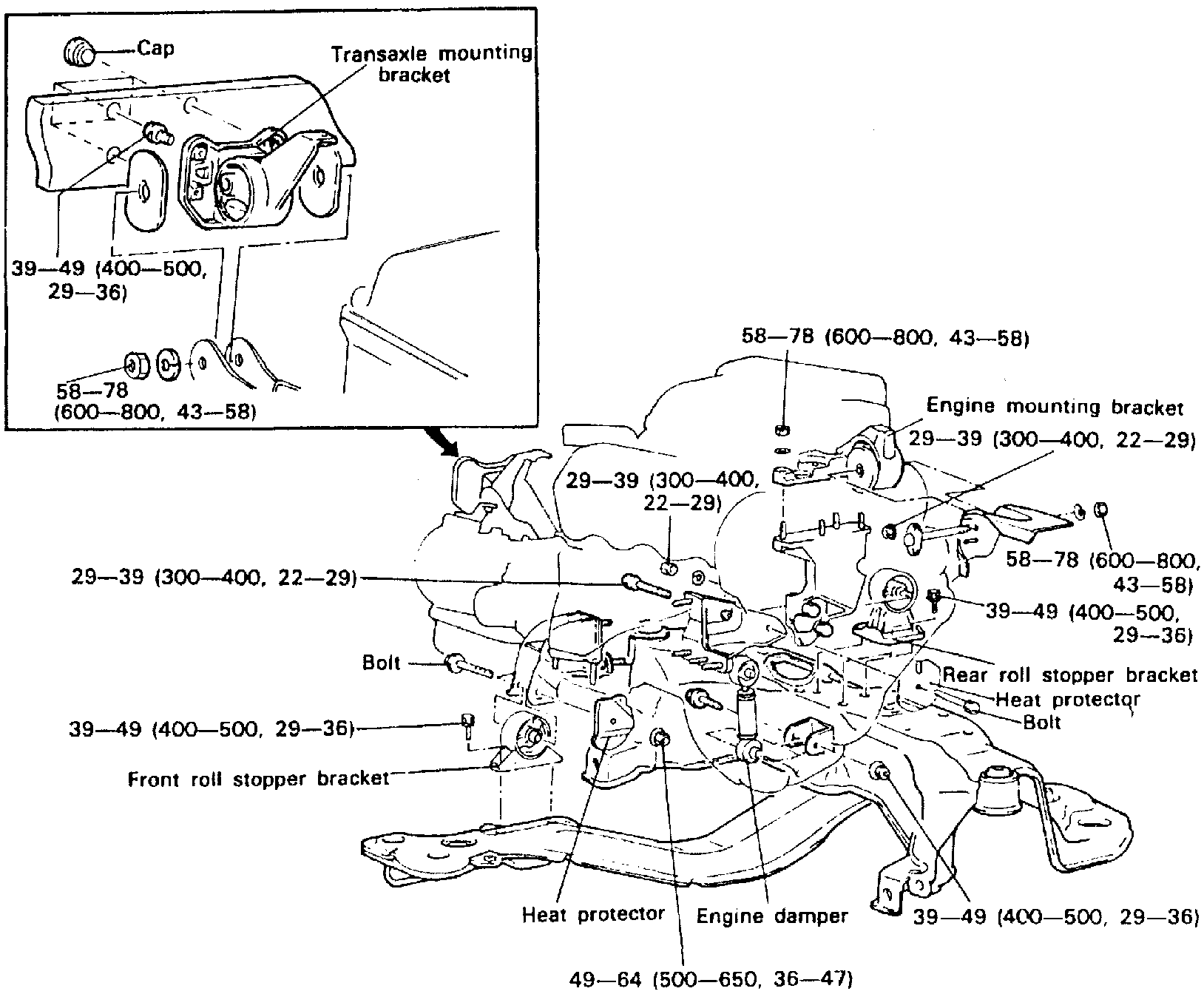

Fig. 2 Engine & Transaxle Mounts:

1. Sufficiently raise and support engine to take load off engine mounts.
2. Remove front roll stopper upper and lower bolts, Fig. 1 and 2 then front roll rod assembly.
3. Reverse procedure to install. Tighten to specifications Fig. 1 and 2.
