Driver's

CAUTION
1. Never attempt to disassemble or repair the air bag module or clock spring.
If faulty, replace ft.
2. Do not drop the air bag module or clock spring or allow contact with water, grease or oil.
Replace it if a dent, crack, deformation or rust are detected.
3. The air bag module should be stored on a flat surface and placed so that the pad surface is facing upward. Do not place anything on top of it.
4. Do not expose the air bag module to temperature over 93°C (200°F).
5. After deployment of an air bag, replace the clock spring with a new one.
6. Wear gloves and safety glasses when handling an air bag that has already deployed.
7. An undeployed air bag module should only be disposed of in accordance with proper procedures.





1. Disconnect the negative battery cable and keep secure from battery.

CAUTION
- Wait at least 30 seconds after disconnecting the battery cable before doing any further work.

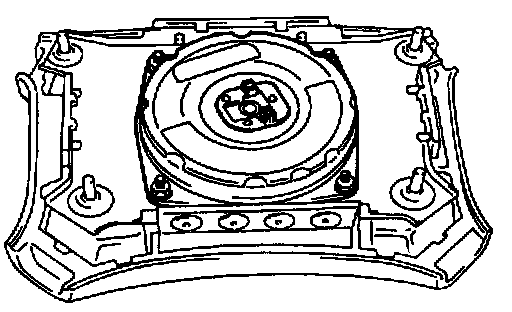

2. Remove the air bag module mounting nut using a socket wrench from the back side.





3. When disconnecting the connector of the clock spring from the air bag module, press the air bag's lock toward the outer side to spread it open. Use a screwdriver, as shown in the figure at the left, to pry so as to remove the connector gently.

CAUTION
- When disconnecting the air bag module-clock spring connector, take care not to apply excessive force to it.

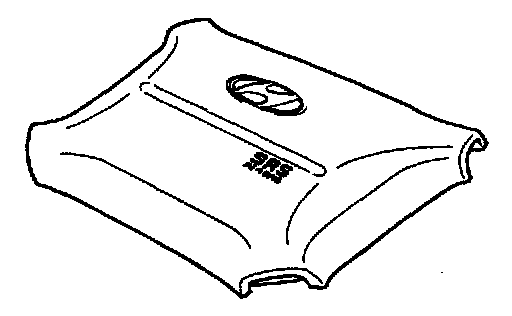

- The removed air bag module should be stored in a clean, dry place with the pad cover face up.

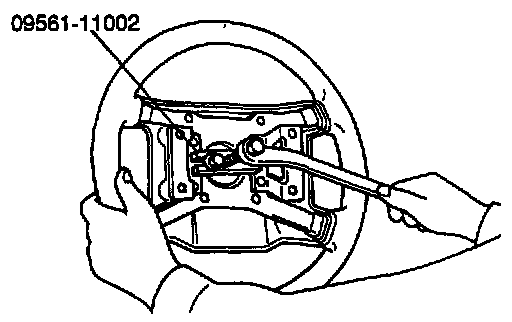

4. Remove the steering wheel by using a special tool (09561 - 11002).

CAUTION
- Do not hammer on the steering wheel. Doing so may damage the collapsible column mechanism.
