Ignition Cable: Testing and Inspection

CHECKING SPARK PLUG CABLES










1. Check the cap and outer shell for cracks.

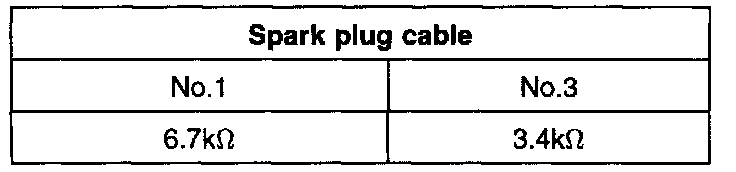

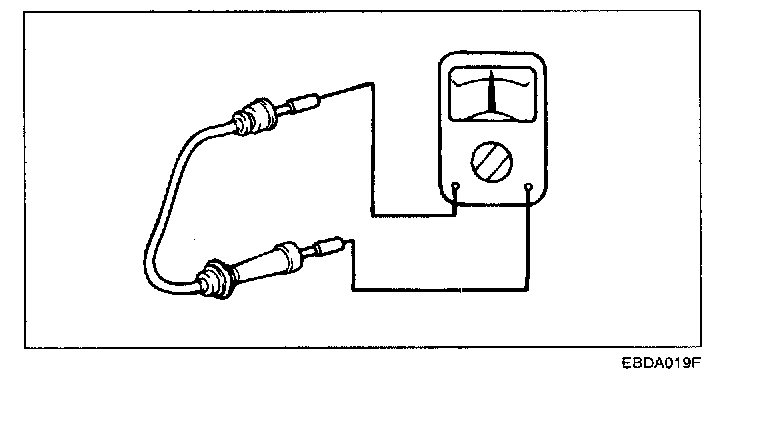

2. Measure the resistance

NOTE:
Resistance should not be higher than 10,000 ohms per foot of cable. If resistance is higher, replace the cable.
