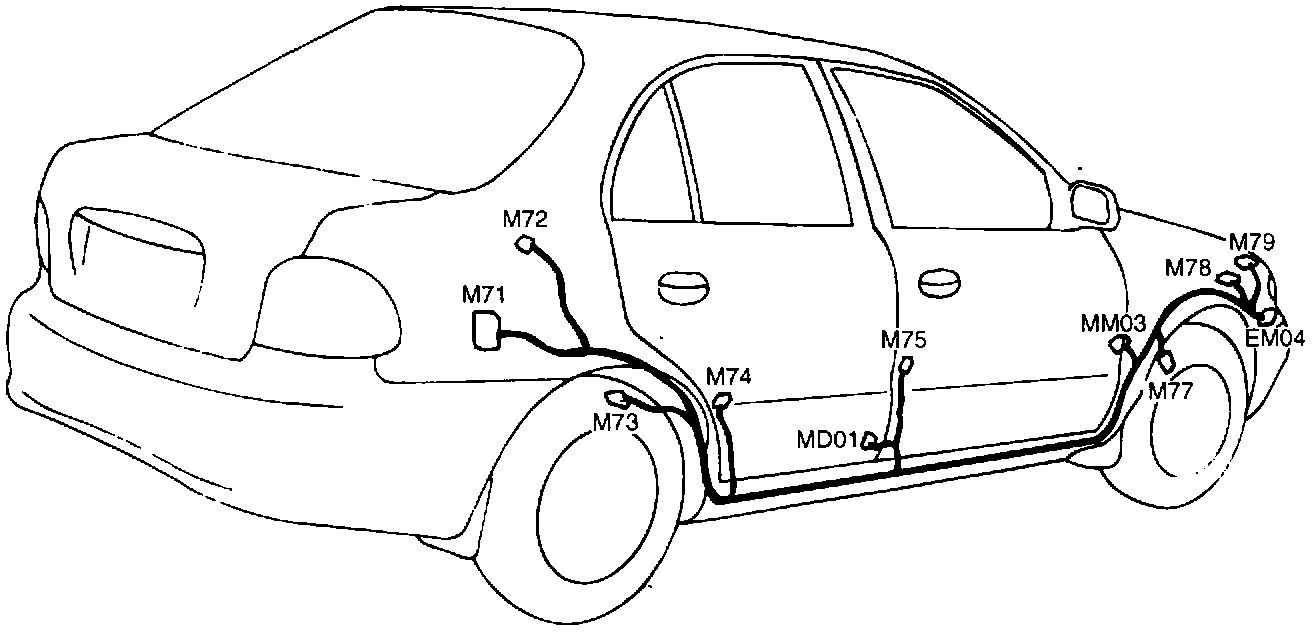

Main Harness (ABS Harness)

Main Harness (ABS Harness):

M71 ABS Control Module
M72 Speaker (RH, 3 DR Only)
M73 Rear Wheel Sensor (RH)
M74 Rear Door Switch (RH, 4 DR Only)
M75 Front Door Switch
M77 Front Wheel Sensor (RH)
M78 Modulator
M79 ABS Relay Box
MD01 Connection With REAR DOOR (RH) Harness (4 DR Only)
EMO4 Connection With ENGINE Harness
MMO3 Connection With MAIN Harness
