Troubleshooting
Troubleshooting

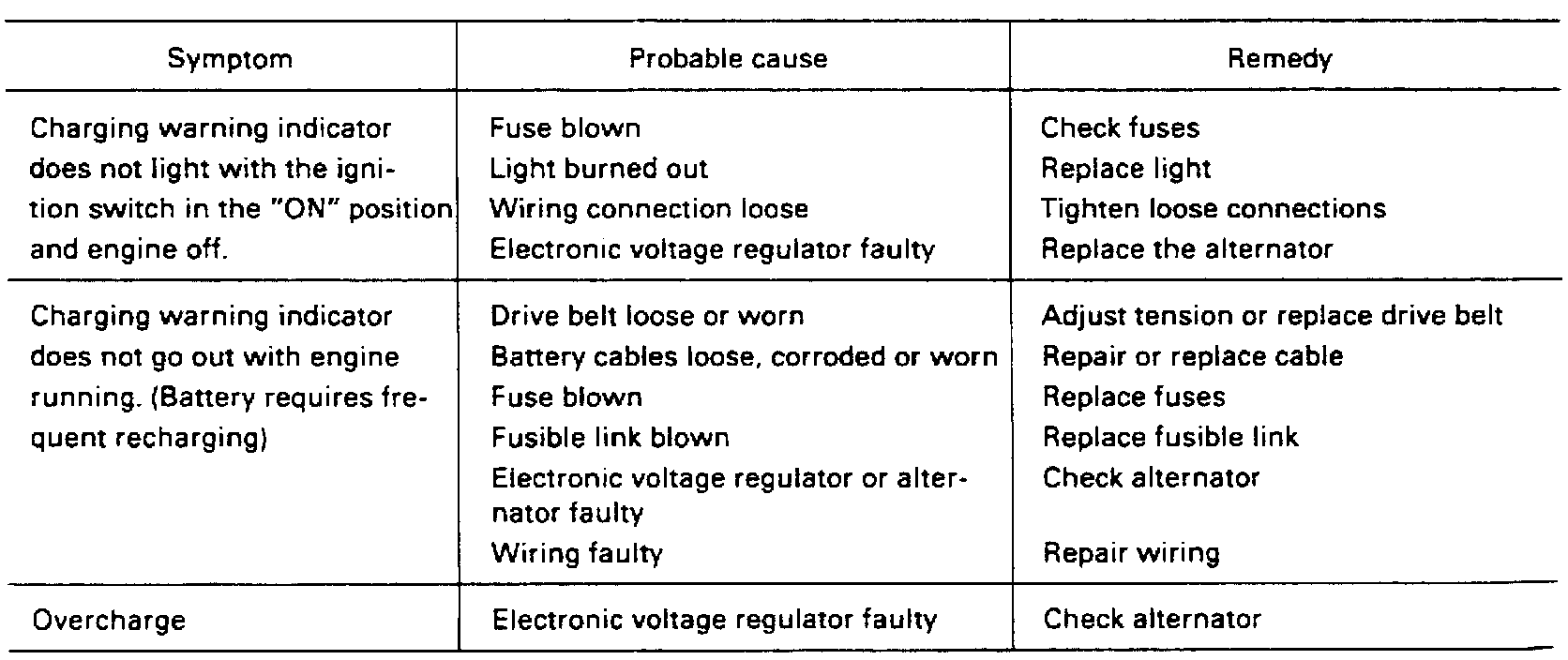

Fig. 1 Troubleshooting Procedure:
Refer to
Fig. 1
for troubleshooting procedure.
