Control Harness

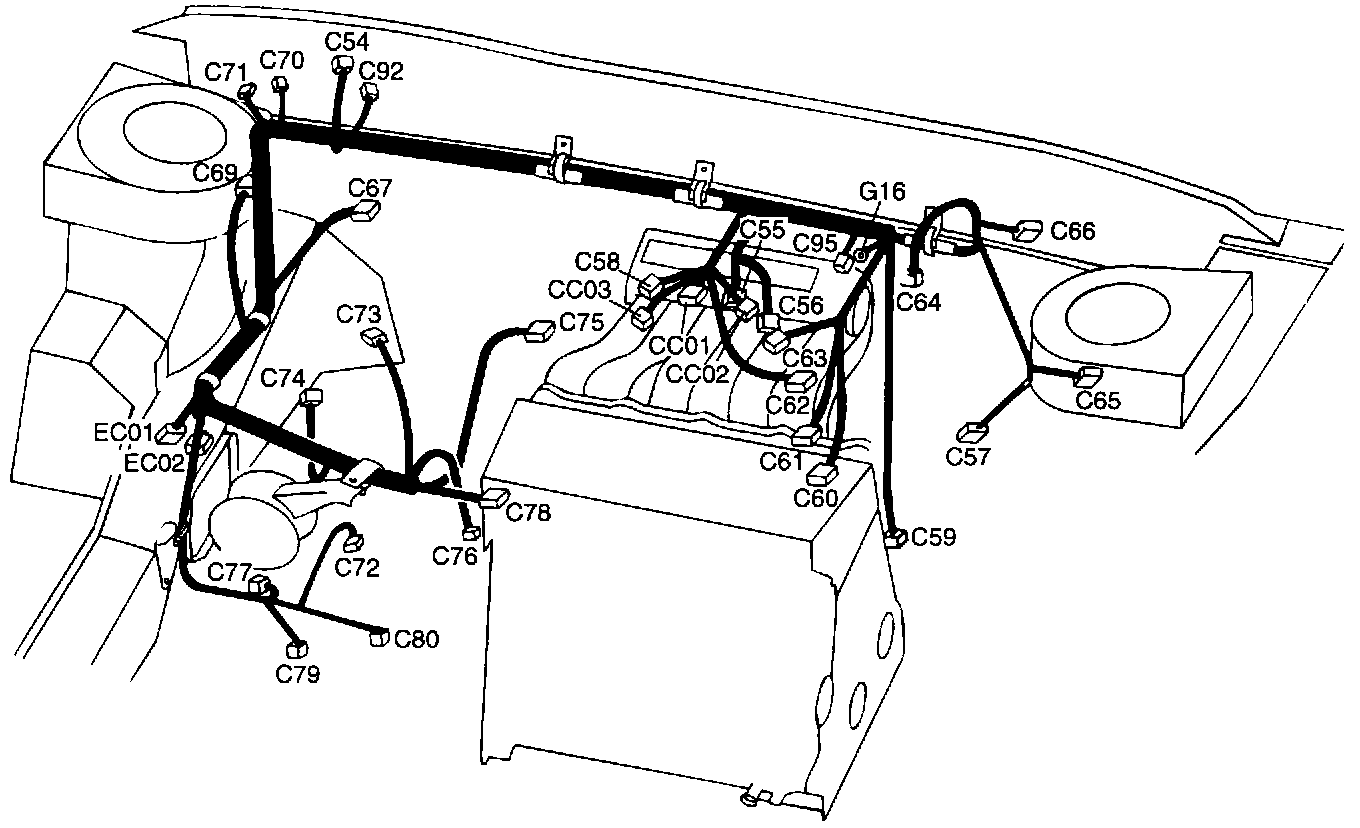

Control Harness:

C54 Relay with diode
C55 EGR solenoid
C56 Purge solenoid
C57 Distributor
C58 Distributor (with Dual O2 Sensor)
C59 Heated oxygen sensor (Front)
C60 Ignition coil
C61 Power transistor
C62 Noise filter
C63 Radio noise condenser
C64 NO pressure switch (LOW)
C65 Variable resistor (Leaded)
C66 Wiper motor
C67 Brake fluid level sensor
C69 Cruise actuator
C70 Fuel pump checker
C71 Ignition control adjusting connector
C72 A/T pulse generator
C73 VAF sensor
074 A/T solenoid valve
075 TP sensor
C76 Vehicle speed sensor
C77 Transaxle range switch
C78 ISC motor
C79 ATM oil temperature sensor
C80 K/D servo switch
C92 Siren (Except NAS)
C95 MDP sensor (NAS)
CC01 Connection with inter harness
CC02 Connection with inter harness
CC03 Connection with inter harness (NAS)
EC01 Connection with engine harness
EC02 Connection with engine harness
G16 Dash earth

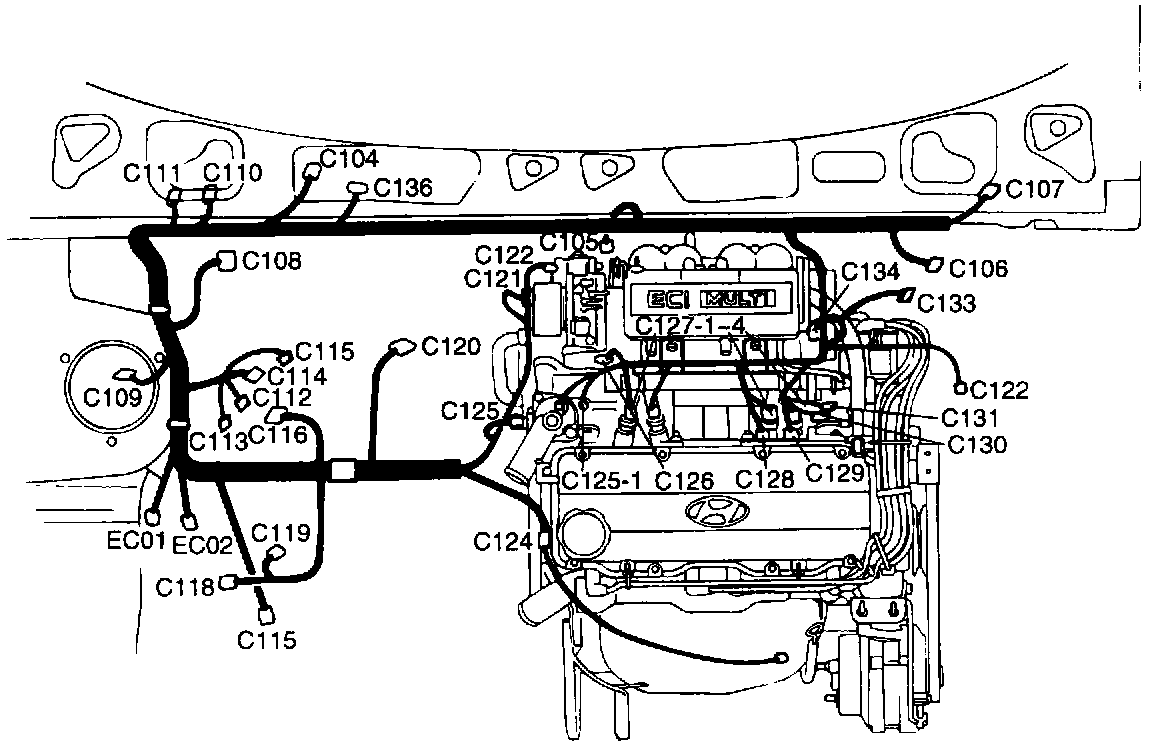

Control Harness:

C104 Relay with diode
C105 Purge solenoid
C106 A/C pressure switch (LOW)
C107 Wiper motor
C108 Brake fluid sensor
C109 Auto cruise pump
C110 Ignition timing adjusting connector
C111 Fuel pump checker
C112 Pulse generator
C113 KID servo switch
C114 Oil temperature sensor
C115 Back up switch
C116 VAF sensor
C118 Transaxle range switch
C119 ATM solenoid valve
C120 Vehicle speed sensor
C121 ISC motor
C122 Idle switch
C123 Thermo sensor (115°C)
C124 Heated oxygen sensor (unlead)
C125 ECT sensor
C125-1 ECT sender
C126 TP sensor
C127-1 Injector
C127-2 Injector
C127-3 Injector
C127-4 Injector
C128 Power transistor
C129 Distributer
C130 Noise filter
C131 Condenser
C132 Variable resistor (Leaded)
C133 A/C compressor
C134 Ignition coil
C136 Siren
EC01 Connection with engine harness
EC02 Connection with engine harness
