Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
1996
>>
Sonata V6-3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Fuel Pump
>>
Testing and Inspection
>>
Harness Inspection
Harness Inspection

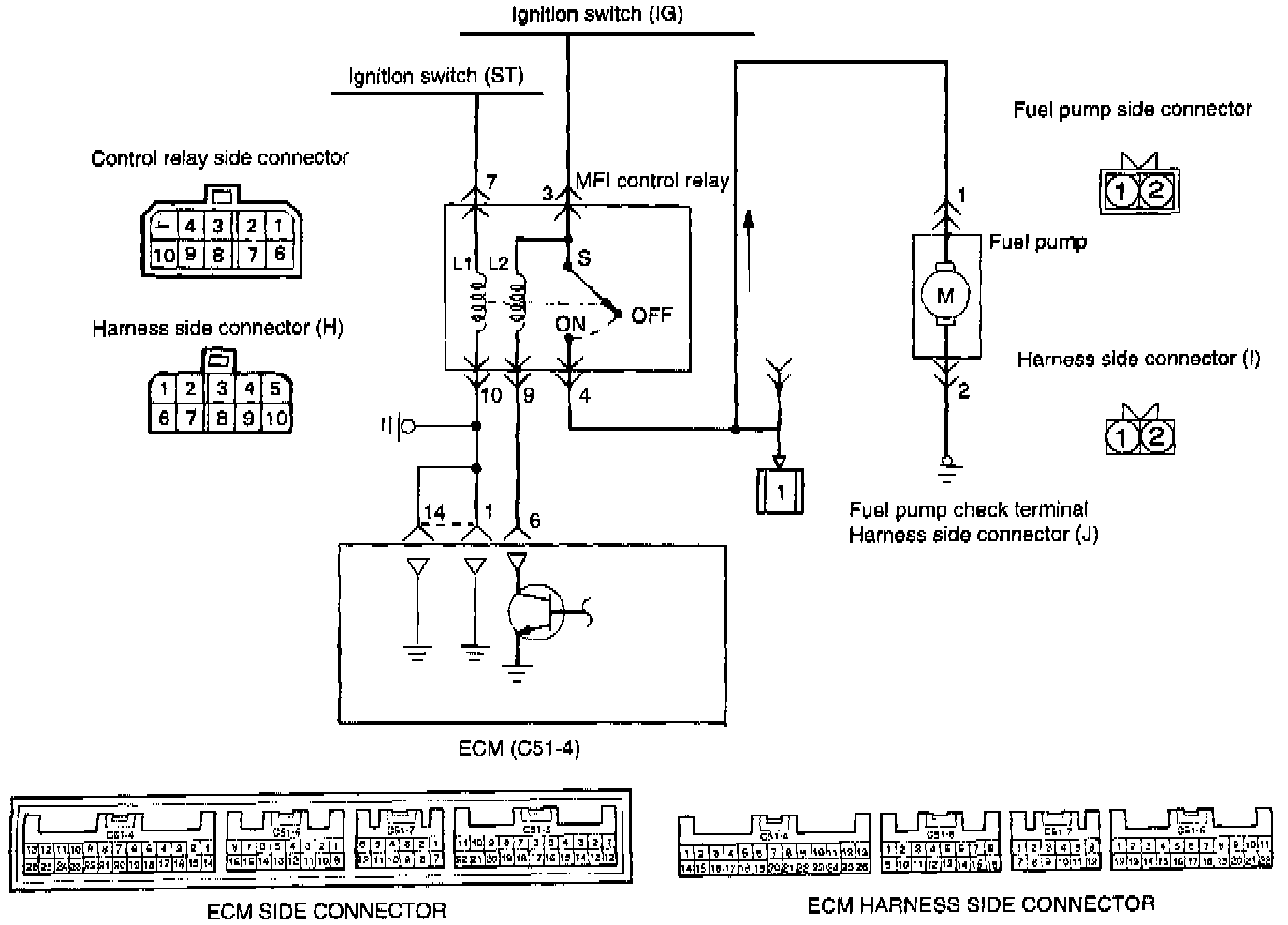

CIRCUIT DIAGRAM

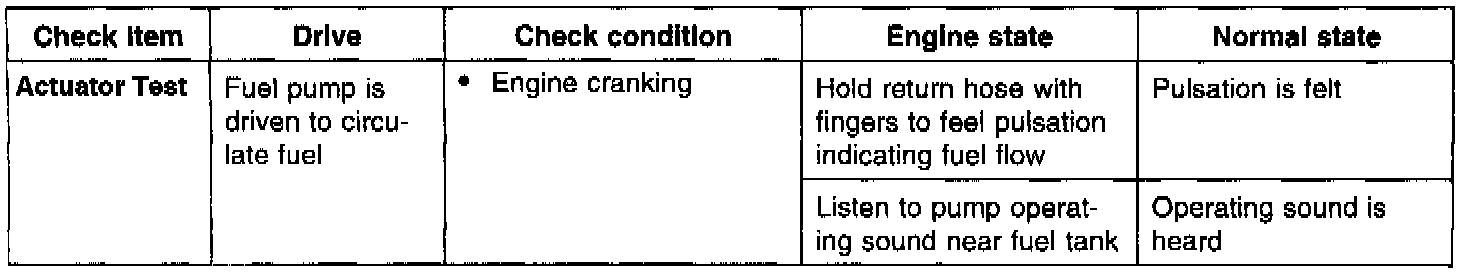

USING SCAN TOOL

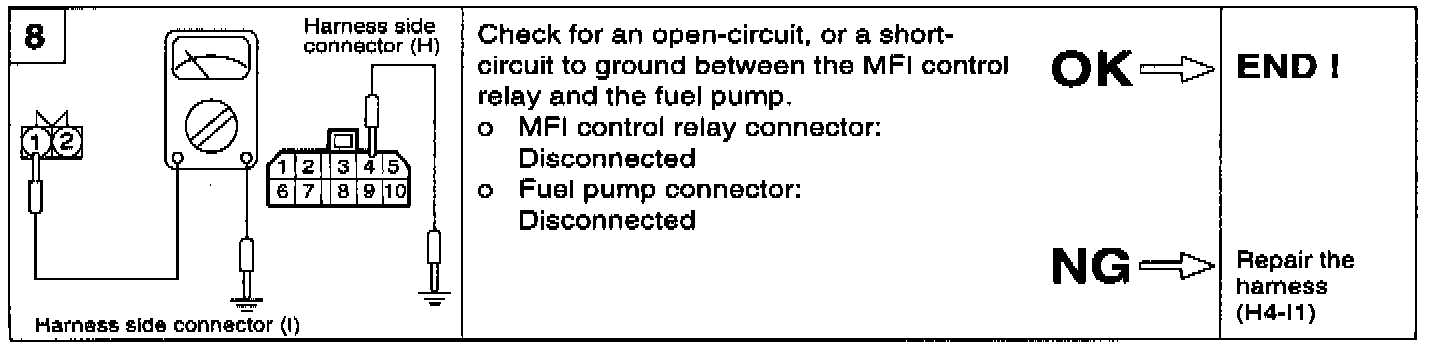

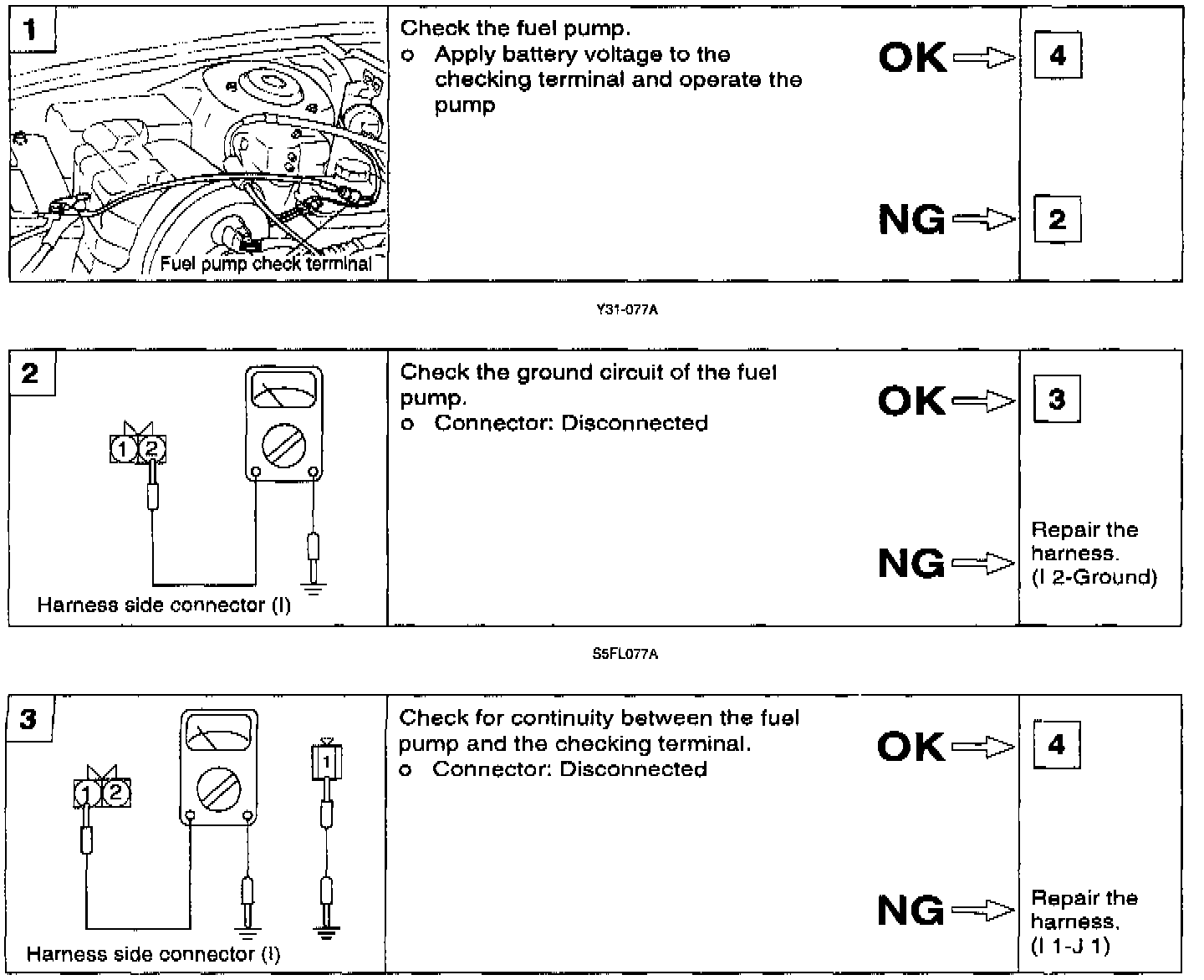

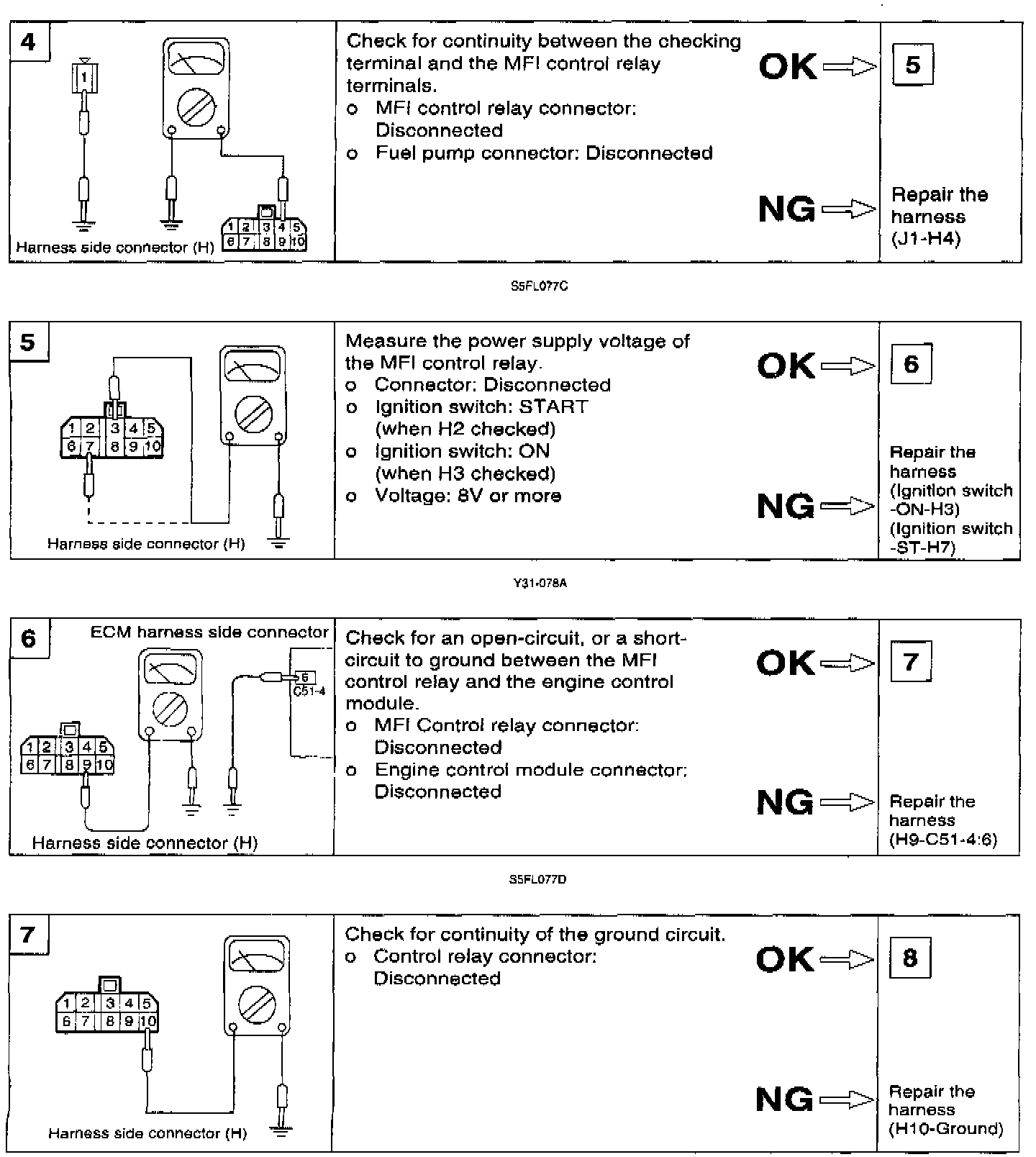

HARNESS INSPECTION
