Air Register: Service and Repair

AIR VENT REPLACEMENT

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related pads, to prevent damage.
- Put on gloves to protect your hands.

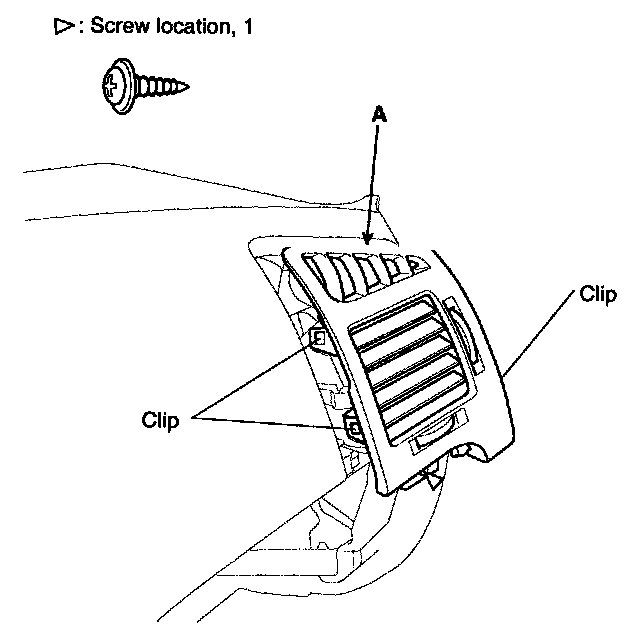

1. Remove the air vent (A) by detaching the clips.






2. Installation is the reverse of removal.
