Repair Procedures

Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not bend or scratch the cover and other parts.

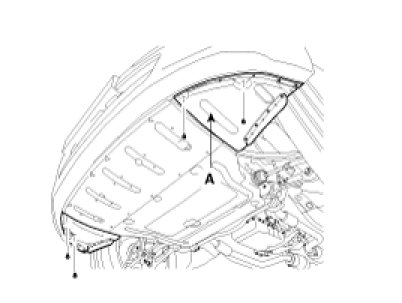

1. Remove the mounting clips (A).

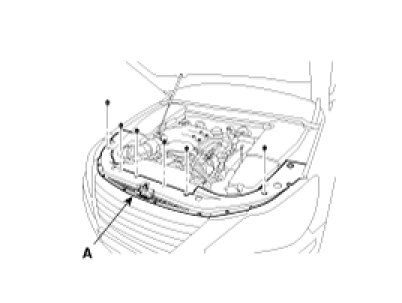

2. Remove the radiator upper cover (A).

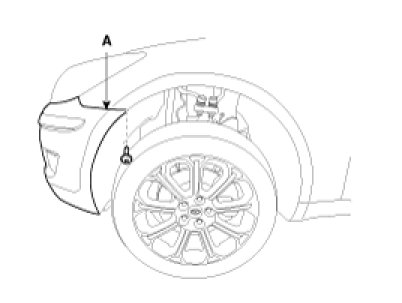

3. Remove the bumper side screw (A).




4. Disconnect the connector (A).




5. Installation is the reverse of removal.
