Speaker: Service and Repair

Removal

Front Speaker

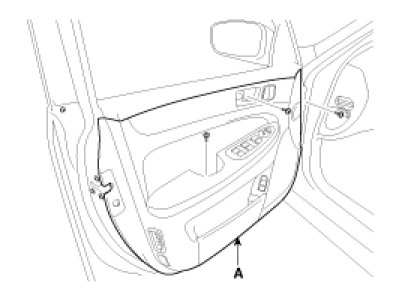

1. Remove the front door trim panel.

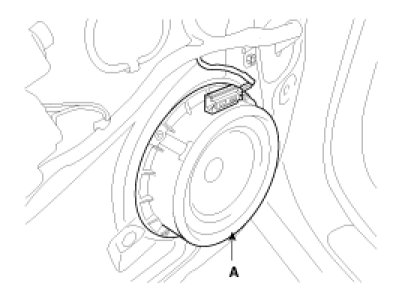

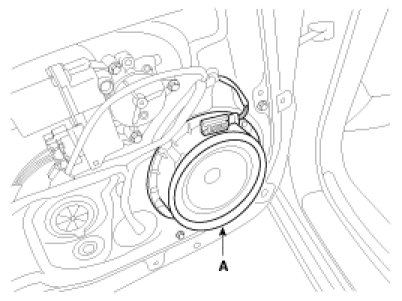

2. Remove the front speaker (A) after removing 4 rivets.





Rear Speaker
1. Remove the rear door trim panel.

2. Remove the rear speaker (A) after removing 4 rivets.





Front Door Tweeter Speaker

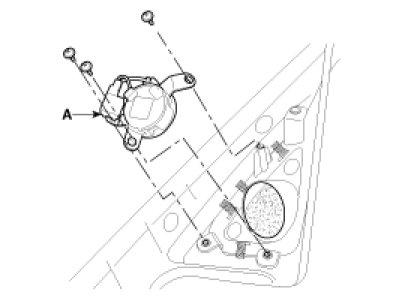

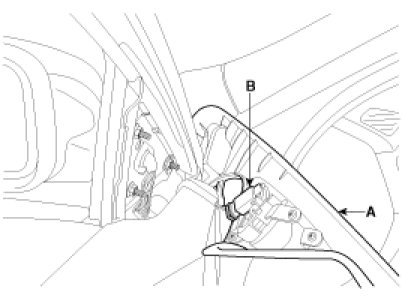

1. Remove the front door delta cover (A) after disconnecting the connector (B).





2. Remove the tweeter speaker (A).





Front Door Middle Speaker
1. Remove the front door trim panel (A).





2. Remove the middle speaker (A) after removing the screws.





Rear Door Tweeter Speaker

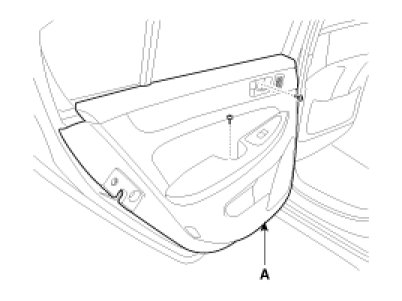

1. Remove the rear door trim panel (A).

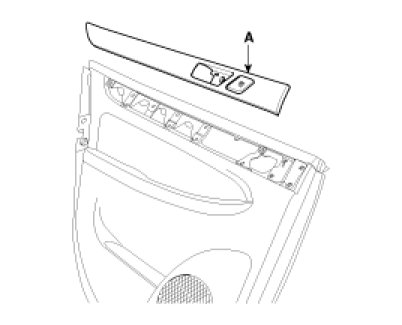

2. Remove the door trim garnish (A) after removing the screws inside the door trim panel.

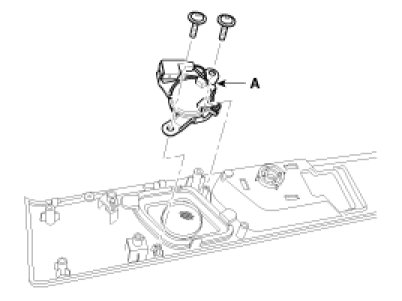

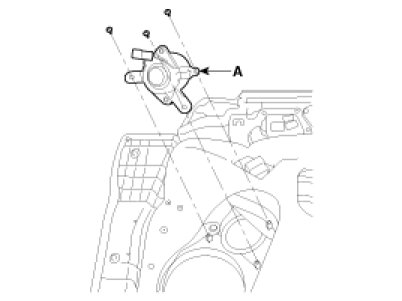

3. Remove the tweeter speaker (A) after removing the screws and connectors.

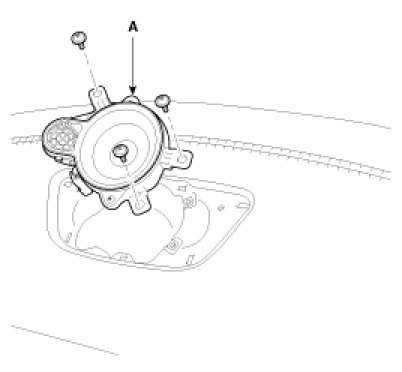

Crash Pad Center Speaker

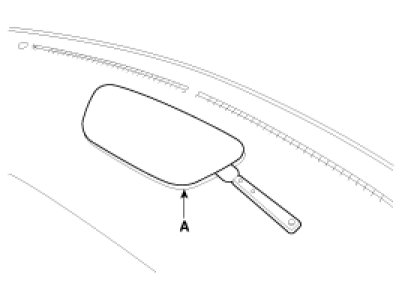

1. Remove the crash pad center speaker grill (A).




2. Remove the crash pad center speaker (A) after loosening the mounting screws (3EA).





Sub Woofer Speaker
1. Remove the rear seat.

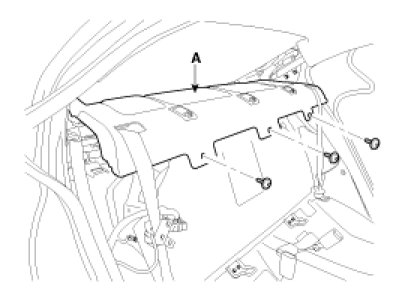

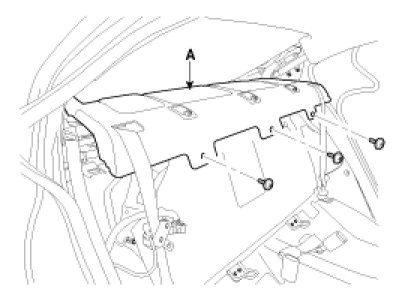

2. Remove the rear package tray (A).

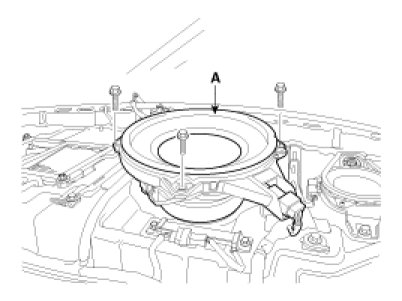

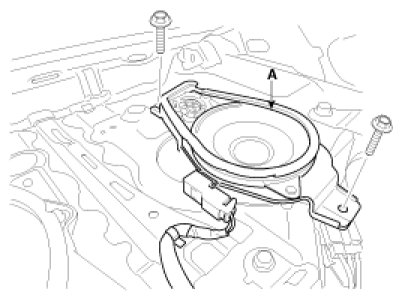

3. Remove the sub woofer speaker (A) after removing bolts (3EA).





Surround Speaker
1. Remove the rear seat.

2. Remove the rear package tray (A).





3. Remove the surround speaker (A) after removing bolts (2EA).





External Amp
1. Disconnect the negative (-) battery terminal.
2. Remove the right trunk side trim.

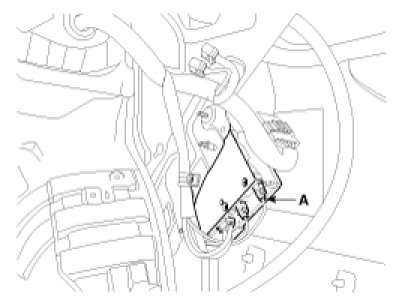

3. Remove the external amplifier (A) after removing nuts and connectors.




** For hand free mic, refer to the removal/installation of AVN hand free mic.

Installation

Front Speaker
1. Install the front speaker.
2. Install the front door trim.

Rear Speaker
1. Install the rear speaker.
2. Install the rear door trim.

Front Door Tweeter Speaker
1. Install the tweeter speaker after connecting the tweeter speaker connector.
2. Install the front door delta cover.

Front Door Middle Speaker
1. Install the front door middle speaker on the door trim panel.
2. Install the front door trim panel.

Rear Door Tweeter Speaker
1. Install the tweeter speaker on the door trim garnish after connecting the tweeter speaker connector.
2. Install the door trim garnish on the door trim panel.
3. Install the door trim panel.

Crash Pad Center Speaker
1. Install the crash pad center speaker after connecting the connector.
2. Install the crash pad center speaker grill.

Sub Woofer Speaker
1. Install the sub woofer speaker after connecting the connector.
2. Install the rear package tray and rear seat assembly.

Surround Speaker
1. Install the surround speaker after connecting the connector.
2. Install the rear package tray and rear seat assembly.

External Amp
1. Install the external amp after connecting the connector.
2. Install the right trunk side trim.

Inspection

1. Troubleshooting for Speaker
(1) Basic inspection of speaker

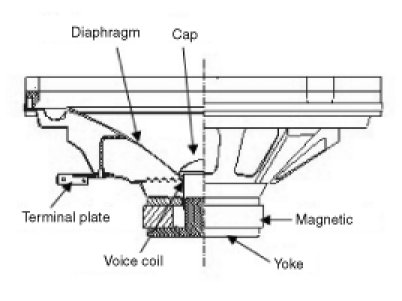

Inspect the sound from speaker after verifying that the speaker mounting screws are removed and the wiring connector is connected to remove any possible vibration transmitted from body trims and surrounding parts.

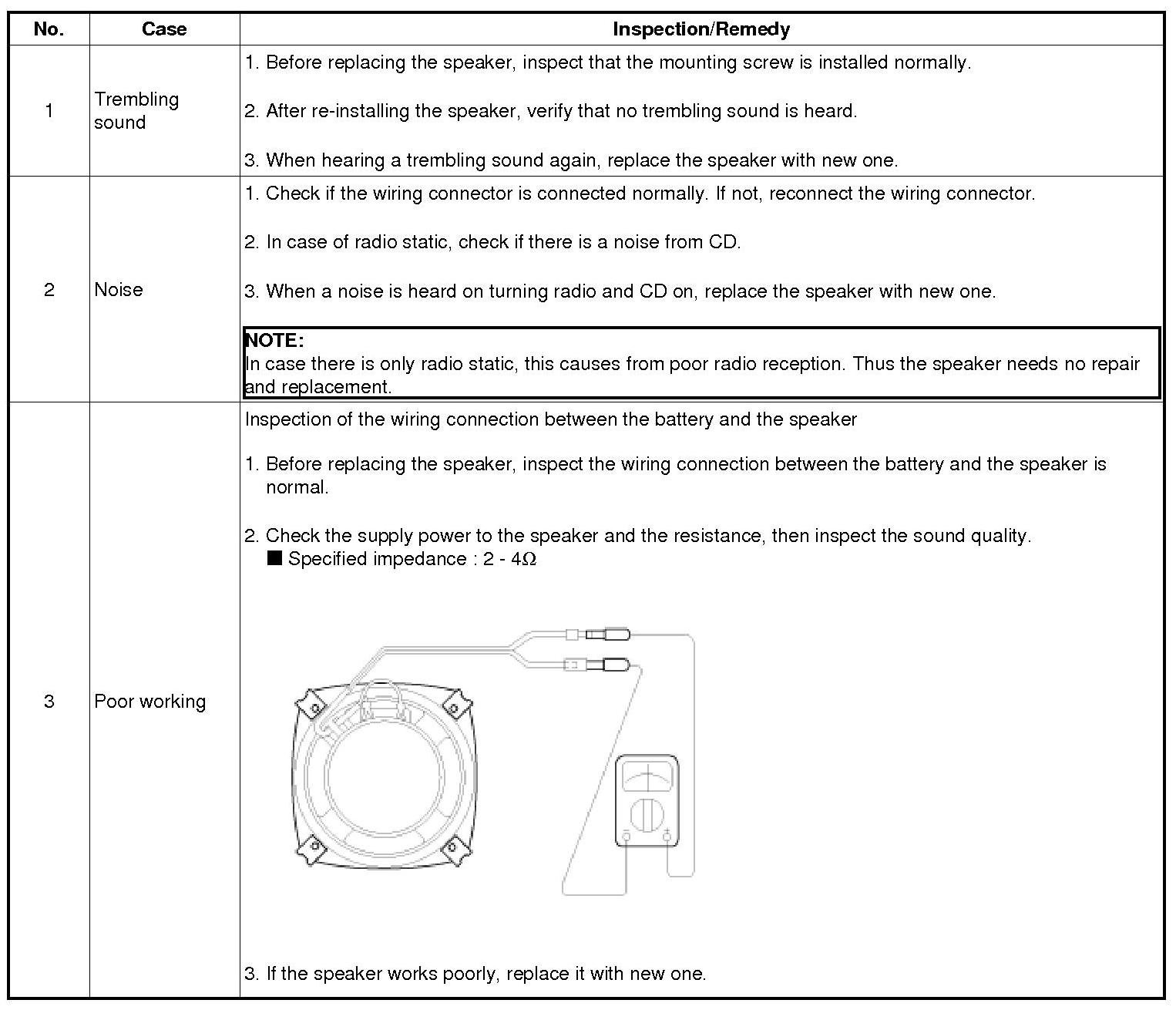

(2) Case Troubleshooting






CAUTION:
When handling the speakers:
- Do not damage the speaker with impact, like dropping or throwing it.
- Be careful not to drop water and oil on the speakers.
- Caution during handling of speaker because the material of diaphragm is paper which is easily torn by impact or external force.
- Modifying the audio system may cause damage the speakers. If this is the case, the speakers are not covered by the manufacturer's warranty.
