Fuel Door Release Actuator: Testing and Inspection

Inspection

1. Remove the trunk room left trim.
2. Open the fuel filler door and remove the housing.

NOTE:
Do not reuse the fuel filler door housing.

3. Remove the connector and bolts (2EA).

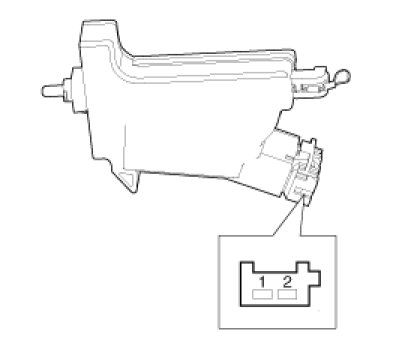

4. Check for continuity between terminal No.1 and No.2. If there is no continuity replace the fuel filler door opener.
