Diagram Set SD313 (MFI Control System)

ECM Terminal Information:

Full Circuit Diagrams:

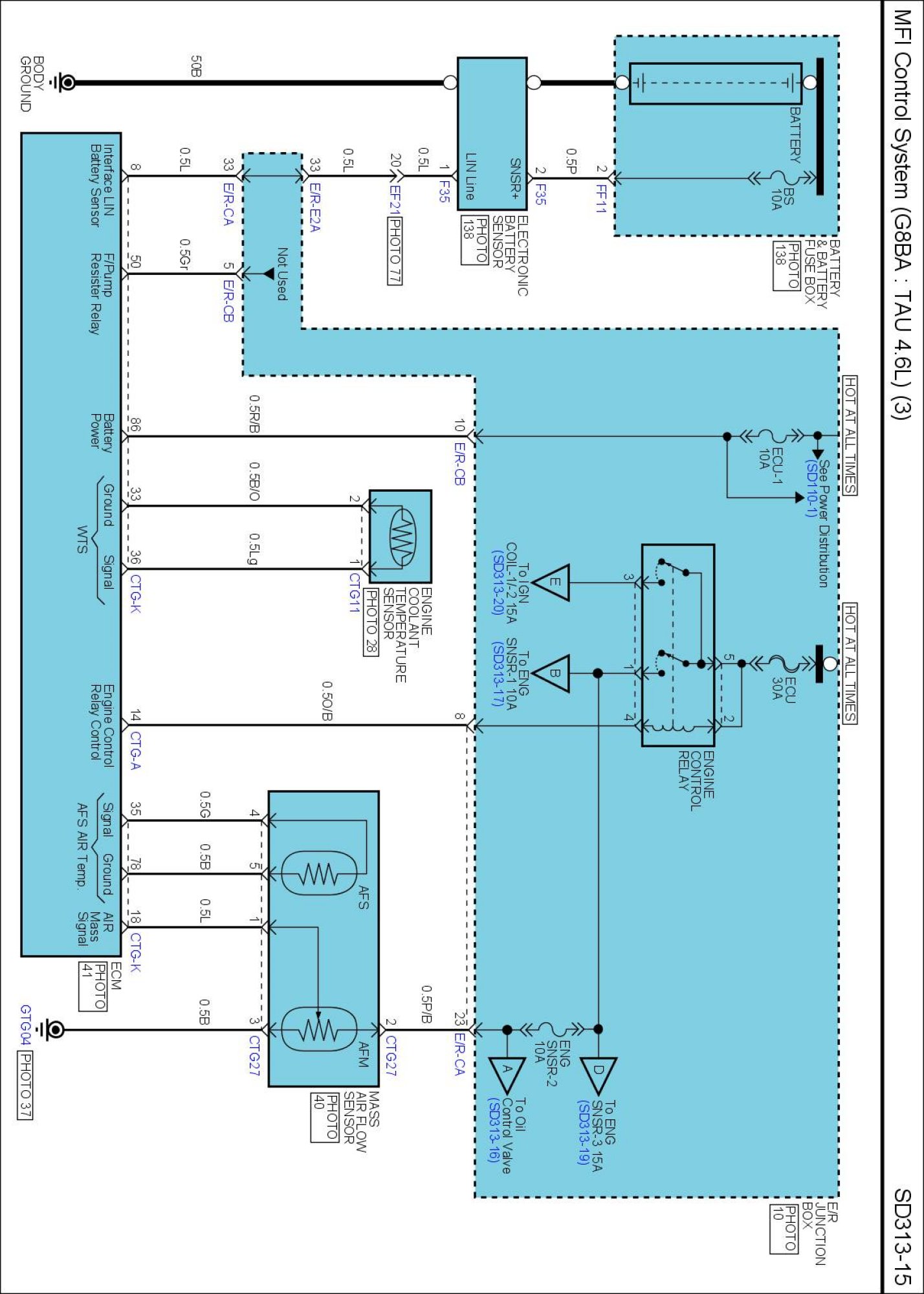

SD313-15 MFI Control System (15):

SD313-16 MFI Control System (16):

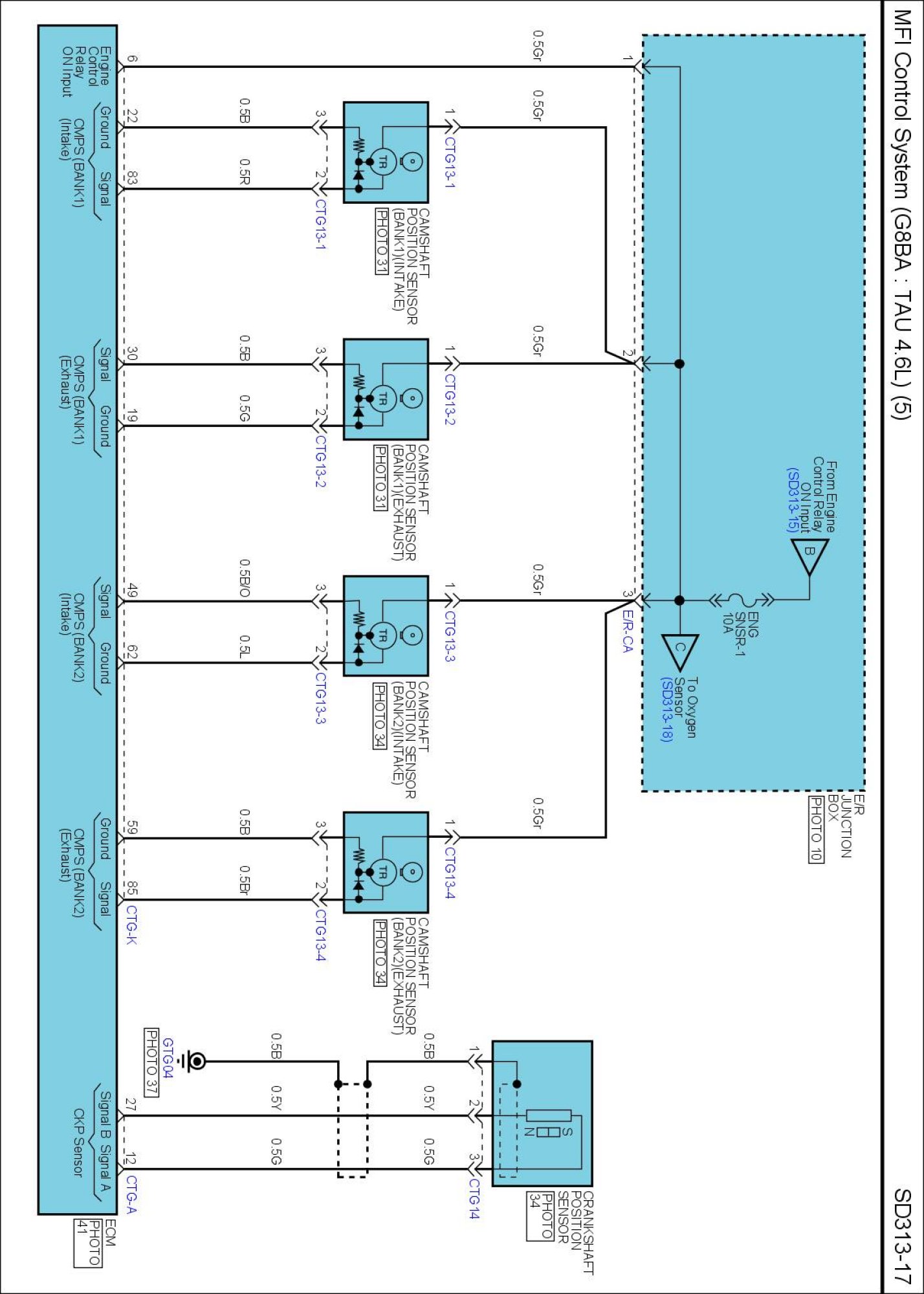

SD313-17 MFI Control System (17):

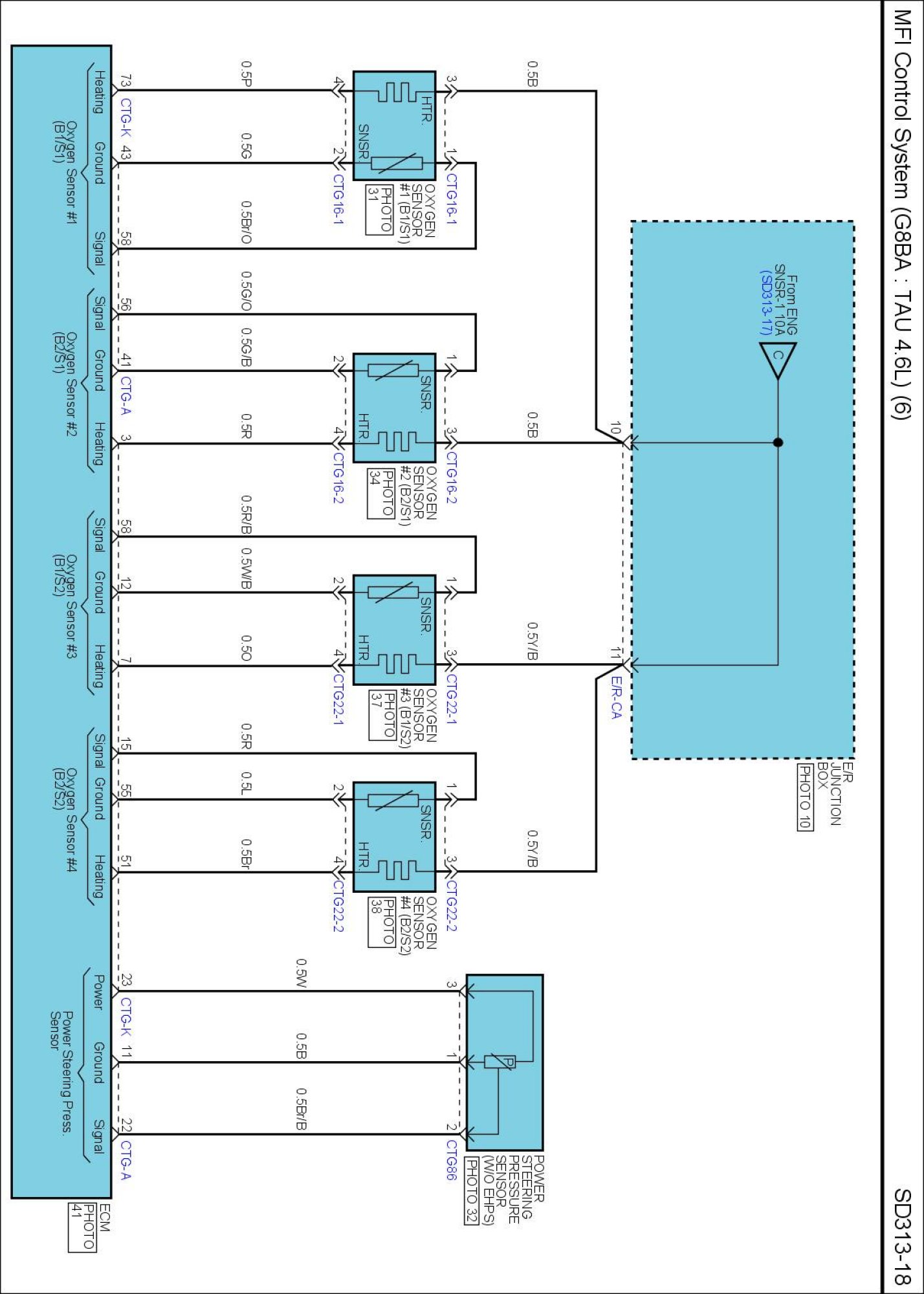

SD313-18 MFI Control System (18):

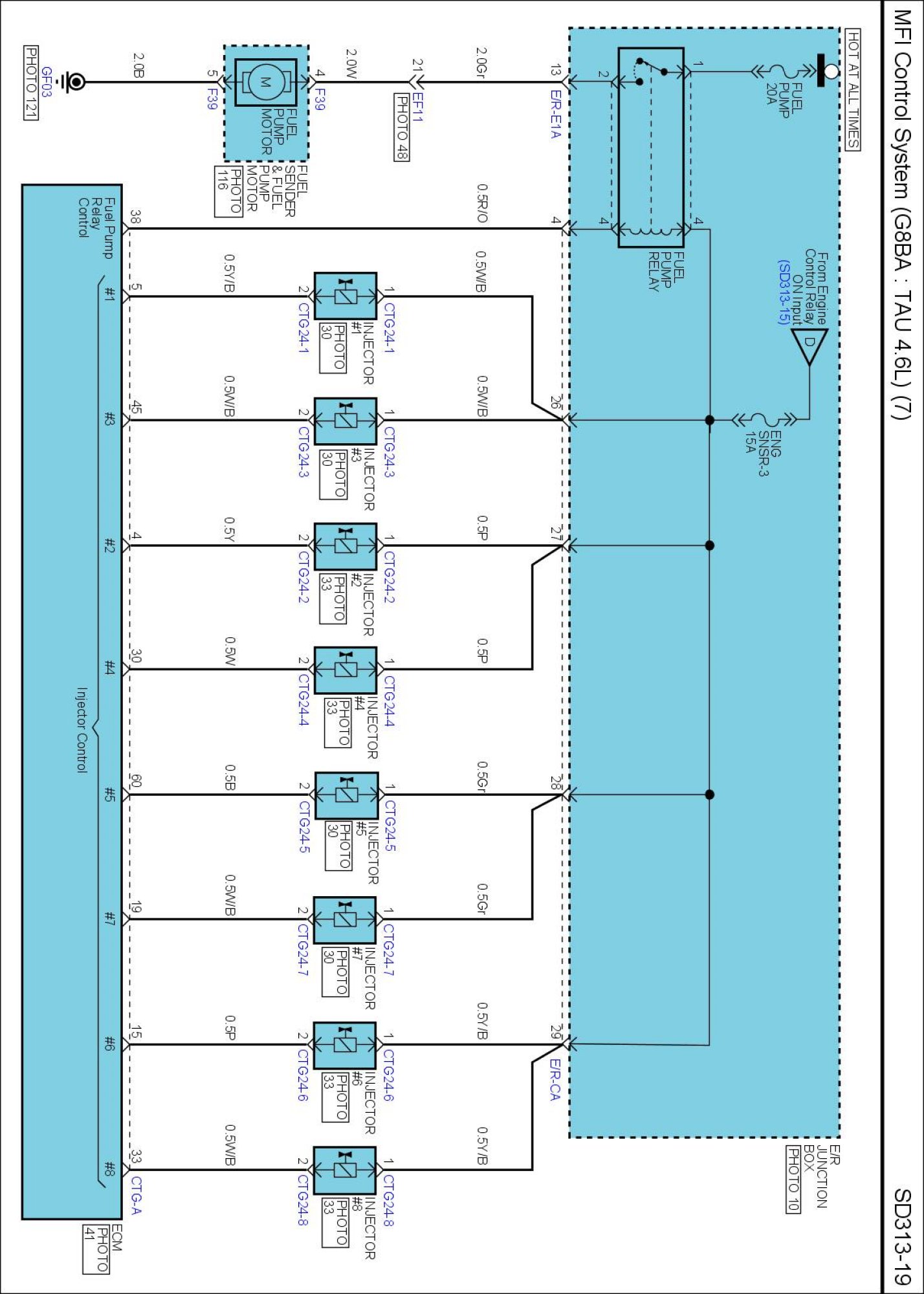

SD313-19 MFI Control System (19):

SD313-20 MFI Control System (20):

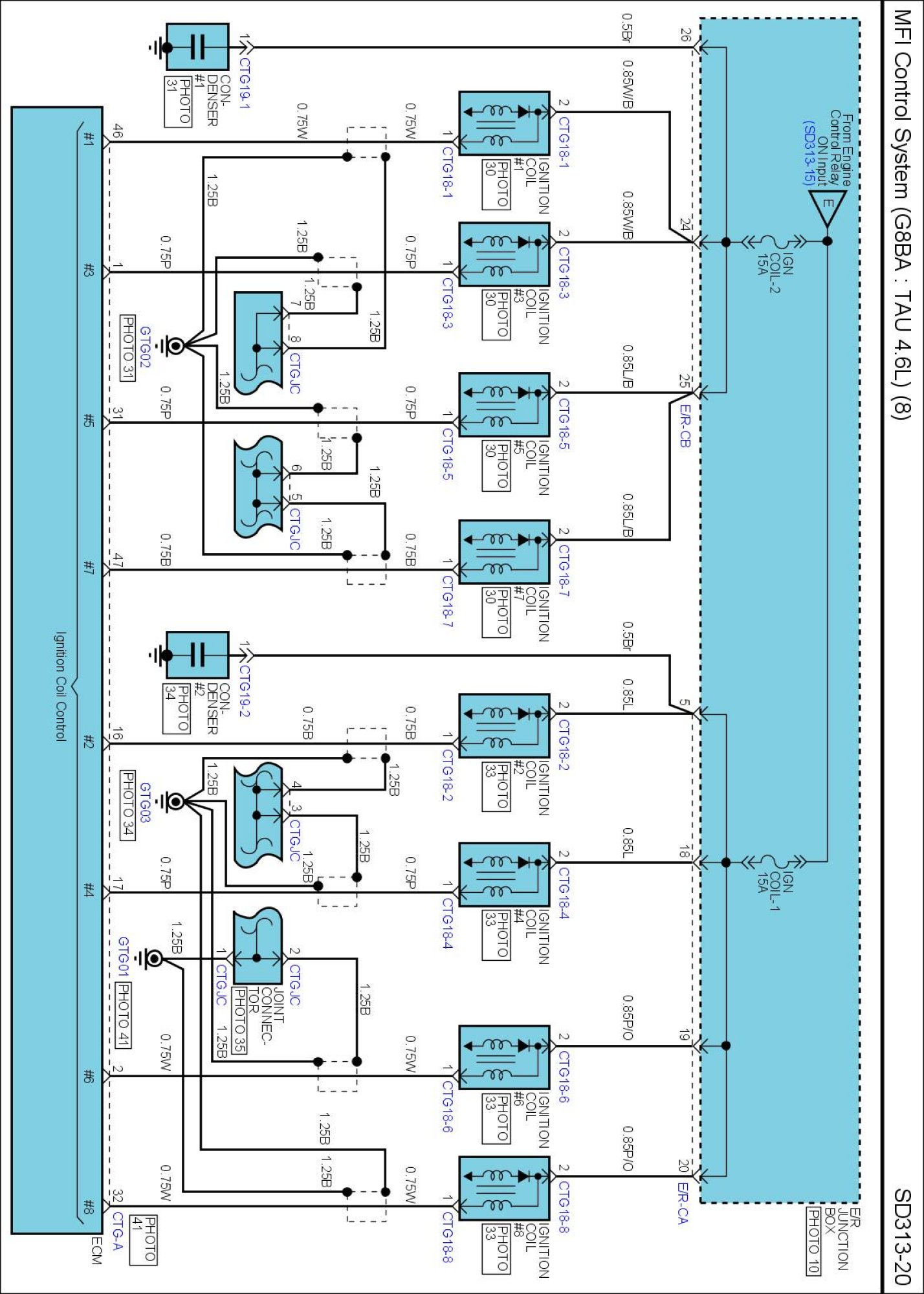

SD313-21 MFI Control System (21):

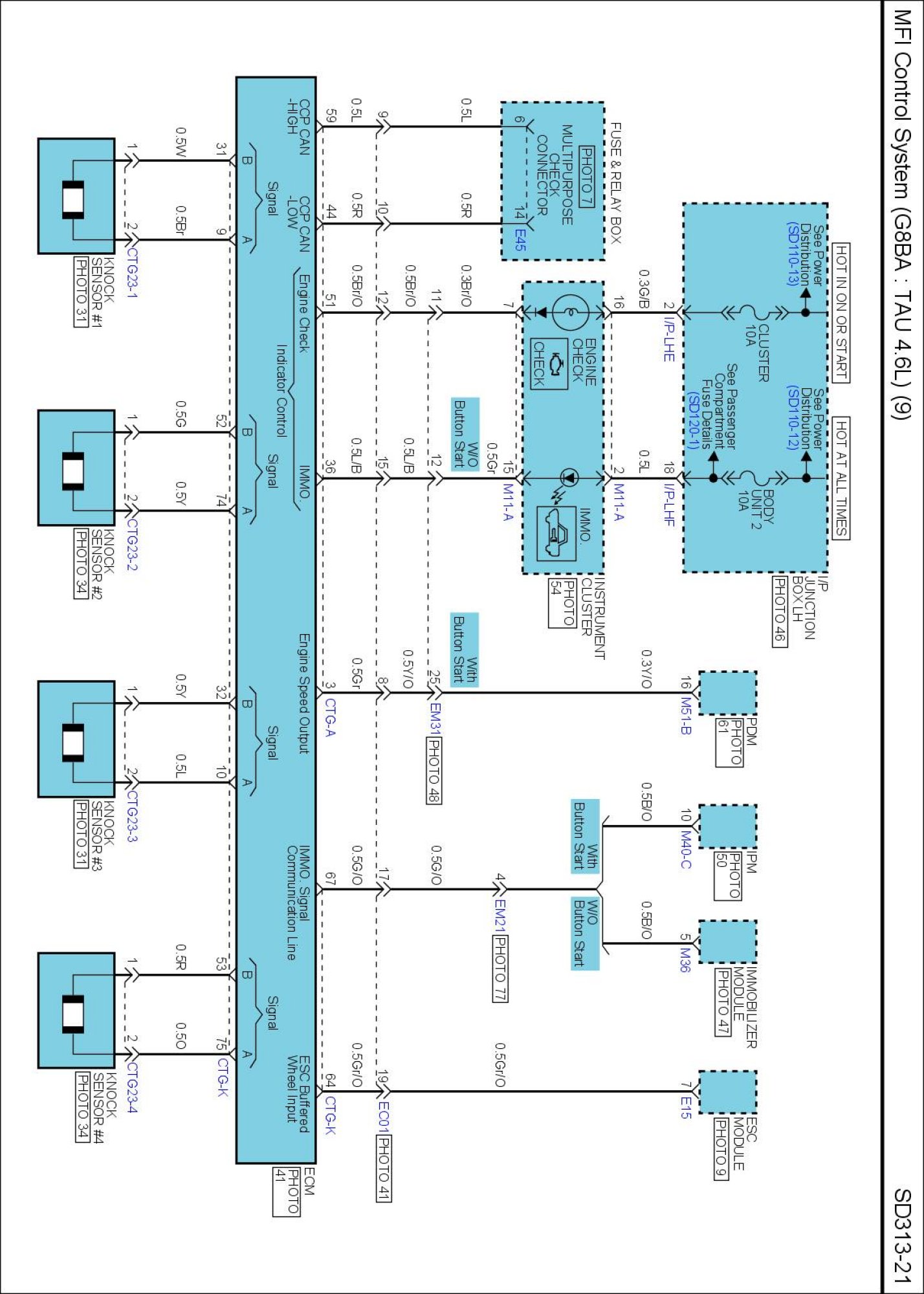

SD313-22 MFI Control System (22):

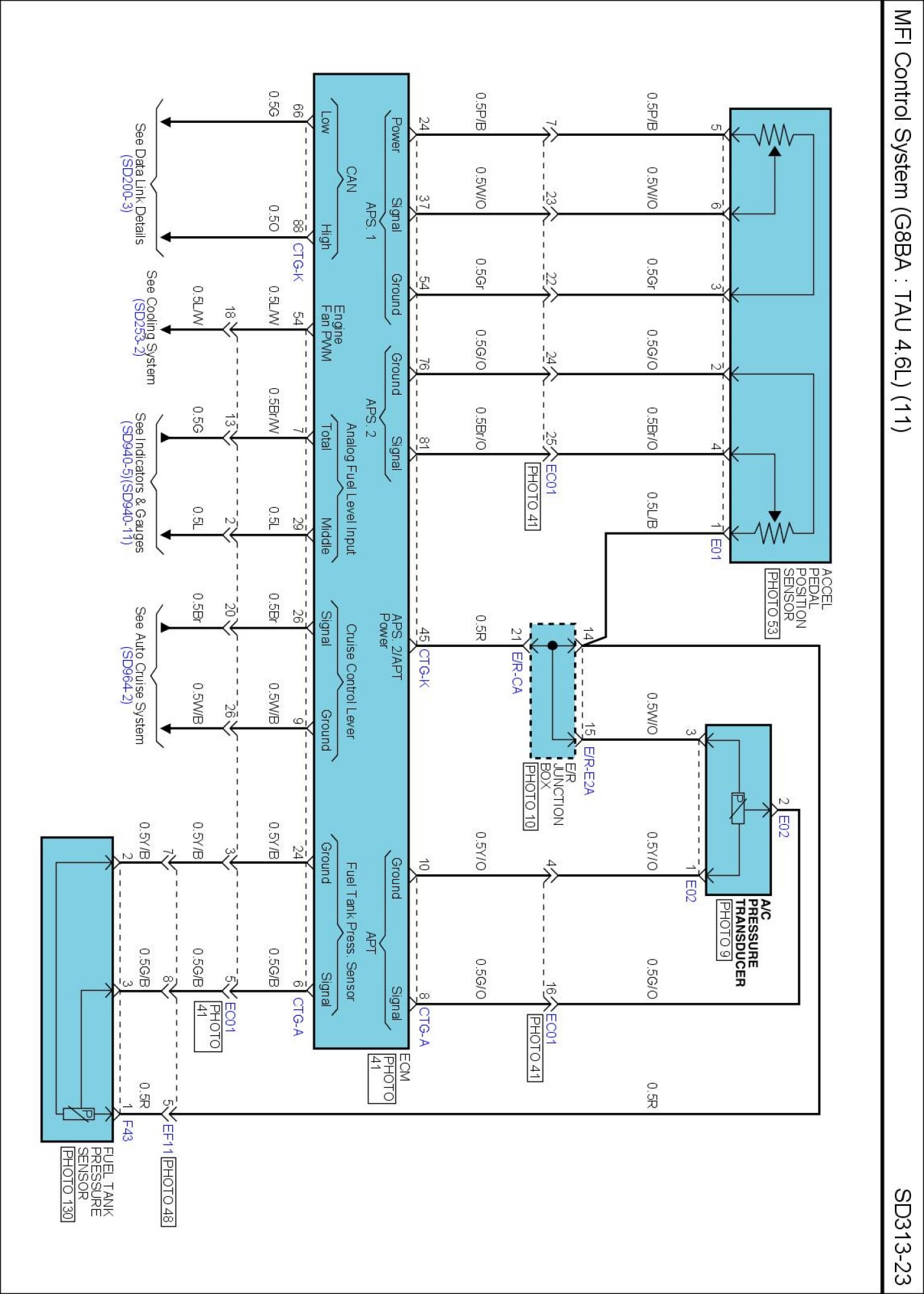

SD313-23 MFI Control System (23):
