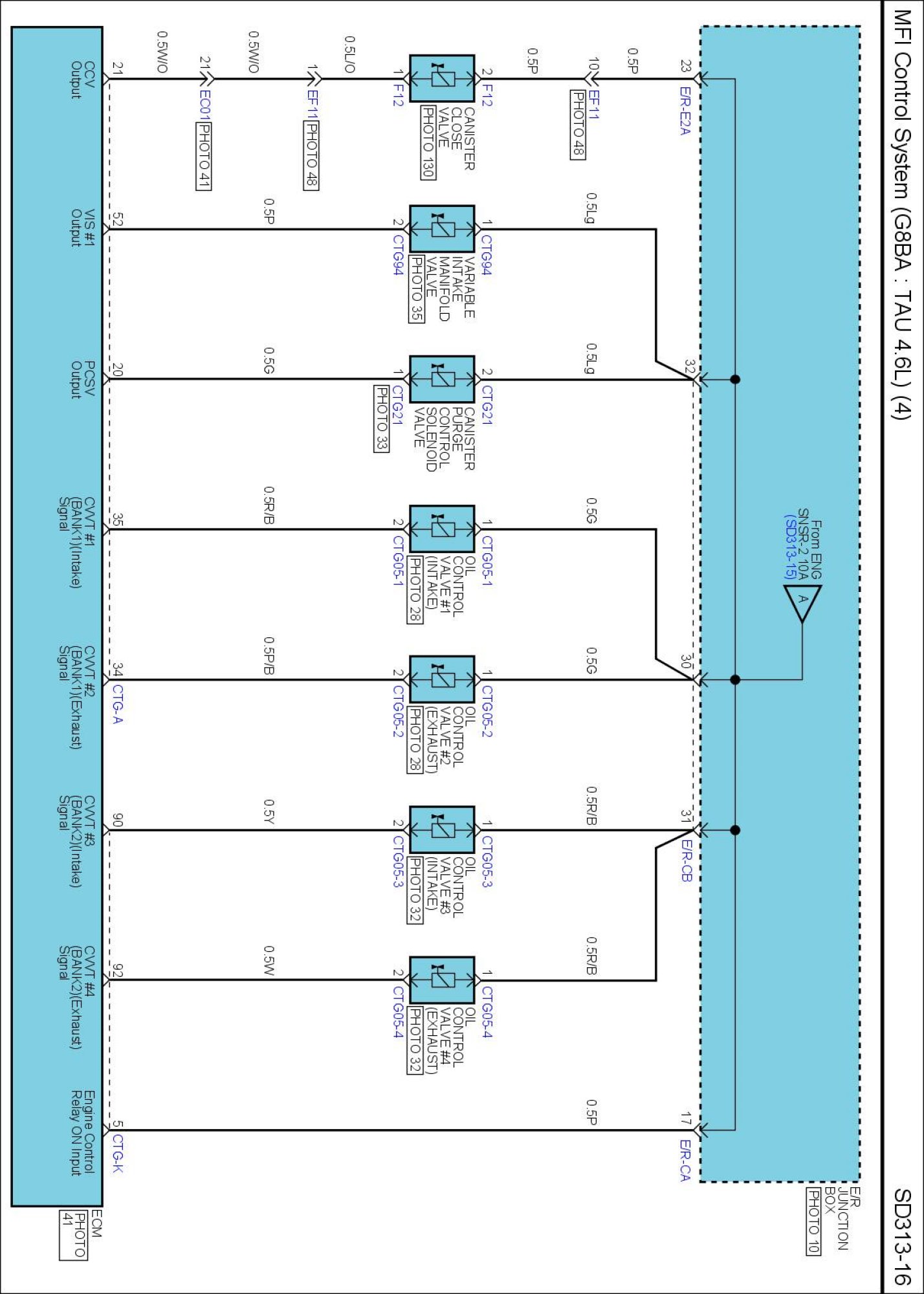

MFI Control System (4)

SD313-16 MFI Control System (16):

MFI Control System (24) Connector Pin Outs:

MFI Control System (25) Connector Pin Outs:

MFI Control System (26) Connector Pin Outs:
