Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2011
>>
Genesis Sedan V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
Window Shade
>>

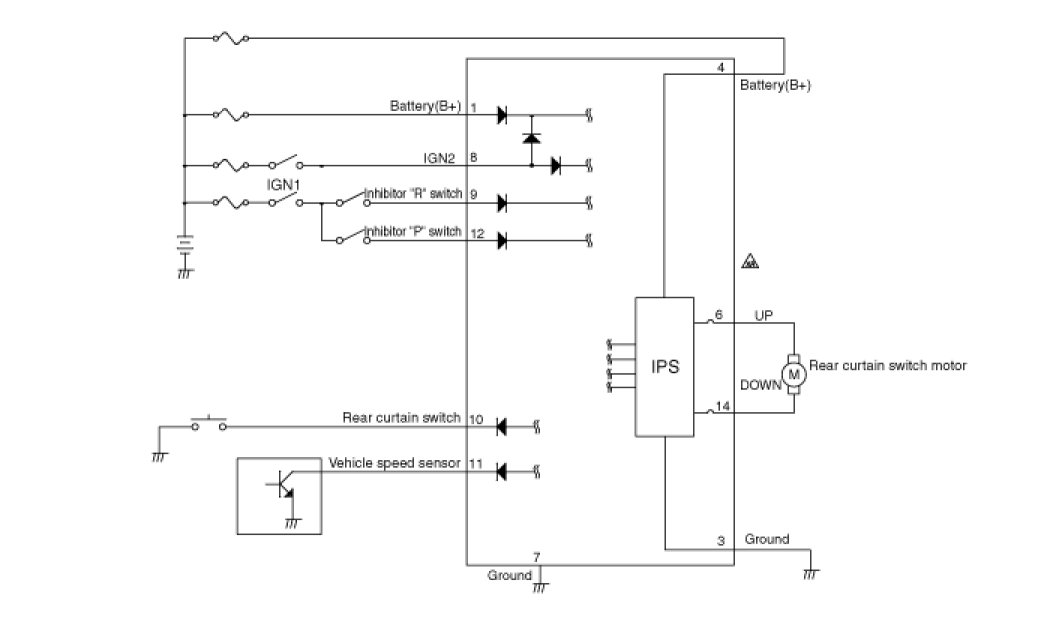

Circuit Diagram
Circuit Diagram
Circuit Diagram

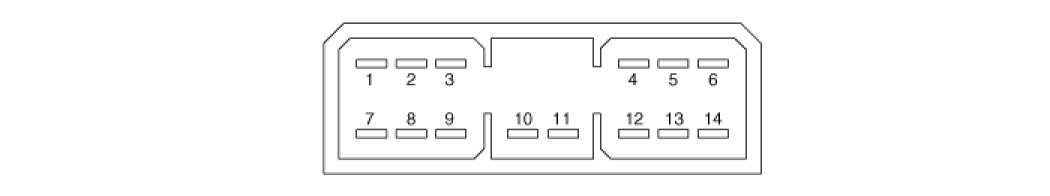

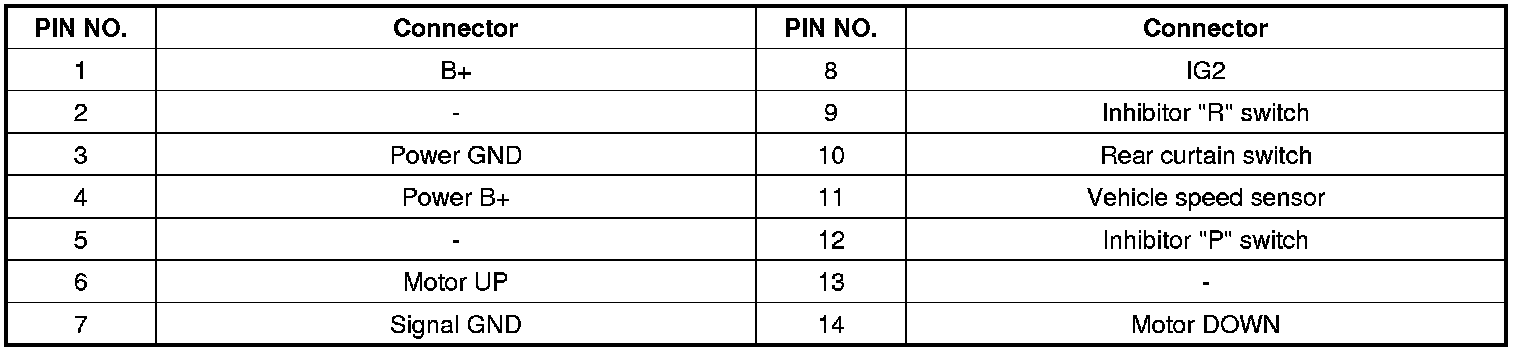

Rear Curtain Unit Connector
