Repair Procedures

Inspection

1. Ignition "OFF"
2. Disconnect the connector of console temp control actuator.

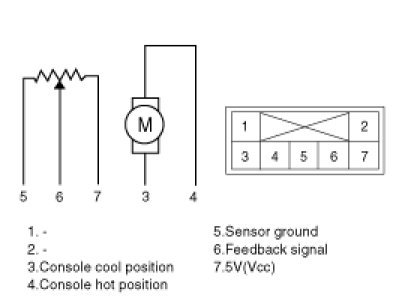

3. Verify that the console temp control actuator operates to the defrost mode when connecting 12V to the terminal 3 and grounding terminal 4.
4. Verify that the console temp control actuator operates to the vent mode when connecting in the reverse.




5. Check the voltage between terminals 5 and 6.





* It will feedback current position of actuator to controls.
6. If the measured voltage is not specification, substitute with a known-good console temp control actuator and check for proper operation.
7. If the problem is corrected, replace the mode control actuator.

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad side cover (A).




3. After loosening the crash pad lower panel mounting screws, then remove the lower panel (A).

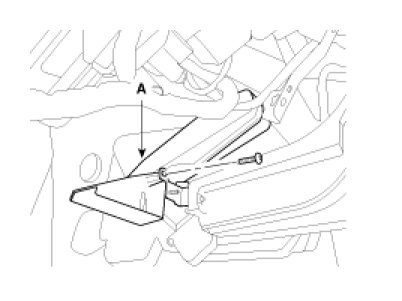

4. After loosening the mounting bolts, then remove the reinforcing panel (A).




5. Remove the shower duct(A).




6. Loosen the mounting screws and then remove the console temp control actuator (A).




7. Installation is the reverse order of removal.
