Timing Cover
Timing Cover

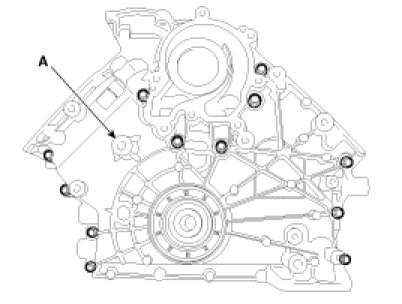

Install the timing chain lower cover (A).
Tightening torque 23.5 - 27.5 Nm (2.4 - 2.8 kgf.m, 17.4 - 20.3 lb-ft)
Install the timing chain upper cover (A).
Tightening torque 9.8 - 11.8 Nm (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
Timing Cover
Install the timing chain lower cover (A).
Tightening torque 23.5 - 27.5 Nm (2.4 - 2.8 kgf.m, 17.4 - 20.3 lb-ft)
Install the timing chain upper cover (A).
Tightening torque 9.8 - 11.8 Nm (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
