Home >> Hyundai >> 2011 >> Sonata L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> D22 Rear Power Window Switch LH

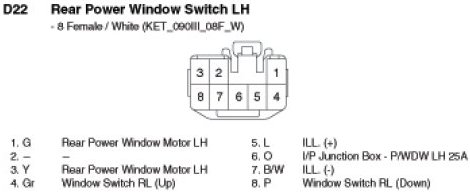

D22 Rear Power Window Switch LH

D22 Rear Power Window Switch LH:
